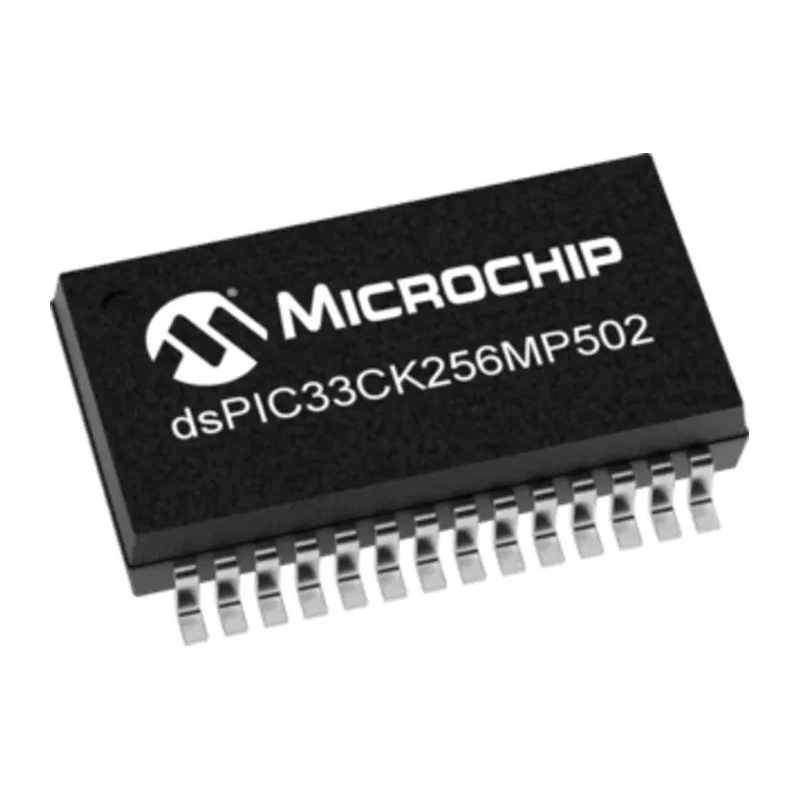

Microchip dsPIC Microprocessor dsPIC33CK256MP502-I/SS 16 bit MPU 100 MHz 28-Pin SSOP DSPIC33CK256MP502-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 10.5mm |
| Model | DSPIC33CK256MP502-I/SS |
| Mount Type | Surface |
| Series | dsPIC33CK256MP508 |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 3.6V |
| Device Core | dsPIC |
| Maximum Clock Frequency | 100MHz |
| Instruction Set Architecture | MPU |
Key Features
- Operates at a maximum clock frequency of 100 MHz for efficient processing.
- Features a 16-bit data bus width and MPU instruction set architecture.
- Includes 1 core and supports high-speed 8-channel PWMs with 250 ps resolution.
- Operates at a voltage of 3.6 V with surface mount type package.
- Designed to operate between -40°C and 85°C for robust temperature tolerance.
- Complies with RoHS and automotive AEC-Q100 standards ensuring quality and reliability.
- Provides advanced communication interfaces including UART, SPI/I2S, and CAN bus.
- Equipped with safety features like DMT, ECC, WDT, CRC, Code Guard, ICSP, MBIST, and fail-safe clock monitoring.
Product Description
Microchip DSPIC33CK256MP502-I/SS is a high-performance 16 bit microprocessor MPU operating at 100 MHz with a 28-pin SSOP form factor. It is part of the dsPIC33CK256MP508 series featuring a dsPIC device core and a 16-bit data bus designed for efficient motor control and embedded applications.
This microprocessor operates within a voltage range of 3.6 V and supports surface mount packaging making it suitable for compact PCB designs. It offers robust operating temperature tolerance from -40°C up to 85°C to operate reliably in diverse environments.
The microprocessor includes advanced features such as 8-channel high-speed PWMs with 250 ps resolution, communication interfaces including UART, SPI/I2S and CAN bus, and dual 40-bit fixed-point accumulators that enhance DSP operations. It is designed with fast 6 cycle divide capabilities, four DMA channels, and multiple sets of interrupt registers for rapid processing and responsiveness.
Safety and reliability are enhanced through integrated features like DMT, ECC, WDT, CRC, Code Guard, ICSP, MBIST, and fail-safe clock monitoring, ensuring stable operation in automotive and industrial applications. The device is compliant with RoHS and AEC-Q100 automotive standards.
This microprocessor is especially suited for high precision motor control applications including BLDC, PMSM, ACIM, SR, and stepper motors offering quieter operation and extended motor life. The product supports industrial, automotive, and embedded system use cases where efficient and precise control is critical.
Operates at 100 MHz clock frequency with 16-bit data width. Features high-speed PWM channels supporting fine resolution. Advanced DSP architecture with dual accumulators and fast divide. Multiple communication interfaces for flexible connectivity.
Wide operating temperature range and automotive grade certifications. Robust safety features for secure and reliable operation. Designed for precise and efficient motor control applications. Surface mount 28-pin SSOP package for compact PCB integration.
Explore more Microchip Microprocessors and embedded solutions at EnvMart for high quality, reliable semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC33CK256MP502-I/SS is 100 MHz, allowing for efficient processing capabilities.
This microprocessor operates within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
It uses a surface mount package with a 28-pin SSOP form factor, which is ideal for compact PCB designs.
This microprocessor features a single core, designed for efficient processing in motor control and embedded applications.
It includes advanced communication interfaces such as UART, SPI/I2S, and CAN bus for flexible connectivity options.
The dsPIC33CK256MP502-I/SS requires a minimum supply voltage of 3.6 V to operate effectively.
It is equipped with safety features such as DMT, ECC, WDT, CRC, Code Guard, ICSP, MBIST, and fail-safe clock monitoring.
This microprocessor features a 16-bit data bus width, which enhances its processing capabilities.
It complies with the AEC-Q100 automotive standard, ensuring its reliability for automotive applications.
The height of this microprocessor is 2 mm, contributing to its compact design.
The maximum operating temperature for the dsPIC33CK256MP502-I/SS is 85°C, allowing it to function in high-temperature environments.
It is part of the dsPIC33CK256MP508 series, which features a dsPIC device core designed for embedded applications.
