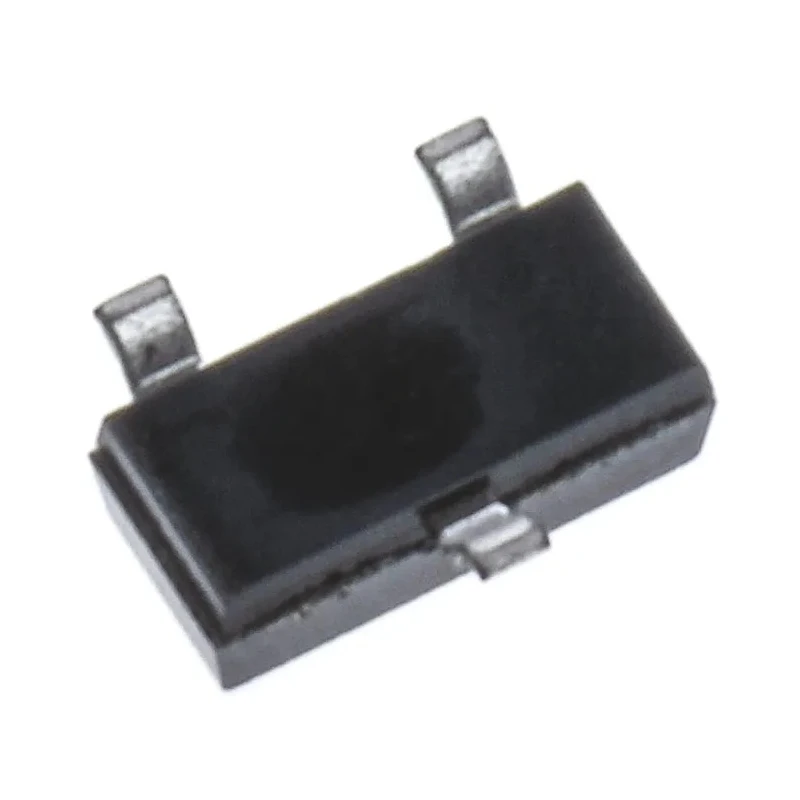

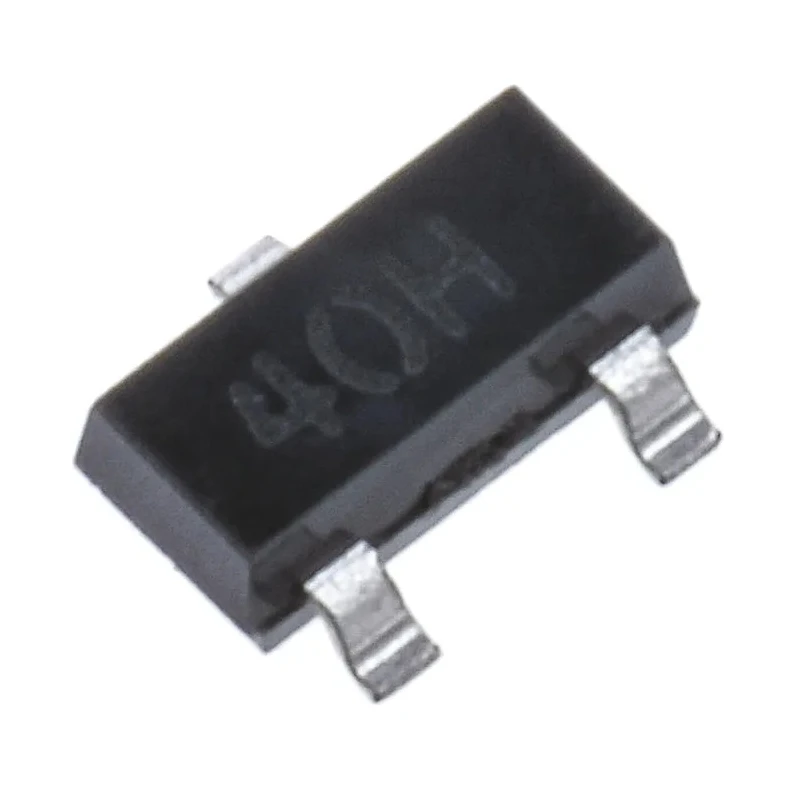

DiodesZetex Fixed Shunt Voltage Reference 4.1V ±1% Initial Accuracy 5mA Output Current 3-Pin SOT-23 ZRC400F01TA

DiodesZetex ZRC400F01TA is a fixed shunt voltage reference designed for precise voltage regulation in electronic circuits. It provides a stable reference voltage of 4.1 volts with an initial accuracy of ±1%, making it suitable for applications requiring high precision.

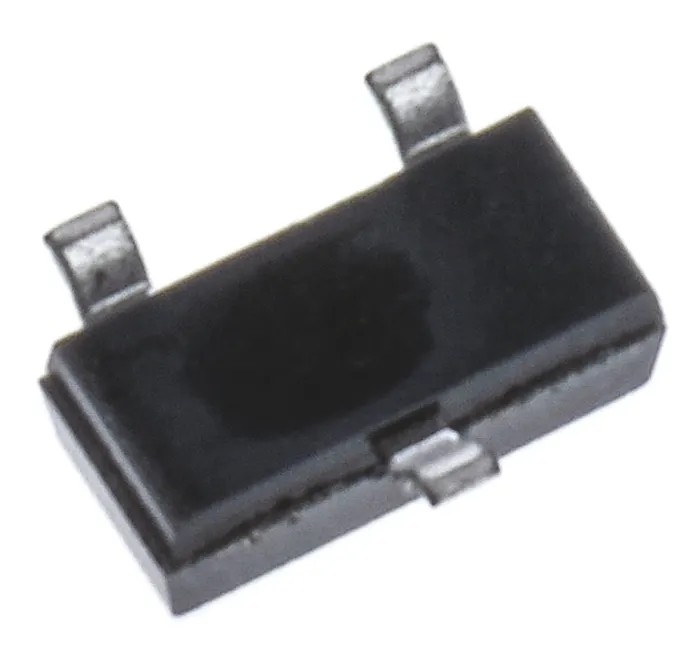

This device comes in a compact 3-pin SOT-23 surface-mount package, enabling integration into space-constrained PCB layouts. Its shunt topology allows an output current of up to 5 mA, supporting various power management and voltage reference needs in the industry.

Operating efficiently over a temperature range from -40°C to +85°C with a temperature coefficient of 30 ppm/°C, the ZRC400F01TA maintains voltage stability in demanding environments. The maximum input voltage rating of 4.14 volts and minimum input voltage of 4.06 volts confirm its suitability for low-voltage electronic designs.

Physical dimensions of 3.04 mm length and 1.02 mm height contribute to its compact design. Typical applications include precision voltage regulation in industrial, laboratory, electronic manufacturing, and power management systems.

Provides a stable reference voltage of 4.1 volts for accurate measurement and control. Features ±1% initial accuracy ensuring high precision in performance. Operates with a maximum input voltage of 4.14 volts suitable for low voltage applications.

Surface-mounted 3-pin SOT-23 package for compact PCB design. Shunt topology with output current rating of 5 mA supports various power management circuits. Wide temperature range from -40°C to +85°C for robust industrial and commercial use.

Temperature coefficient of 30 ppm/°C maintains voltage stability over temperature changes. Compact physical dimensions: 3.04 mm length, 1.02 mm height. Explore more DiodesZetex Voltage Reference components on EnvMart for your electronics projects and industrial applications.
