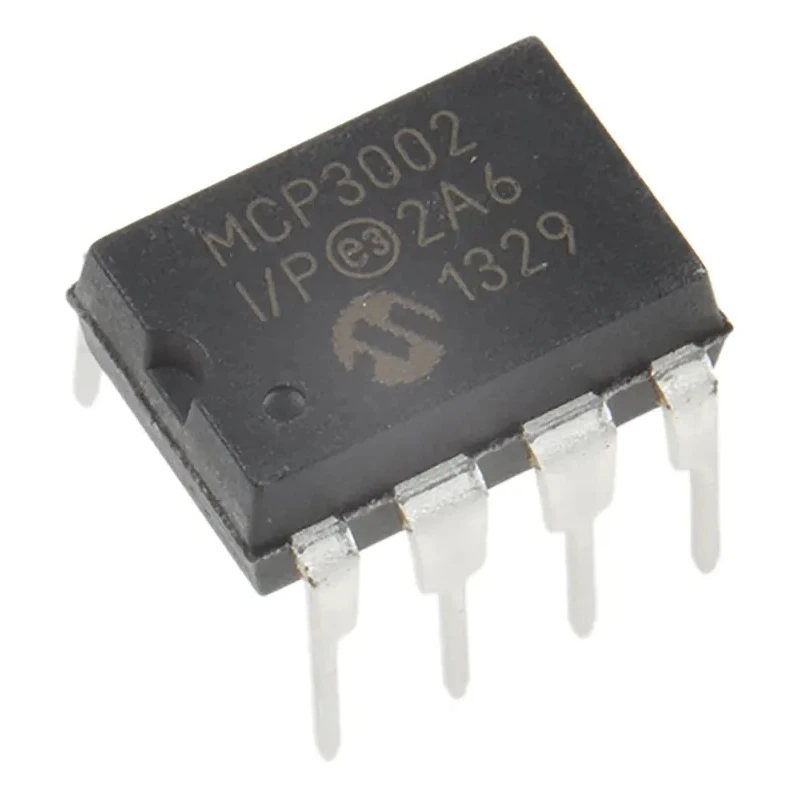

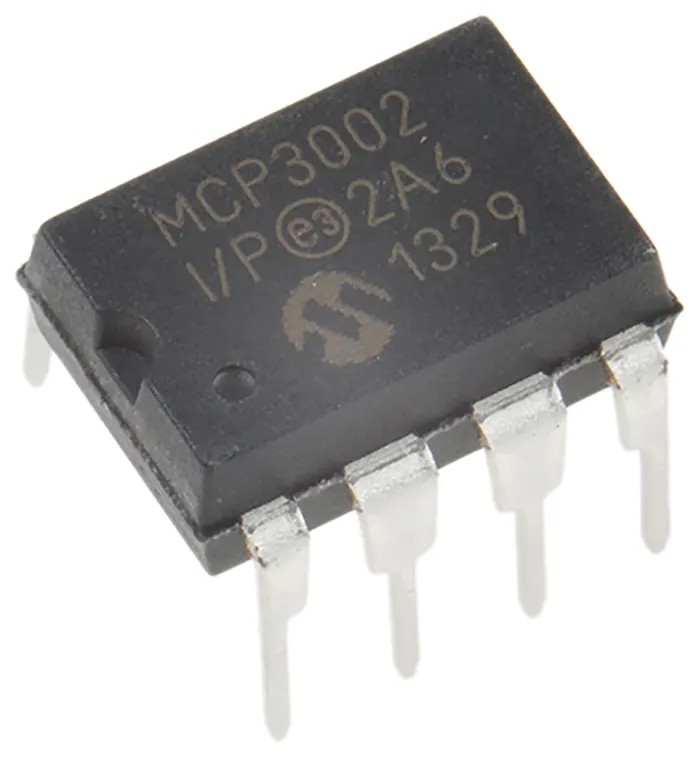

Microchip 2-Channel 10-bit SAR ADC 200 ksps 8-Pin PDIP MCP3002-I/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Microchip |
| Height | 9.14mm |
| Length | 10.16mm |
| Model | MCP3002-I/P |
| Mount Type | Through Hole |
| Sampling rate | 200ksps |
| Series | MCP3002 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 2 |
Key Features
- Utilizes successive approximation register (SAR) architecture for precise conversion.
- Offers two analog-to-digital converters (ADC) with 10-bit resolution.
- Operates with supply voltage ranging from 5 V to 5.5 V.
- Supports SPI interface for serial communication.
- Designed to function over industrial temperature range from -40°C to 85°C.
- Through-hole mounting style for easy PCB insertion.
- Complies with AEC-Q100 automotive standard ensuring high reliability.
- Packaged in an 8-pin PDIP form factor suitable for various electronic circuits.
Product Description
Microchip MCP3002-I/P is a high-performance 2-channel successive approximation register (SAR) 10-bit Analog-to-Digital Converter (ADC) designed for precise voltage input measurements. Featuring a sampling rate of 200 ksps, this ADC offers reliable and efficient conversion for various industrial and electronic applications.
Equipped with a Serial Peripheral Interface (SPI), it supports seamless integration into embedded systems and electronic devices. The device operates within a voltage supply range of 5 V to 5.5 V and functions effectively across a wide temperature range from -40°C to 85°C, making it suitable for automotive and industrial environments.
Packaged in an 8-pin Dual In-line Package (PDIP), the MCP3002-I/P enables through-hole mounting, simplifying assembly for prototyping and production. It adheres to the AEC-Q100 automotive standard, ensuring robust performance and reliability under demanding conditions.
This ADC is ideal for use in applications such as industrial instrumentation, automotive sensor interfacing, data acquisition systems, embedded electronics, and laboratory equipment requiring accurate analog voltage conversion.
Utilizes SAR architecture for accurate and fast analog-to-digital conversion. Includes two ADC channels with 10-bit resolution for precise measurements. Features SPI interface facilitating easy communication with microcontrollers.
Certified to AEC-Q100 automotive standard guaranteeing quality and durability. Suitable for through-hole mounting in 8-pin PDIP format for flexible PCB design. Operates reliably between -40°C and 85°C supporting harsh industrial environments.
Compact size with length 10.16 mm and height 9.14 mm for space-efficient designs.
Microchip products are widely used in industrial, automotive, communications, and consumer electronics sectors. Explore more Microchip semiconductor components and analog-to-digital converters in the EnvMart Electronics & Electricals category for your project needs.
Explore more products in our Analogue to Digital Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a resolution of 10 bits, allowing for precise voltage input measurements.
The MCP3002-I/P features a maximum sampling rate of 200 ksps, suitable for various applications.
It operates with a supply voltage ranging from 5 V to 5.5 V.
This ADC functions effectively over an industrial temperature range from -40°C to 85°C.
The MCP3002-I/P supports a Serial Peripheral Interface (SPI) for easy communication with microcontrollers.
This model includes two analog-to-digital converter (ADC) channels.
It is packaged in an 8-pin Dual In-line Package (PDIP), suitable for through-hole mounting.
The MCP3002-I/P has a height of 9.14 mm and a length of 10.16 mm.
Yes, it complies with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This ADC utilizes successive approximation register (SAR) architecture for accurate and efficient conversion.
The MCP3002-I/P accepts voltage as its input type, making it suitable for various measurement applications.
It features a through-hole mounting style, facilitating easy PCB insertion for assembly.
