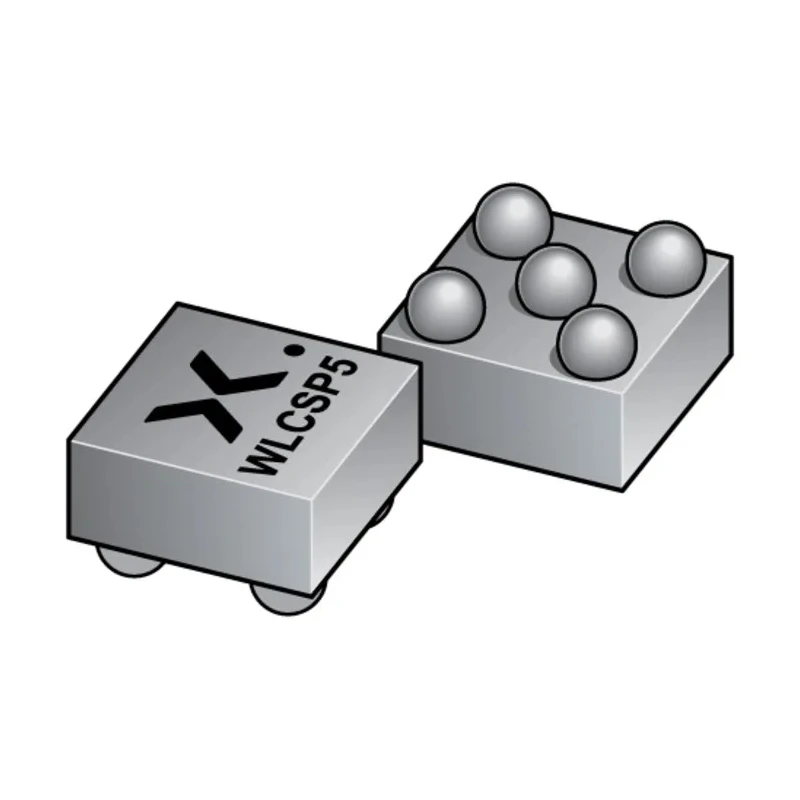

Nexperia 2-Element Uni-Directional ESD Protection Diode, 6V Breakdown, 5-Pin WLCSP PESD1USB3SZ

The Nexperia PESD1USB3SZ is a 2-element uni-directional ESD protection diode specially engineered for high-frequency differential interfaces and sensitive electronic circuits. This advanced device is housed in a compact 5-pin WLCSP surface mount package, providing superior ESD protection for USB ports, camera and display interfaces, and MIPI signals commonly found in portable devices. Its minimum breakdown voltage of 6 V ensures reliable suppression of ESD events while maintaining signal integrity.

At the heart of the PESD1USB3SZ are two integrated elements, which work together to deliver strong common-mode suppression (>14 dB) across RF bands from 500 MHz to greater than 8 GHz. This feature is critical for modern GSM, 3G, and LTE applications, where both high protection and clear signal transmission are necessary. The device's wide differential passband (>2 GHz) allows for fast and accurate communications without distortion, supporting LVDS, USB, and other high-speed data protocols.

Designed to withstand harsh environments, the diode is automotive qualified per AEC-Q101, and exceeds IEC 61000-4-2 standards, with ESD ruggedness surpassing 15 kV contact (well above the typical 8 kV test level). With a maximum peak pulse current capability of 8 A, the PESD1USB3SZ is well-suited for applications where robust ESD protection is required.

The thin form factor (maximum package height of 0.5 mm, length 1.22 mm, width 0.82 mm) makes it ideal for compact, densely populated circuit boards, such as those found in smartphones, tablets, wearables, and automotive electronic modules. Its low reverse leakage current (100 nA maximum) also ensures minimal power loss and effective protection without unnecessary drain on system resources.

The PESD1USB3SZ operates reliably in ambient temperatures from -40°C to 85°C, ensuring thermal stability for industrial, laboratory, and automotive environments. The surface-mount WLCSP package enables automated assembly and deployment for high-volume manufacturing.

Offers uni-directional ESD clamping and protection for sensitive logic and data lines. Enables strong common-mode suppression, safeguarding against high-frequency interference. Maintains high signal integrity with differential passbands for MIPI and LVDS applications.

Automotive qualified, suitable for advanced vehicular electronics. Conforms to IEC 61000-4-2, supporting industrial and laboratory usage. Low profile, ideal for mobile devices and compact PCBs. Reliably protects electronics in manufacturing, medical, and commercial equipment.

Simplifies PCB design and enhances device longevity with deep snap-back ESD protection.

Used across industrial manufacturing, electronics, telecommunications, automotive, laboratory equipment, and commercial portable devices where high ESD protection and signal fidelity are essential. Explore more ESD protection and TVS Diodes from Nexperia on the EnvMart platform to find the most suitable solutions for your next PCB design.
