| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.6mm |
| Length | 1.2mm |
| Model | ESD5Z3.3T1G |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | ESD5Z |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 689-9985PBrand: onsemiManufacturers Part No.: ESD5Z3.3T1G |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 14.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 11.2A |
| Maximum Reverse Leakage Current | 50nA |

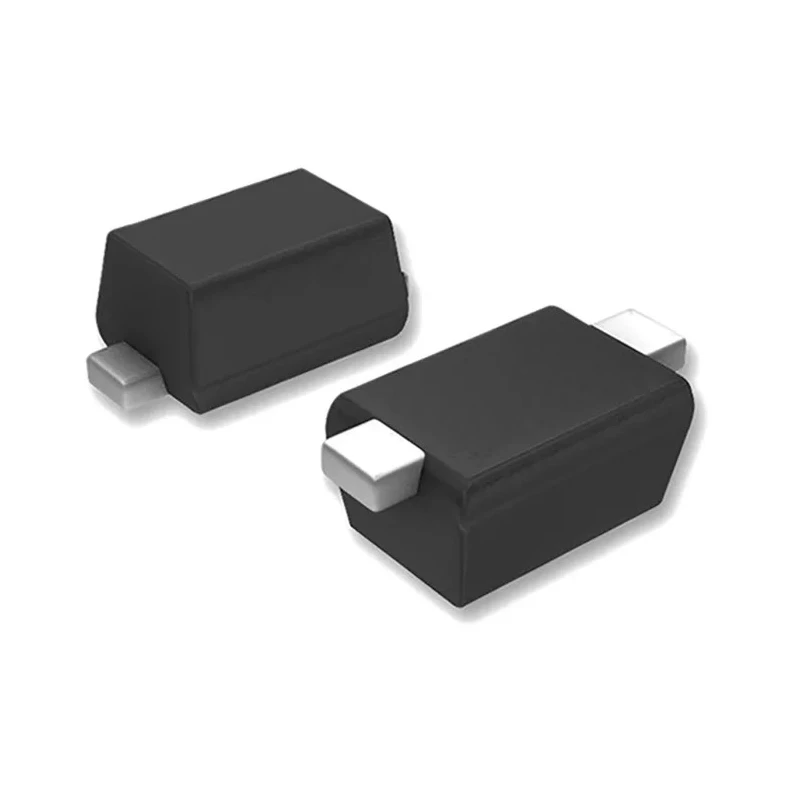

onsemi ESD5Z3.3T1G Uni-Directional TVS Diode is a surface mount transient voltage suppressor designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage events. This device delivers a peak pulse power dissipation of 200 W in a compact SOD-523 package with a diode configuration of a single, uni-directional element, optimized for high efficiency and space-saving on printed circuit boards.
Featuring a minimum breakdown voltage (Vbr) of 5 V and a maximum reverse stand-off voltage (Vwm) of 3.3 V, the diode clamps transient voltages at a maximum of 14.1 V, thereby safeguarding circuits against voltage spikes. The small form factor of 1.2 mm length, 0.8 mm width, and 0.6 mm height makes it ideal for space-constrained applications including portable devices, cellular phones, digital cameras, and power supply systems.
The component operates reliably over a wide temperature range from -55°C to 150°C and meets the automotive industry standard AEC-Q101, ensuring suitability for automotive electronics. The diode exhibits a fast response time, low leakage current of 50 nA, and a maximum peak pulse current (Ippm) of 11.2 A, making it well-suited for protecting delicate semiconductors in harsh electrical environments.
This product offers a robust solution for industrial and commercial applications requiring effective ESD and transient voltage protection. Its compliance with IEC61000-4-2 Level 4 and IEC61000-4-4 Level 4 standards underlines its capability to endure high-level electrostatic and electrical fast transient disturbances.
Single element, uni-directional diode optimized for ESD protection. Compact SOD-523 surface mount package reduces PCB footprint. High peak pulse power dissipation rating of 200 W. Clamping voltage at 14.1 V to protect sensitive components.
Wide operating temperature range from -55°C to 150°C. Low leakage current and fast response for efficient suppression. Automotive certified with AEC-Q101 standard for reliability. Ideal for portable electronics, cellular phones, digital cameras, and power supplies.
Discover more industrial-grade semiconductors and TVS Diodes at EnvMart for your electronics manufacturing and protection needs.
Interested in this product? Drop us an email and we will let you know when it's available for order.
