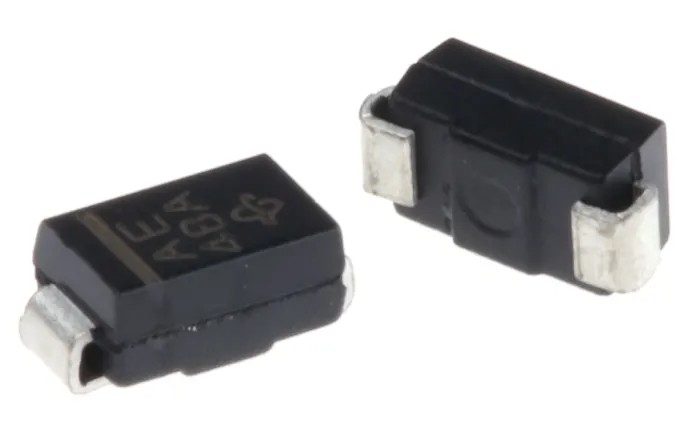

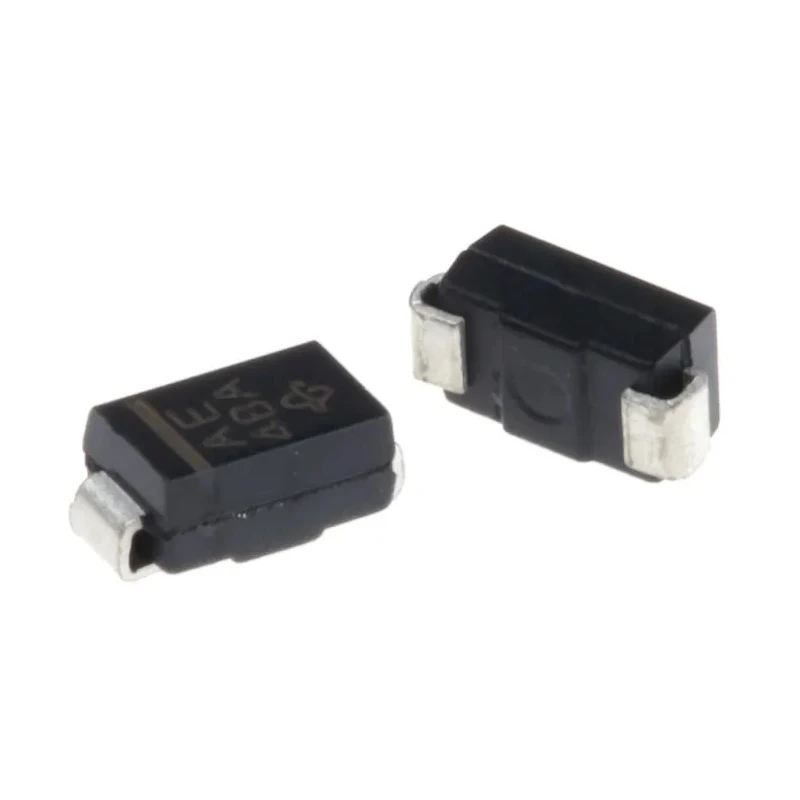

Vishay 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 SMAJ5.0A-E3/5A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SMAJ5.0A-E3/5A |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-3484P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: SMAJ5.0A-E3/5A |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 43.5A |
| Maximum Reverse Leakage Current | 800μA |
Key Features
- Provides transient voltage suppression for protection of electronic circuits.
- Uni-directional diode configuration ensures single polarity protection.
- Minimum breakdown voltage of 6.4 volts with maximum reverse stand-off voltage of 5 volts.
- Capable of handling maximum peak pulse current of 43.5 amperes and clamp voltage of 9.2 volts.
- Operates reliably in temperature ranges from -55°C to +150°C.
- Complies with automotive standard AEC-Q101 ensuring quality in harsh environments.
- Compact dimensions with 4.5 mm length, 2.79 mm width, and 2.09 mm height for space-saving PCB mounting.
- ESD protection with low maximum reverse leakage current of 800 microamperes.
Product Description
Vishay SMAJ5.0A-E3/5A is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) Diode designed to protect sensitive electronic components from voltage spikes and transient surges. Featuring a peak pulse power dissipation rating of 400 watts, it efficiently clamps transient voltages to safeguard circuits.
This TVS diode utilizes a uni-directional diode configuration housed in a surface mount DO-214 package with two pins, facilitating compact and reliable PCB assembly. Its low maximum reverse stand-off voltage of 5 volts and minimum breakdown voltage of 6.4 volts ensure fast response times against surge events.
With a maximum peak pulse current of 43.5 amperes and a clamp voltage of 9.2 volts, this device provides robust protection for power and signal lines. It operates safely within a broad temperature range from -55°C up to 150°C, conforming to automotive AEC-Q101 standards for durability in demanding environments.
Dimensions of 4.5 mm length, 2.79 mm width, and 2.09 mm height make the diode suitable for space-constrained applications. It offers electrostatic discharge (ESD) protection with minimal leakage current of 800 microamperes, enhancing system reliability.
Applications include transient suppression in industrial electronics, automotive circuits, power supplies, telecommunications, and other mission-critical devices requiring transient voltage protection.
Provides transient voltage suppression for protection of electronic circuits. Uni-directional diode configuration ensures single polarity protection. Minimum breakdown voltage of 6.4 volts with maximum reverse stand-off voltage of 5 volts.
Capable of handling maximum peak pulse current of 43.5 amperes and clamp voltage of 9.2 volts. Operates reliably in temperature ranges from -55°C to +150°C. Complies with automotive standard AEC-Q101 ensuring quality in harsh environments.
Compact dimensions with 4.5 mm length, 2.79 mm width, and 2.09 mm height for space-saving PCB mounting. ESD protection with low maximum reverse leakage current of 800 microamperes. Ideal for industrial, automotive, and electronic power circuit protection applications.
This Vishay TVS diode is part of the TRANSZORB SMAJ series, widely used for its proven reliability in power transient suppression. Explore more in the TVS Diodes category or browse Vishay brand products to find suitable complementary components for your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 400 watts.
The minimum breakdown voltage is 6.4 volts.
It can handle a maximum peak pulse current of 43.5 amperes.
The dimensions are 4.5 mm in length, 2.79 mm in width, and 2.09 mm in height.
It operates reliably in temperature ranges from -55°C to +150°C.
This device uses a uni-directional diode configuration.
The clamping voltage is 9.2 volts.
It complies with the automotive standard AEC-Q101.
This model supports surface mounting.
It is suitable for transient suppression in industrial electronics, automotive circuits, power supplies, and telecommunications.
