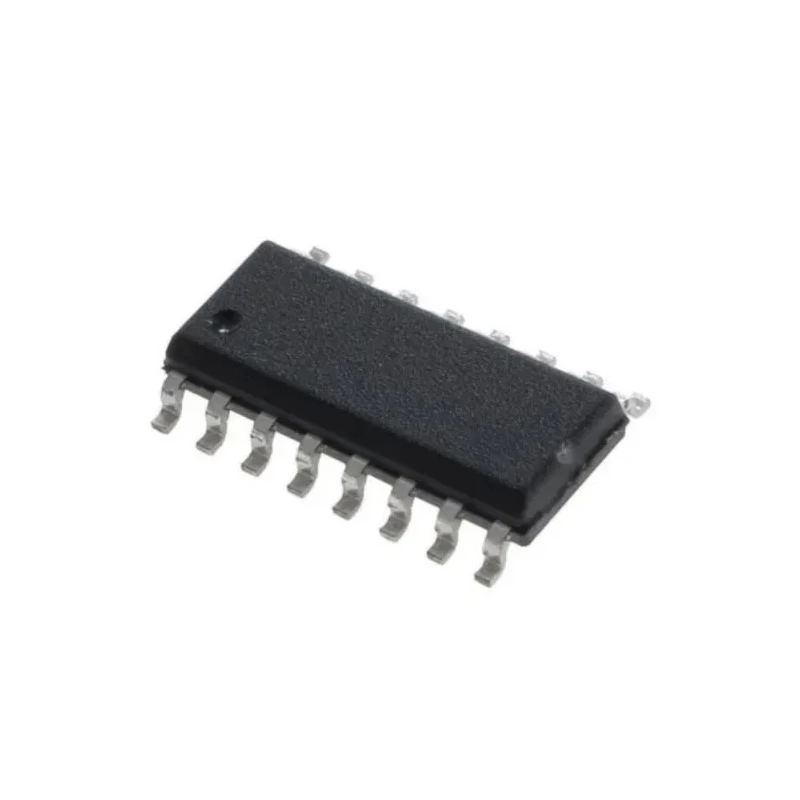

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG411DY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG411DY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG411 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
Key Features
- Operates over a supply voltage range of 5V to 44V.
- Has a maximum on-state resistance of 100 ohms enabling low voltage drop switching.
- Compatible with CMOS and TTL logic control inputs.
- Supports operating temperatures from -40°C to 85°C for extended environmental use.
- Compact surface-mount SOIC package measures 10mm length, 4mm width, and 1.55mm height.
- Ideal for multiplexing analogue sensor signals and audio-path selection.
- Commonly used in instrumentation, test equipment, and industrial control signal switching.
- RoHS compliant ensuring restricted substance requirements for soldered assemblies.
Product Description
Vishay DG411DY-T1-E3 analogue switch is a reliable CMOS quad SPST device with four independent switching channels in a compact 16-pin SOIC surface-mount package. It operates over a wide supply voltage from 5V minimum to 44V maximum, providing low on-state resistance of 100 ohms which allows efficient low voltage-drop signal routing. The device supports a broad temperature range from -40°C to 85°C making it suitable for harsh industrial environments.
The switch’s control inputs are CMOS and TTL compatible, facilitating easy interfacing with a range of digital and analogue systems without additional level translation. The small footprint and SOIC mounting option enable space-saving PCB designs with reflow solder compatibility.
This analogue switch is ideal for multiplexing analogue sensor signals in laboratory instrumentation and consumer electronics audio-path selection. It also finds application in test equipment for channel isolation and routing, plus power-rail tolerant signal switching in various industrial control systems, showcasing its wide utility.
Key features include four independent single-pole single-throw (SPST) channels, compact form factor measuring 10mm x 4mm x 1.55mm, and operational stability across a wide temperature and voltage range. Its RoHS compliance confirms it meets environmental standards for electronic components.
Operates from 5V to 44V supply voltage. Maximum on-state resistance of 100 ohms. CMOS and TTL logic level compatible control inputs. Temperature range from -40°C to 85°C. 16-pin SOIC surface-mount package. Wide industrial and consumer electronics applications.
RoHS-compliant for restricted substances.
This Vishay DG411DY-T1-E3 analogue switch is a dependable component in semiconductor-based electronic designs. Explore more in semiconductor Analogue Switches and related Vishay products on EnvMart for various industrial, laboratory, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range from 5V to 44V.
The maximum on-state resistance is 100 ohms, which allows for low voltage drop switching.
It is compatible with CMOS and TTL logic control inputs, facilitating easy interfacing with various systems.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
This model has a compact surface-mount package measuring 10mm in length, 4mm in width, and 1.55mm in height.
It features four independent single-pole single-throw (SPST) channels.
It comes in a 16-pin SOIC surface-mount package.
It is commonly used for multiplexing analogue sensor signals, audio-path selection, and in instrumentation and test equipment.
Yes, it is RoHS compliant, ensuring it meets environmental standards for restricted substances.
The configuration is Quad SPST, allowing for multiple independent switching operations.
The logic family of the DG411DY-T1-E3 is CMOS.
The country of origin for this product is India.
