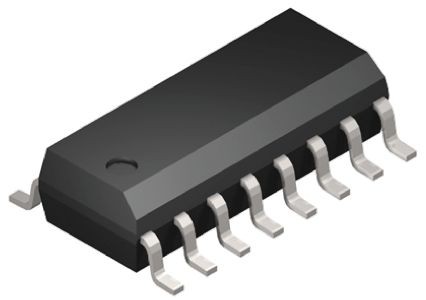

Maxim Integrated DG211DY+ Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG211DY+

Maxim Integrated DG211DY+ analogue switch is a 4 CMOS quad SPST type device designed for surface mount applications. It features CMOS logic family technology to deliver low power consumption and high switching efficiency.

Housed in a compact 16-pin SOIC package with dimensions of 10mm length, 4mm width, and 1.5mm height, this device supports a wide operating voltage range from 4.5V to 18V and functions reliably across a temperature span from -40°C to 85°C.

The DG211DY+ has a maximum on state resistance of 250 ohms, ensuring minimal signal loss when active. It outputs compatible CMOS/TTL signals and integrates four independent single-pole, single-throw switches in a quad configuration, suitable for a wide range of electronic switching applications.

This product complies with RoHS standards and is manufactured in Malaysia, ensuring environmental and quality compliance. Its compact design and versatility make it highly suitable for industrial, semiconductor, electronics manufacturing, and laboratory instrumentation assemblies.

Industrial use cases include signal switching, multiplexing, and analog signal routing in electronic devices requiring reliable, low-power CMOS switches. This analogue switch features a CMOS logic family design ensuring low power consumption.

It has 16 pins suitable for surface mount applications. The device operates with a minimum supply voltage of 4.5V up to a maximum of 18V. The maximum on state resistance is 250 ohms, providing efficient switching performance.

Operating temperature range spans from -40°C to 85°C for reliable use in diverse environments. The switch package type is SOIC with compact dimensions of 10mm length, 4mm width, and 1.5mm height. The device outputs are compatible with CMOS/TTL signaling standards.

The configuration provides four single-pole, single-throw (SPST) switches in a quad arrangement. It is RoHS compliant and manufactured in Malaysia ensuring quality and regulatory adherence. This chip is ideal for industrial, electronic component, and logic IC assembly applications in semiconductor designs.
