STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC214IYCT

Free Delivery in India | Lowest Global Shipping Charges

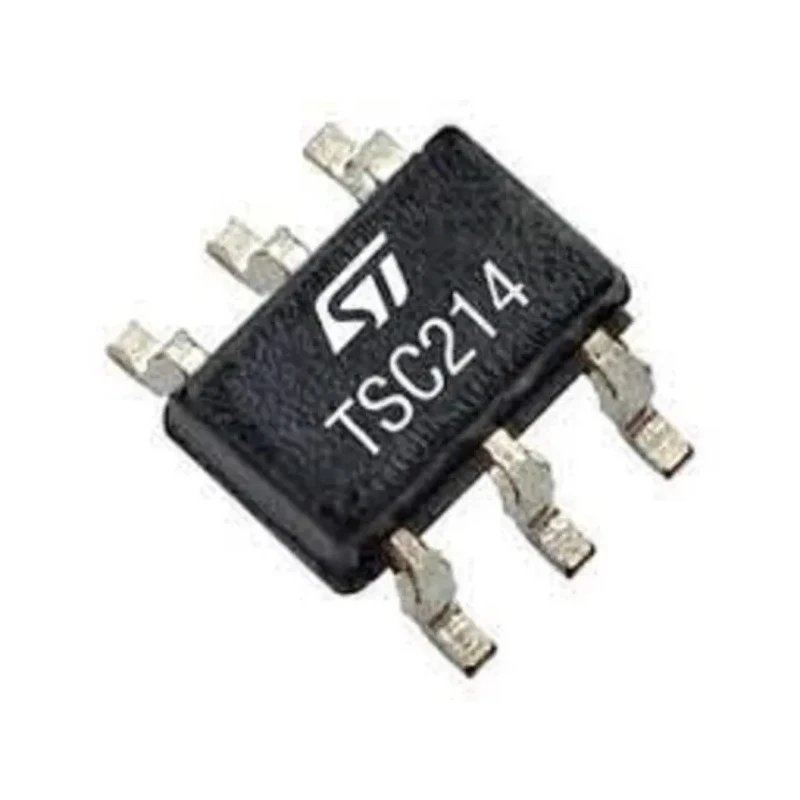

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC214IYCT

Name: STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC214IYCT
Brand: STMicroelectronics
SKU: 423220
Price: 2.32 USD
Availability: InStock



Category Current Sensing Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.1mm
Length	2.2mm
Model	TSC214IYCT
Mount Type	Surface
Series	TSC214
Maximum Operating Temperature	125°C
Package Type	SC-70-6
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	6
Automotive Standard	AEC-Q100
Maximum Supply Voltage	26V
Minimum Supply Voltage	2.7V
Supply Current	5mA
GBP - Gain Bandwidth Product	40kHz
CMRR - Common Mode Rejection Ratio	105dB

Key Features

Zero-drift architecture ensures high precision sensing.
Senses current via shunt resistor over a wide common mode voltage range of -0.3 to +26 V.
Single power supply operation with supply current of 5mA.
Common mode rejection ratio (CMRR) of 105 dB for accurate measurement.
Temperature operating range from -40°C to 125°C suitable for automotive applications.
Compact SC-70-6 package with 6 pins and dimensions 2.2mm length and 1.1mm height.
Automotive standard AEC-Q100 certified for reliable use in automotive electronics.

Product Description

STMicroelectronics TSC214IYCT Current Sensing Amplifier Single 6-Pin SC-70-6 offers high precision current sensing for industrial, automotive, telecommunications, and electronic component applications. Operating over a wide supply voltage range of 2.7 to 26 volts and a broad common mode voltage span from -0.3 V to +26 V, the device ensures reliable current measurement through a shunt resistor with minimal error.

The amplifier’s zero-drift architecture provides excellent gain accuracy with a maximum gain error of ±1%, an offset drift of only 0.1 μV/°C, and gain drift of 20 ppm/°C, resulting in stable performance over temperature variations. Its quiescent current is ultralow at 100 μA, while typical supply current consumption is 5 mA, optimizing power efficiency.

Designed in a small SC-70-6 surface mount package with 6 pins, the TSC214IYCT measures 2.2 mm in length and 1.1 mm in height, making it suitable for compact circuit boards. The device meets automotive-grade AEC-Q100 standards, ensuring ruggedness and reliability in harsh vehicle environments.

Zero-drift current sensing for precision measurement. Wide supply and common mode voltage ranges for versatile application. Low power consumption with 5 mA supply current. High common mode rejection ratio of 105 dB for noise immunity.

Automotive AEC-Q100 certification for high reliability. Compact SC-70-6 surface mount package ideal for dense PCB layouts. Operational temperature range from -40°C to 125°C for industrial and automotive use.

This current sensing amplifier is ideal for use in power management, telecom equipment, industrial controls, automotive electronics, and instrumentation requiring accurate, low-drift current measurement. The compact size and robust specifications allow integration into space-constrained and high-reliability systems.
