DiodesZetex Current Monitor Single 5-Pin SOT-23 2.5-20V Supply ZXCT1020E5TA

Free Delivery in India | Lowest Global Shipping Charges

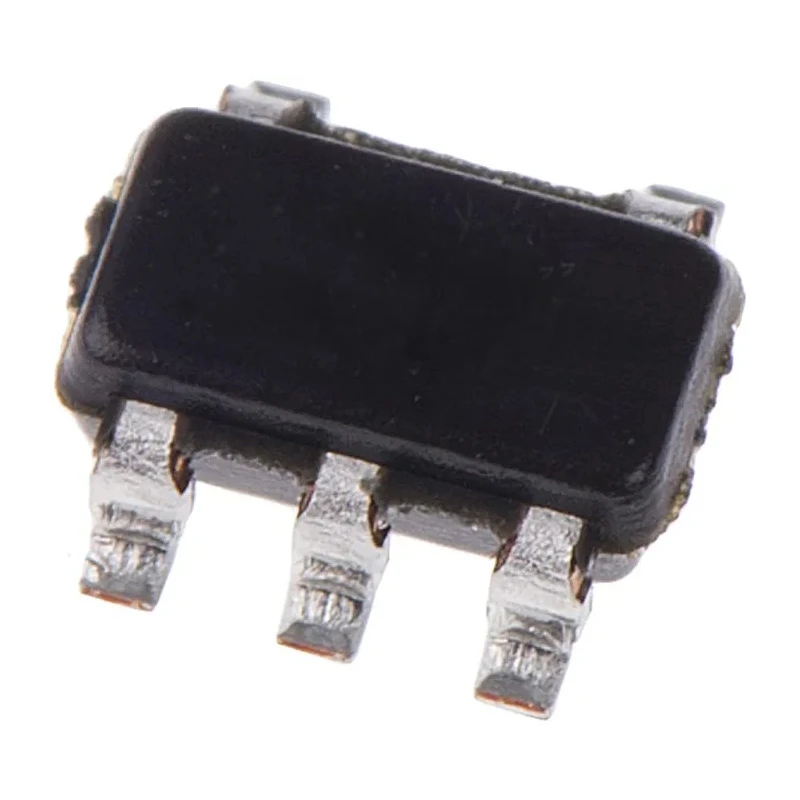

DiodesZetex Current Monitor Single 5-Pin SOT-23 2.5-20V Supply ZXCT1020E5TA

Name: DiodesZetex Current Monitor Single 5-Pin SOT-23 2.5-20V Supply ZXCT1020E5TA
Brand: DiodesZetex
SKU: 378405
Price: 1.44 USD
Availability: InStock



Category Current Sensing Amplifier Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.3mm
Length	3.1mm
Model	ZXCT1020E5TA
Mount Type	Surface
Series	ZXCT1020
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	5
Maximum Supply Voltage	20V
Minimum Supply Voltage	2.5V
Supply Current	35μA
GBP - Gain Bandwidth Product	2MHz

Key Features

Operates with a low supply current of only 35 microamperes enabling energy-efficient designs.
Provides a voltage output proportional to the voltage drop across low-value resistors for accurate current measurement.
Wide operating temperature range from -40°C up to 85°C suitable for industrial environments.
Gain bandwidth product of 2 MHz ensures reliable and fast response in current monitoring applications.
Compact surface mount SOT-23 package measuring 3.1 mm length and 1.3 mm height for space-saving PCB designs.
Designed for use in power rail current monitoring and measurement circuits within electronics and semiconductor systems.

Product Description

DiodesZetex ZXCT1020E5TA is a high-performance current sensing amplifier designed to provide precise current monitoring by outputting a voltage proportional to the voltage drop across a very low-value resistor typically placed in a high-current power rail. Featuring a single channel operation and low supply current of 35 microamperes, this device is optimized for efficient power consumption in industrial and commercial electronics applications.

Operating over a wide supply voltage range from 2.5 volts to 20 volts, the ZXCT1020E5TA supports a broad range of power systems. Its compact 5-pin surface mount SOT-23 package with dimensions 3.1 mm length and 1.3 mm height ensures minimal PCB footprint, making it ideal for space-constrained designs.

The device functions reliably across an extended temperature range from -40°C to 85°C, suited for harsh environmental conditions including automotive and industrial systems. With a gain bandwidth product of 2 MHz, it delivers fast and accurate current measurement useful in applications such as power monitoring, battery management, and system diagnostics.

This current sensing amplifier is used to measure the current flowing in power rails by sensing the minute voltage drop generated across precision shunt resistors. The model ZXCT1020E5TA from DiodesZetex is commonly applied in industrial automation, power electronics, and semiconductor devices for enhanced operational safety and efficiency.

Operates at a low supply current of 35μA for power efficiency. Single channel current measurement capability supports simplified circuit design. Surface mount SOT-23 package ensures compact integration. Wide operating voltage range from 2.5V to 20V accommodates various power sources.

Temperature range of -40°C to 85°C provides robustness for industrial applications. Gain bandwidth product of 2 MHz enables fast response time and accurate sensing.

This product is an essential component for applications in industrial machines, electronics manufacturing, automotive electronics, and power management systems. It meets current sensing amplifier requirements for precision, efficiency, and environmental endurance.
