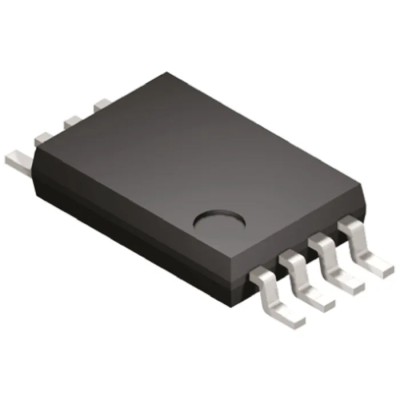

STMicroelectronics Current Sensing Amplifier Dual, Single 8-Pin TSSOP TSC1031IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 4.5mm |
| Model | TSC1031IPT |
| Mount Type | Surface |
| Series | TSC103 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 480μA |
| GBP - Gain Bandwidth Product | 700kHz |
| CMRR - Common Mode Rejection Ratio | 90dB |
Key Features
- Operates from 2.7V to 5.5V supply voltage range.
- Features a common mode rejection ratio of 90dB for accurate differential sensing.
- Integrated single channel with low supply current of 480μA.
- Packaged in a compact 8-pin TSSOP surface-mount package.
- Robust operating temperature range from -40°C to 125°C.
- Gain bandwidth product of 700kHz for efficient signal amplification.
- Designed without automotive certifications for general industrial applications.
- Compact dimensions with 4.5mm length and 1.05mm height for PCB integration.
Product Description
STMicroelectronics TSC1031IPT Current Sensing Amplifier Dual, Single 8-Pin TSSOP is designed for accurate measurement of currents flowing in high-current power rails. It offers a voltage output proportional to the voltage drop across a low-value sensing resistor, enabling precise current monitoring crucial for enhancing the safety and reliability of electrical applications.
With a supply voltage range from 2.7V to 5.5V and a common mode rejection ratio of 90dB, this device effectively filters out noise and interference for accurate sensing. It features a single channel with a low supply current of only 480μA, making it suitable for power-sensitive applications.
The amplifier is housed in a compact 8-pin TSSOP surface mount package with physical dimensions of 4.5mm length and 1.05mm height. Its operating temperature range from -40°C to 125°C ensures performance stability under harsh industrial conditions.
This current sensing amplifier is ideal for use in industrial electronics, power management systems, and embedded applications requiring precise current measurement. It lacks automotive certification, indicating suitability primarily for general industrial and commercial use rather than automotive applications.
Operates over a wide voltage and temperature range ensuring flexible integration. Compact surface mount design supports high-density PCB layouts. Low power consumption preserves system efficiency. High common mode rejection ratio enhances measurement accuracy.
Single channel configuration simplifies design and reduces costs. Ideal for power rail current monitoring and safety implementations. Used in industrial, electronic, power connector, and semiconductor sectors. Compatible with various design tools providing 3D models and schematics.
Explore the Electronics & Electricals > Semiconductor > Current Sensing Amplifier category for a broad range of amplifiers and related components. STMicroelectronics offers reliable semiconductor products engineered for industrial and commercial applications on EnvMart.
