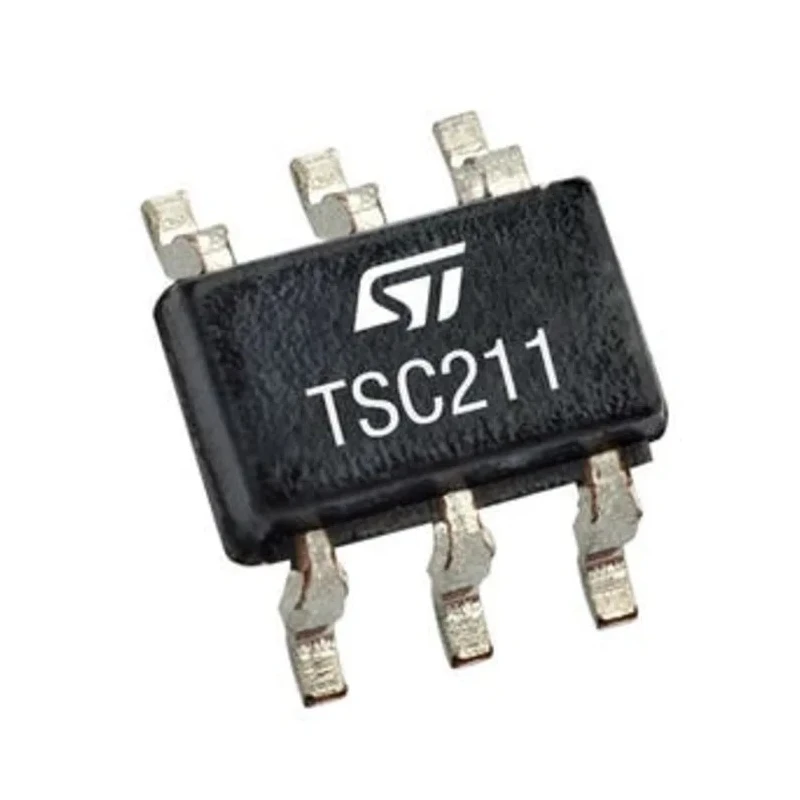

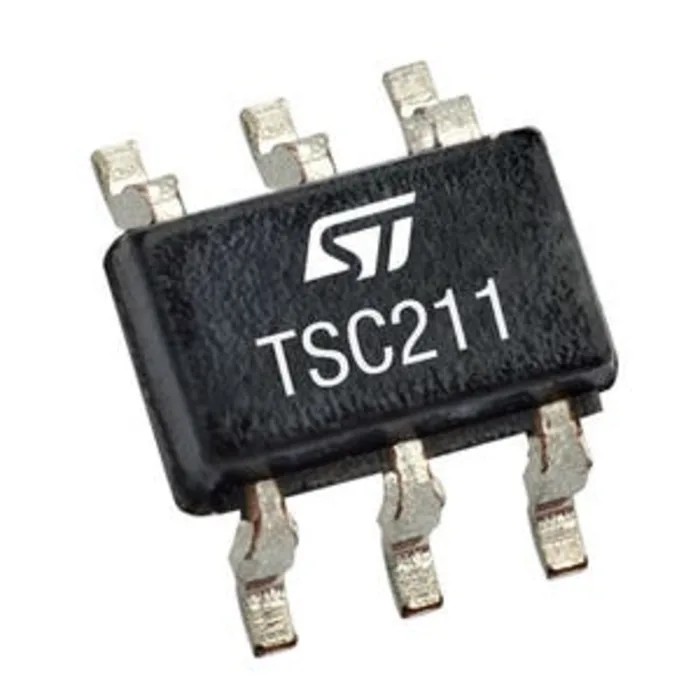

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 2.7V-26V Supply TSC210IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | TSC210IYCT |
| Mount Type | Surface |
| Series | TSC210 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 25kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- The device features a 105 dB Common Mode Rejection Ratio for accurate current sensing.
- It operates over a temperature range of -40°C to 125°C, suitable for demanding applications.
- The gain bandwidth product is 25 kHz, supporting stable analog signals.
- The amplifier consumes a low quiescent supply current of 5 mA, ensuring power efficiency.
- Designed with zero-drift architecture, it provides high precision with offset drift as low as 0.1 μV/°C.
- The compact SC-70-6 surface-mount package measures 2.2 mm length by 1.1 mm height.
- Meets automotive standard AEC-Q100, making it reliability-suited for automotive electronics.
- Single channel amplifier supporting wide common mode voltage from -0.3 V to +26 V.
Product Description
STMicroelectronics TSC210IYCT is a high precision current sensing amplifier designed for industrial, automotive, telecom, and instrumentation applications. Operating with a supply voltage range of 2.7V to 26V, this device supports sensing current via a shunt resistor within a wide common mode voltage range from -0.3 V to +26 V. Its zero-drift architecture ensures offset voltage as low as ±35 μV and offset drift of 0.1 μV/°C maximum, delivering stable and accurate readings.
The TSC210IYCT is housed in a compact 6-Pin SC-70 surface mount package, ideal for space-constrained PCB layouts. With a gain bandwidth product of 25 kHz and a common mode rejection ratio of 105 dB, it offers excellent noise immunity in demanding electrical environments.
This single-channel amplifier consumes only 5 mA supply current, allowing energy-efficient designs without compromising performance. It meets the stringent automotive standard AEC-Q100, enabling its use in automotive electronics requiring robust operating conditions over the -40°C to 125°C temperature range.
The device is suitable for telecom equipment, industrial controls, and embedded systems where precise current monitoring is critical. Its dimensions of 2.2 mm length and 1.1 mm height enable integration into compact circuits.
The device ensures high accuracy current measurement with a gain error maximum of ±1%. Offset voltage and gain drift are minimized for stable performance across temperature variations. Its surface mounting package facilitates automated PCB assembly and mass production.
Voltage supply flexibility supports varied application requirements from low voltage to higher voltage systems. Compliance with automotive standards provides assurance for harsh environment use cases. Compact size and low power consumption make it ideal for modern electronic devices.
Reliable operation is guaranteed within the extended operating temperature range from -40°C to 125°C.
Set yourself up for success in industrial, automotive, telecommunications, and measurement applications by selecting STMicroelectronics TSC210IYCT current sensing amplifier. Discover more products and engineering solutions in the Semiconductor Current Sensing Amplifiers category on EnvMart today.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 2.7V to 26V, making it suitable for various applications.
The amplifier supports a wide common mode voltage range from -0.3 V to +26 V, allowing for flexible integration in different circuits.
It has a gain bandwidth product of 25 kHz, which supports stable analog signal processing.
The device operates effectively within a temperature range of -40°C to 125°C, suitable for demanding environments.
It consumes a low quiescent supply current of 5 mA, enhancing power efficiency in designs.
The compact SC-70-6 package measures 2.2 mm in length and 1.1 mm in height, making it ideal for space-constrained applications.
The TSC210IYCT features a common mode rejection ratio of 105 dB, which provides excellent noise immunity.
Yes, it meets the automotive standard AEC-Q100, ensuring reliability for automotive applications.
This model uses surface mounting, which facilitates automated PCB assembly and mass production.
It is a single-channel amplifier designed for precise current sensing applications.
The amplifier has an offset voltage as low as ±35 μV and an offset drift of 0.1 μV/°C maximum, ensuring high precision in measurements.
It is suitable for industrial, automotive, telecom, and instrumentation applications where precise current monitoring is critical.
