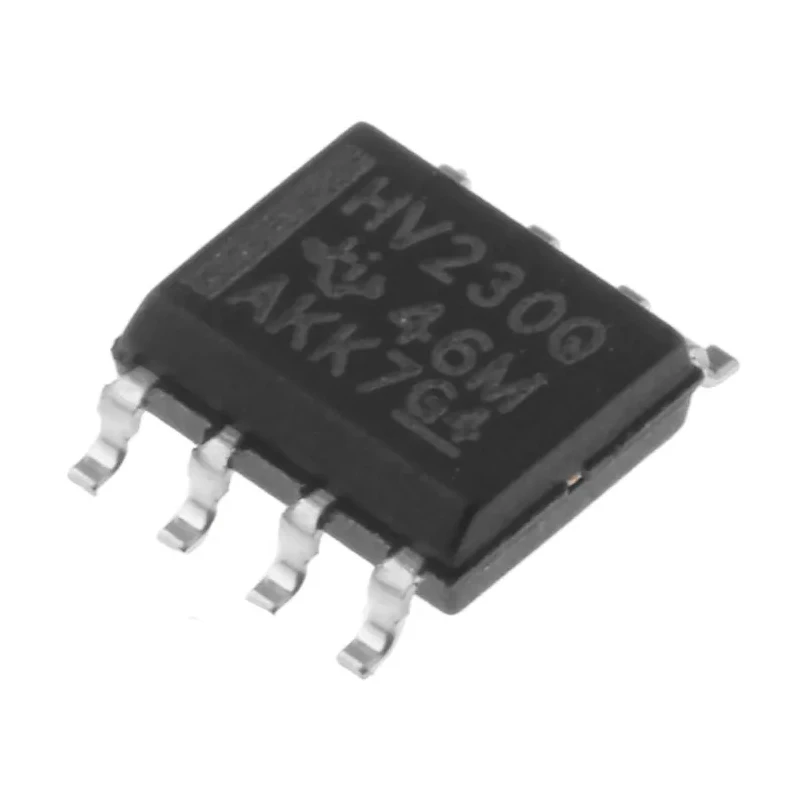

Texas Instruments CAN Transceiver 1 Mbps 8-Pin SOIC SN65HVD230QD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | SN65HVD230QD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | SN65HVD230Q |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | CAN Transceiver |
| Minimum Operating Temperature | -40°C |
| Interface Type | ISO 11898 |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Supply Current | 17mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports a maximum data rate of 1 Mbps adhering to ISO 11898 standards.
- Single transceiver design suitable for CAN bus applications.
- Operates with a minimum supply voltage of 3 V and maximum of 3.6 V.
- Low supply current of 17 mA ensures energy efficiency.
- Wide operating temperature range from -40°C to 125°C for robust performance.
- Equipped with ESD protection to safeguard against electrical surges.
- Compact surface mount SOIC package with dimensions 4.9 mm length, 3.91 mm width, and 1.58 mm height.
- No automotive standard compliance is included for this model.
Product Description
Texas Instruments SN65HVD230QD is a CAN transceiver IC designed for Controller Area Network (CAN) communication systems, supporting data rates up to 1 Mbps. Packaged in an 8-pin SOIC surface mount package, this component ensures reliable physical layer interfacing for CAN bus controllers.
This transceiver operates with a supply voltage range of 3 V minimum to 3.6 V maximum, drawing a low supply current of 17 mA. It supports a broad operating temperature range from -40°C to 125°C, making it suitable for harsh industrial and automotive environments. Its ESD protection feature enhances device robustness against electrostatic discharge events.
The device package dimensions measure 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, ensuring compact integration on printed circuit boards. This single transceiver supports the ISO 11898 interface standard and is part of the SN65HVD230Q series, providing effective CAN protocol interfacing without automotive standard qualification.
Ideal for automotive networking applications, industrial control, and embedded communication systems, the SN65HVD230QD aids in seamless data communication over CAN bus networks. The surface mount package facilitates efficient manufacturing and assembly processes.
Supports a maximum data rate of 1 Mbps adhering to ISO 11898 standards. Single transceiver design suitable for CAN bus applications. Operates with a minimum supply voltage of 3 V and maximum of 3.6 V. Low supply current of 17 mA ensures energy efficiency.
Wide operating temperature range from -40°C to 125°C for robust performance. Equipped with ESD protection to safeguard against electrical surges. Compact surface mount SOIC package with dimensions 4.9 mm length, 3.91 mm width, and 1.58 mm height.
No automotive standard compliance is included for this model. Designed for automotive, industrial, and embedded network communications.
This product supports engineers and designers in creating reliable CAN bus communication systems in automotive, industrial automation, and embedded communication applications. For further semiconductor and interface IC selections, browse EnvMart's wide inventory.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65HVD230QD supports a maximum data rate of 1 Mbps, adhering to ISO 11898 standards.
It operates with a minimum supply voltage of 3 V and a maximum of 3.6 V.
This transceiver has a low supply current of 17 mA, ensuring energy efficiency during operation.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
The package dimensions are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
It is packaged in an 8-pin SOIC surface mount package.
Yes, it is equipped with ESD protection to safeguard against electrical surges.
It complies with the ISO 11898 interface standard for CAN communication.
This model includes a single transceiver design suitable for CAN bus applications.
No, this model does not include automotive standard compliance.
The SN65HVD230QD is manufactured in India.
It is designed for automotive networking, industrial control, and embedded communication systems.
