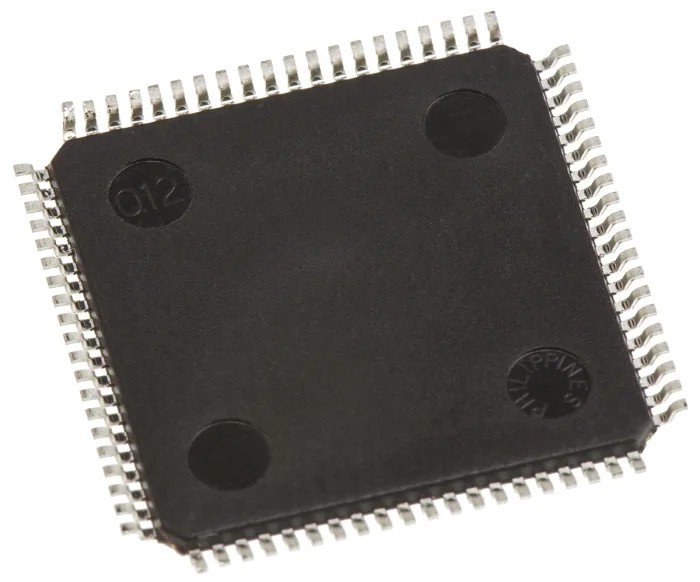

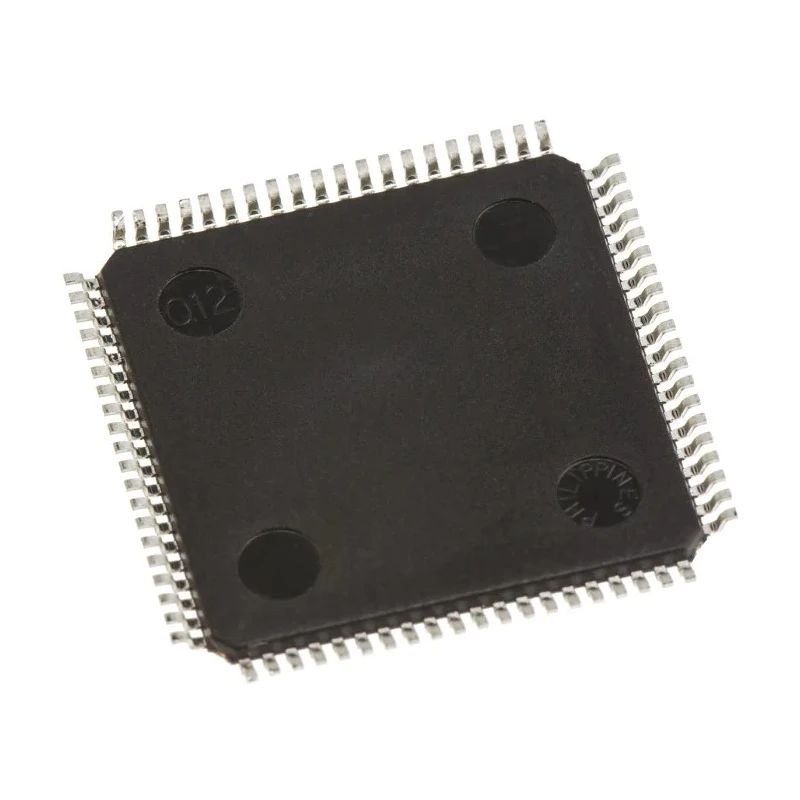

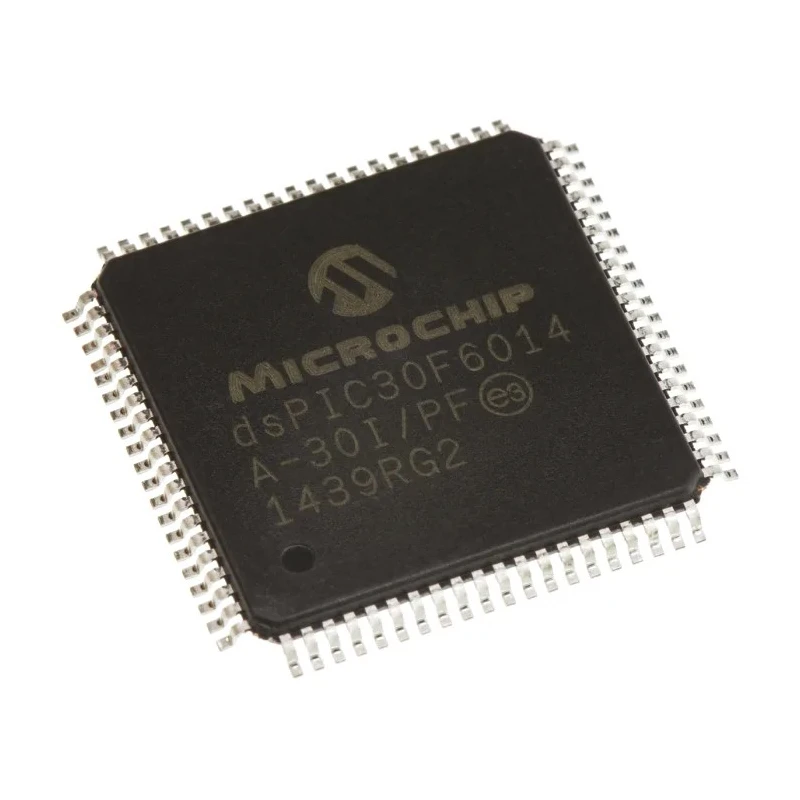

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 144kB FLASH 80-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 14mm |
| Model | dsPIC30F |
| Width | 14mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8.19kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 144kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 8 |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
Key Features
- Operates at a maximum clock frequency of 30 MIPS for efficient processing.
- Equipped with 8.19kB RAM for data storage and execution.
- Incorporates a 16-bit RISC instruction set architecture ensuring streamlined operations.
- Functions within a supply voltage range of 2.5V to 5.5V suitable for various applications.
- Features a 12-bit ADC with 16 channels allowing precise analog signal conversions.
- Includes 8 PWM units with 16-bit resolution for motor control and digital power conversion.
- Compact surface mount TQFP package measuring 14x14x1.05 mm for space-saving PCB design.
- Designed for operation across a temperature range from -40°C to 85°C enhancing industrial usability.
Product Description
Microchip DSPIC30F6014A-30I/PF Digital Signal Processor delivers high performance 16-bit processing at 30 MIPS, equipped with 144kB FLASH memory housed in an 80-pin TQFP package ideal for compact embedded system designs.
This DSP combines the capabilities of a DSP with the simplicity of a microcontroller, operating efficiently within a wide supply voltage range of 2.5V to 5.5V. It features an 8.19kB RAM and a 16-bit RISC instruction set architecture tailored for precision and speed in processing applications.
The device integrates a 12-bit ADC supporting up to 16 channels, which facilitates smart sensing applications requiring high accuracy in analog to digital conversion. It also offers 8 PWM units with 16-bit resolution, supporting advanced motor control and digital power converter applications.
Its surface mount TQFP package with dimensions of 14mm by 14mm and a height of 1.05mm enables compact PCB layouts suitable for diverse electronic assemblies. Operating over a wide temperature range from -40°C to 85°C, this controller is well-suited for industrial, automotive, and consumer electronics applications.
Additional features include 5 timers with 16-bit resolution, supporting complex timing and event counting tasks. The dsPIC30F family enhances performance in applications including motor control systems, digital power conversion, and audio processing.
Operates at 30 MIPS maximum clock frequency with efficient 16-bit processing. 144kB FLASH memory provides ample program storage for complex algorithms. Wide supply voltage range from 2.5V to 5.5V supports flexible system designs.
12-bit ADC with 16 channels for precise analog input processing. 8 PWM units and multiple timers enable advanced control applications.
This product is ideal for applications in industrial machines, automotive systems, power electronics, and embedded control systems requiring integrated digital signal processing with microcontroller functionality.
Explore more advanced semiconductor solutions and microcontrollers in the Electronics & Electricals category at EnvMart for optimized industrial and laboratory implementations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dsPIC30F operates at a maximum clock frequency of 30 MIPS, providing efficient processing capabilities.
It features a program memory size of 144kB FLASH, allowing for ample storage of complex algorithms.
This model operates within a supply voltage range of 2.5V to 5.5V, making it suitable for various applications.
It includes a 12-bit ADC with 16 channels, enabling precise analog signal conversions.
The TQFP package measures 14mm in length, 14mm in width, and has a height of 1.05mm, suitable for compact PCB designs.
The dsPIC30F includes 8 PWM units with 16-bit resolution, supporting advanced motor control and digital power conversion applications.
This model is equipped with 8.19kB of RAM for data storage and execution during processing tasks.
It operates across a temperature range from -40°C to 85°C, enhancing its usability in industrial applications.
The device features 5 timers with 16-bit resolution, which support complex timing and event counting tasks.
It incorporates a 16-bit RISC instruction set architecture, ensuring streamlined operations for various applications.
This model is well-suited for applications in industrial machines, automotive systems, power electronics, and embedded control systems.
The dsPIC30F is manufactured in India, reflecting its origin in the semiconductor industry.
