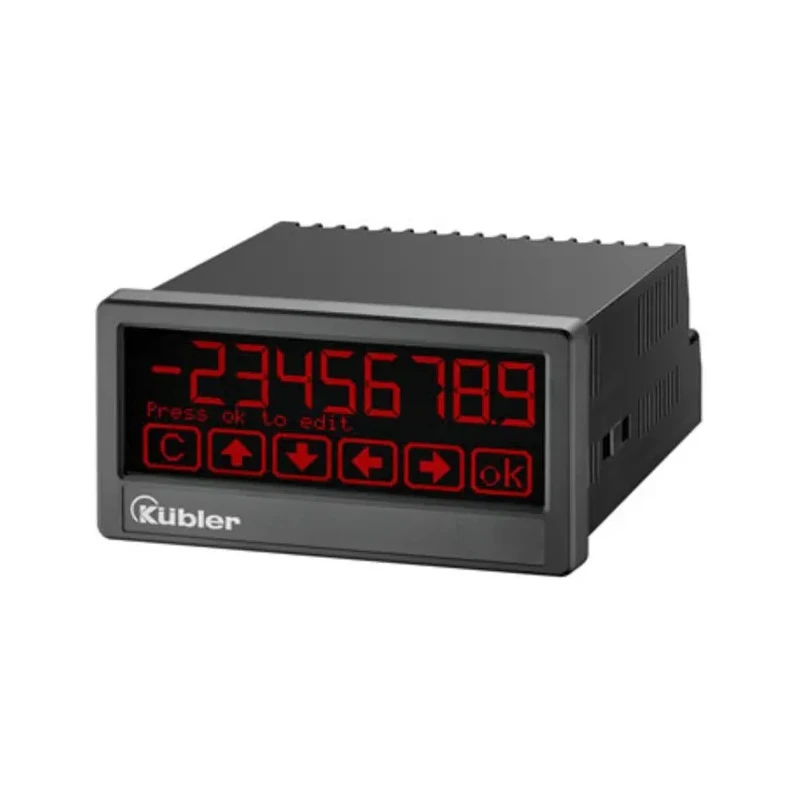

Kubler Display Unit LCD Counter Maximum Supply Voltage 30V Model 6.570T.012.302

Kubler 6.570T.012.302 Display Unit LCD Counter is an industrial-grade display unit designed for absolute SSI encoders with up to 32 bits resolution. Operating at a maximum supply voltage of 30V, this LCD display unit is suitable for both master and slave mode applications, offering versatility in counter operations.

This display unit features simple bit assignment and bit blanking functionalities, enabling cascading of multiple units to extend display range as required. The unit supports output options including four limit values, an analog output, and an RS232 interface, making it adaptable to various industrial communication requirements.

The 8-digit LCD display stands out with its large 13 mm high digits and adjustable brightness. The tri-color display, programmable in red, green, and yellow, facilitates clear visual indication under diverse lighting conditions. Designed to operate reliably within the temperature range from 20°C to 60°C, it has a compact depth of 105 mm, ensuring easy integration into control panels or industrial setups.

Power supply compatibility includes both AC and DC, enhancing deployment flexibility. With SSI-clock frequency support from 100 Hz up to 1 MHz, it is well-suited for high-speed encoding applications. Additional features like scaling, offset adjustments, 24-point linearization, and a round-loop function provide precise calibration and linearization of the displayed values.

The unit uses screw terminal connections for strong and reliable wiring. Manufactured in Germany, it meets high European quality standards and is delivered as a new product, ensuring dependable performance in industrial, automation, laboratory, and manufacturing environments.

The unit supports master or slave mode operation with simple bit assignment and bit blanking features. Display is scalable and linearizable, with the ability to cascade multiple units to extend the display range. Output options include four limit values, analog output, or RS232 interface.

Equipped with a large 13 mm high, 8-digit tri-color LCD display featuring adjustable brightness and programmable red, green, and yellow colors. Designed to operate within a temperature range from 20°C to 60°C and features a compact depth of 105 mm.

Supports SSI-clock frequency ranging from 100 Hz up to 1 MHz, compatible with AC and DC power supply. Includes scaling and offset adjustment features with 24-point linearization and round-loop function for precise display calibration.

Screw terminal connection ensures robust and convenient wiring. Manufactured in Germany and certified as new product condition.

This Kubler display unit is ideal for industrial automation, measurement, control systems, and electronic testing applications requiring accurate counting and display operations. Explore a range of Kubler Display Units and counters on EnvMart for reliable industrial performance.
