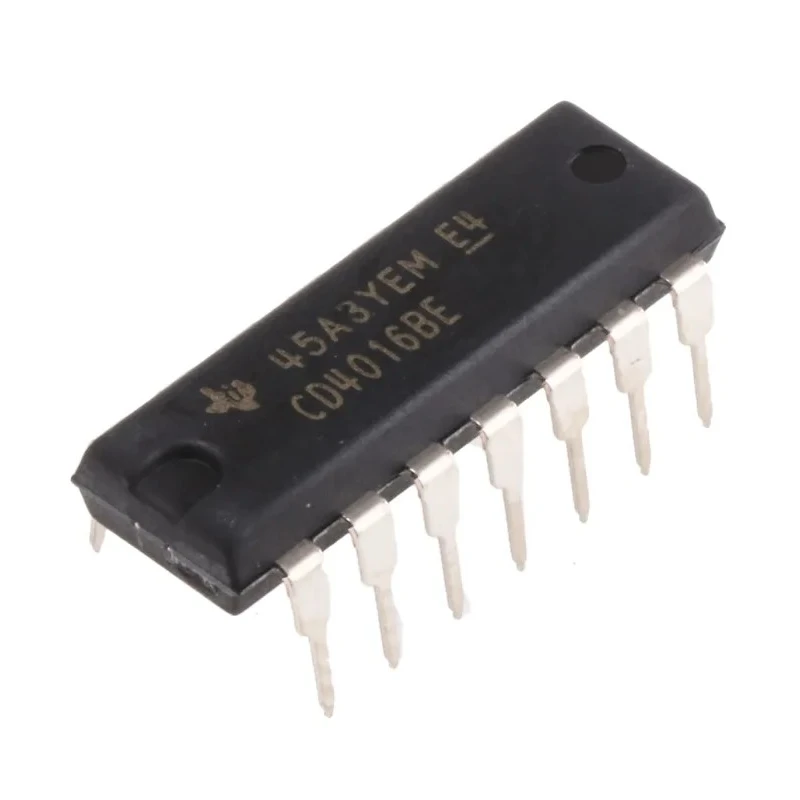

Texas Instruments Analogue Switch CMOS Quad SPST 14-Pin PDIP CD4016BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4016BE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | CD4016B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Wide operating voltage range | 3 to 18V |
Key Features
- Part of the 4000 Series CMOS Logic Family offering wide operating voltage range.
- Configured as four single-pole single-throw (SPST) analogue switches.
- Operates within a supply voltage range from 5V to 18V.
- Operating temperature range from -55°C to 125°C for industrial applications.
- Compliant with RoHS standards ensuring safe and reliable use.
- Compact dimensions of 19.3mm length, 6.35mm width, and 4.57mm height.
- Designed for use in switching, multiplexing, and demultiplexing analogue signals.
- Through hole mount type suitable for traditional PCB assemblies.
Product Description
Texas Instruments CD4016BE analogue switch belongs to the 4000 Series CMOS Logic Family and is designed as a quad single-pole single-throw (SPST) analogue switch. It features a 14-pin PDIP package optimized for through-hole mounting applications.
This device operates across a wide voltage range of 5V minimum to 18V maximum supply, supporting industrial temperature ranges from -55°C to 125°C, making it well suited for harsh environment use cases.
With four analogue switches integrated per chip, it facilitates switching, multiplexing, and demultiplexing functions in analogue signal processing. The CMOS technology ensures low power consumption and high noise immunity.
The compact size dimensions (19.3mm length, 6.35mm width, and 4.57mm height) allow efficient PCB layout and assembly in electronic designs requiring multiple switching elements. The product is RoHS compliant, confirming it meets environmental and safety standards for electronics manufacturing.
Part of Texas Instruments 4000 Series CMOS Logic Family offering versatile functionality. Provides quad SPST analogue switching capability in a single IC. Wide operating voltage range from 5V to 18V supports diverse power supply conditions.
Extended temperature tolerance (-55°C to 125°C) suitable for industrial and automotive environments. Compact 14-pin PDIP package supports through-hole assembly techniques. Compliant with RoHS directive ensuring environmental safety.
Ideal for applications in industrial control, laboratory instrumentation, and power management circuits. Not designed for automotive standard compliance applications. Ensures efficient switching with low power dissipation and high noise margin.
This Texas Instruments CD4016BE analogue switch is a reliable solution for engineers and designers looking for efficient and versatile Analogue Switching devices in electronic component inventory. Explore more semiconductor solutions and related ICs in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range from 5V to 18V.
The maximum operating temperature for the CD4016BE is 125°C.
It features four single-pole single-throw (SPST) analogue switches per chip.
The compact dimensions are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
This unit is designed for through-hole mounting applications.
Yes, it is compliant with RoHS standards, ensuring safe and reliable use.
The minimum operating temperature is -55°C, suitable for industrial applications.
It is designed for switching, multiplexing, and demultiplexing analogue signals in various applications.
The CD4016BE has a pin count of 14.
This analogue switch belongs to the CMOS logic family.
It is configured as a quad single-pole single-throw (SPST) analogue switch.
The country of origin for this model is India.
