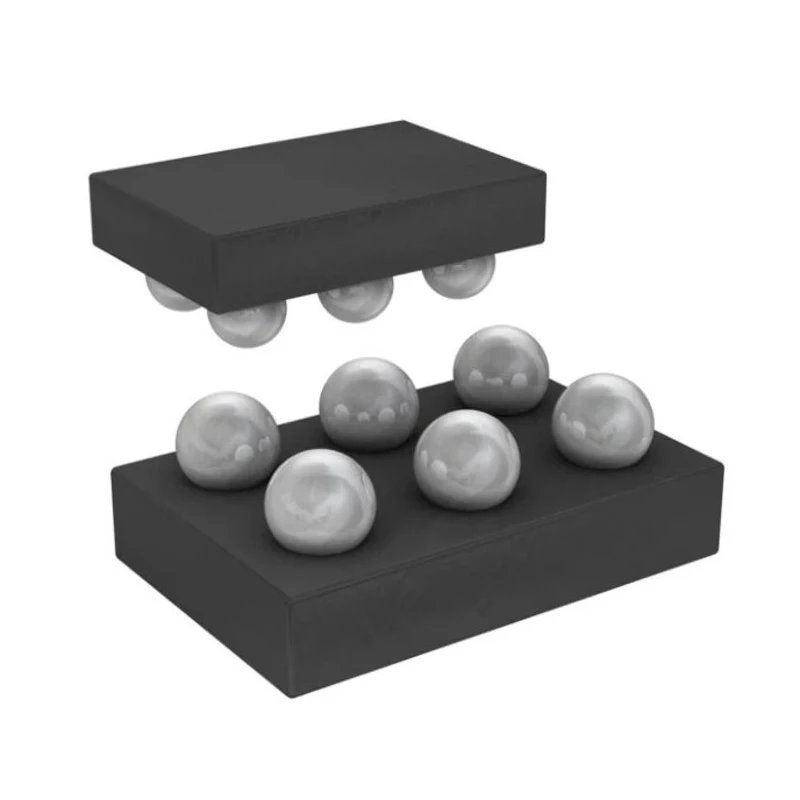

onsemi Peripheral Controller 6-Pin WLCSP 1.5V to 5.5V Operating Range FPF1320UCX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 330μm |
| Length | 1.5mm |
| Model | FPF1320UCX |
| Mount Type | Surface |
| Series | FPF1312 |
| Maximum Operating Temperature | 85°C |
| Package Type | WLCSP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.5V |
| Input Supply Operating Range | 1.5 V ∼ 5.5 V |
| ISW | 1.5 A Per Channel (Maximum) |
Key Features
- The device supports a minimum supply voltage of 1.5 V and a maximum of 5.5 V.
- Operating temperature range is from -40°C to 85°C ensuring reliability in harsh environments.
- It features a low on resistance of 50 mΩ typical at 3.3 V per channel.
- Maximum current per channel is rated at 1.5 A.
- Includes true reverse-current blocking and fixed slew rate control for stability.
- The package type is WLCSP with 6 pins optimized for compact PCB designs.
- ESD protection surpasses standard human body and charged device models.
- Quick discharge feature available on related models enhances circuit safety.
Product Description
onsemi FPF1320UCX Peripheral Controller 6-Pin WLCSP is a surface mount semiconductor device designed for smart power management in compact electronic applications. It operates within a voltage range of 1.5 V to 5.5 V and features a low on-resistance of 50 mΩ typical at 3.3 V, capable of handling up to 1.5 A per channel. The device is housed in a 6-pin WLCSP package with dimensions of 1.5 mm length and 330 μm height, making it suitable for space-constrained designs.
Designed to withstand a wide temperature range from -40°C to 85°C, this controller ensures stable performance in demanding environments. It integrates true reverse-current blocking (TRCB) and a fixed slew rate control with a 130 μs rise time for capacitive loads under 1 μF, providing efficiency and system protection. Enhanced electrostatic discharge (ESD) protection conforms to IEC 61000-4-2 standards, with air discharge resistance greater than 15 kV and contact discharge over 8 kV, along with human body model protection above 6 kV and charged device model protection above 1.5 kV.
Applications include use in smartphones, tablet PCs, portable devices, Near Field Communication (NFC) systems, and SIM card power supplies, supporting modern consumer electronics with reliable control and protection.
The device supports a minimum supply voltage of 1.5 V and maximum of 5.5 V. Operating temperature range is from -40°C to 85°C ensuring reliability in harsh environments. Features low on-resistance of 50 mΩ at 3.3 V per channel.
Maximum switch current rating of 1.5 A per channel. True reverse-current blocking and fixed slew rate controlled to 130 μs for capacitive loads. 6-pin WLCSP package dimensions: 1.5 mm length and 330 μm height. Robust ESD protection exceeding IEC 61000-4-2 standards.
Quick discharge feature available in related models. Suitable for smartphones, tablets, NFC, and SIM card power supply applications.
Choose onsemi peripheral controller chips for dependable semiconductor solutions in industrial, consumer electronics, and communication device applications. Explore related semiconductor components and microcontrollers available on EnvMart.
Explore more products in our Peripheral Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FPF1320UCX operates within a voltage range of 1.5 V to 5.5 V.
The maximum current rating per channel for this model is 1.5 A.
The WLCSP package for this device measures 1.5 mm in length and 330 μm in height.
This model operates within a temperature range of -40°C to 85°C.
Yes, it features enhanced ESD protection that exceeds IEC 61000-4-2 standards, with air discharge resistance greater than 15 kV and contact discharge over 8 kV.
The FPF1320UCX uses surface mount technology for installation.
The typical on-resistance of this model is 50 mΩ at 3.3 V per channel.
It includes true reverse-current blocking and fixed slew rate control with a rise time of 130 μs for capacitive loads under 1 μF.
This peripheral controller is suitable for applications in smartphones, tablet PCs, portable devices, NFC systems, and SIM card power supplies.
The model belongs to the FPF1312 series of peripheral controllers.
The FPF1320UCX has a pin count of 6.
The FPF1320UCX is manufactured in India.
