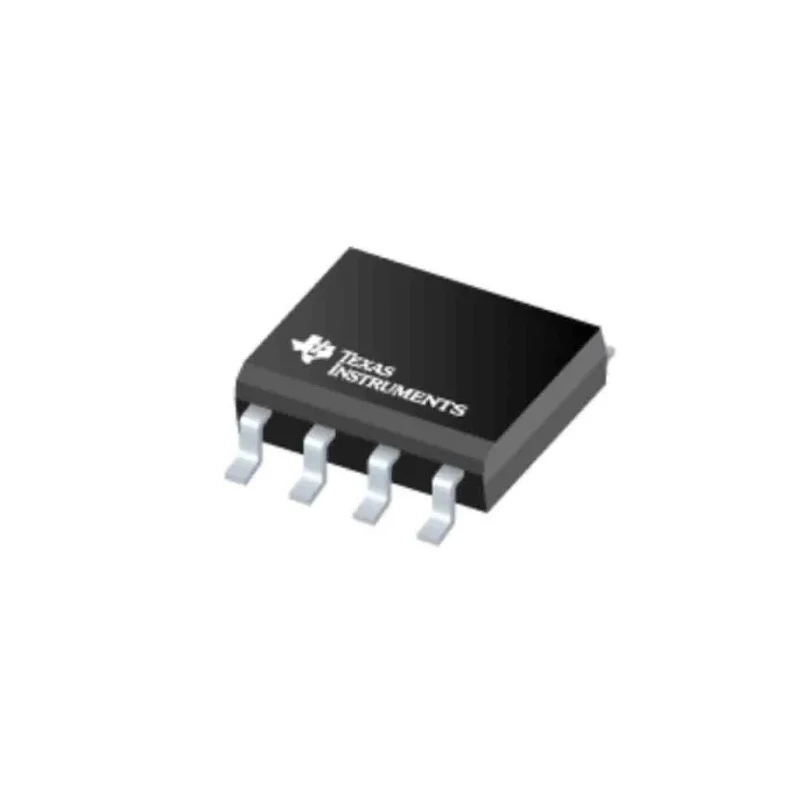

Texas Instruments Voltage Controlled Amplifier 0.25 mV Offset, 85 dB CMRR, 6V 8-Pin SOIC VCA810ID

Texas Instruments VCA810ID is a high-performance voltage controlled amplifier designed for precise and efficient amplification of electronic signals. It features an extremely low input offset voltage of 0.25 mV and a high common mode rejection ratio (CMRR) of 85 dB, delivering superior noise rejection and signal integrity.

This device operates over a supply voltage range of 4V to 6V, supporting stable operation in low voltage circuits. The single channel design is well suited for compact and space-constrained applications where efficient signal control is critical.

The VCA810ID offers an output current of up to 60 mA, enabling it to drive various downstream components effectively. It is packaged in an 8-pin SOIC surface mount package, facilitating automated PCB assembly and minimizing footprint.

Operating temperature from -40°C to 85°C ensures reliable function across broad industrial and commercial environments. The supply current consumption is a modest 24.8 mA, making it appropriate for power-sensitive applications.

With dimensions of 4.9 mm length and 1.58 mm height, the VCA810ID is a compact semiconductor amplifier optimized for integration into modern electronic systems. Operates with a minimum supply voltage of 4V and maximum of 6V for stable performance.

Features a single channel design suitable for compact applications. Delivers output current up to 60mA ensuring efficient signal drive capability. Package type is SOIC with an 8-pin count for easy surface mounting. Maintains operating temperature range from -40°C to 85°C for robustness in diverse environments.

Supply current is low at 24.8mA enabling energy efficient operation. Compact dimensions of 4.9mm length and 1.58mm height simplify board layout. No industry approvals but designed for reliable electronics applications.

This voltage controlled amplifier is ideal for electronics, semiconductor design, and industrial control systems requiring precision signal modulation and amplification. Explore a wide range of amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart for your circuit design projects.
