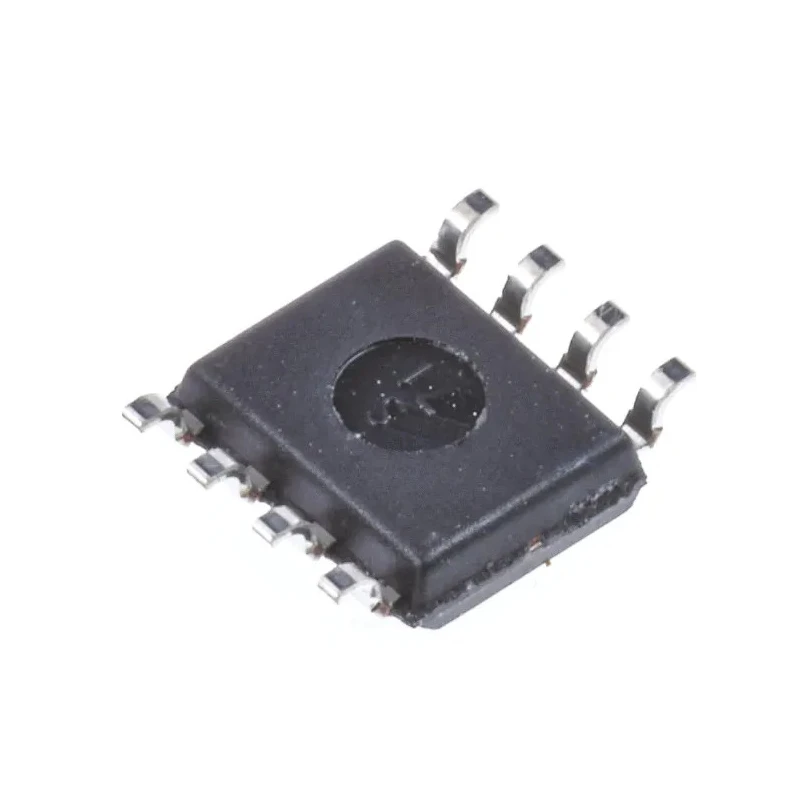

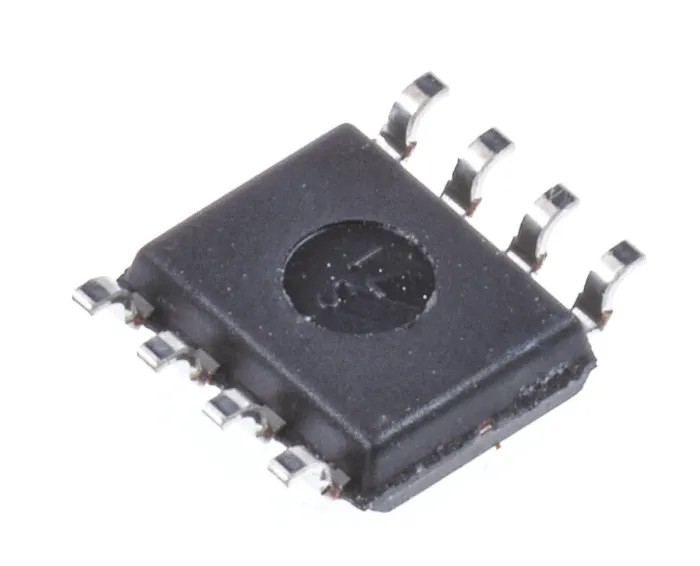

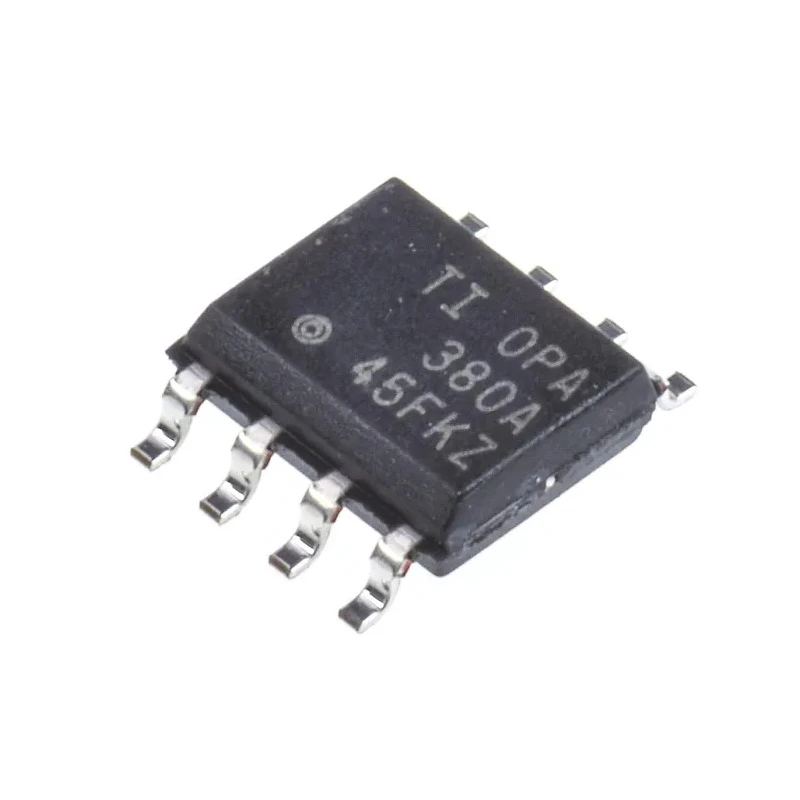

Texas Instruments Transimpedance Amplifier 3V-5.5V 1-Channel 90MHz 8-Pin SOIC OPA380AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA380AID |
| Mount Type | Surface |
| Series | OPA380 |
| Output Current | 150mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 7.5mA |
| GBP - Gain Bandwidth Product | 90MHz |
| Slew Rate | 80V/μs |
Key Features
- Operates from a minimum supply voltage of 3V to a maximum of 5.5V.
- Single channel amplifier ideal for current-to-voltage conversion.
- Gain bandwidth product of 90MHz supports high-frequency applications.
- Slew rate of 80V/µs enables fast response times.
- Output current capability of 150mA for robust signal driving.
- Surface mount SOIC package with 8 pins measuring 4.9mm length and 1.58mm height.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Low supply current consumption of 7.5mA for efficient power usage.
Product Description
Texas Instruments model OPA380AID is a high-performance transimpedance amplifier designed for applications requiring current-to-voltage conversion such as photodetector amplification and sensor interfaces. Operating with a supply voltage range of 3V to 5.5V, it features a single channel configuration and a gain bandwidth product of 90MHz, which allows effective amplification of high-frequency signals.
The amplifier provides an output current of up to 150mA with a slew rate of 80V/µs, ensuring fast and accurate signal processing. It is housed in an 8-pin SOIC surface mount package with compact physical dimensions of 4.9mm length and 1.58mm height, facilitating integration into dense electronic assemblies.
With an operating temperature range from -40°C to 125°C, this device is suitable for demanding industrial and laboratory environments. The low supply current of 7.5mA contributes to overall system energy efficiency. Although it does not carry automotive standard certification, it supports numerous electronic design applications including instrumentation amplification, optical sensor interfaces, and accelerometer signal conditioning.
Operates from 3V to 5.5V supply voltage. Single channel transimpedance configuration for current-to-voltage conversion. Gain bandwidth product of 90MHz supports high-speed applications. Output current of up to 150mA for driving loads effectively.
Slew rate of 80V/µs provides fast signal response. Compact 8-pin SOIC surface mount package measuring 4.9mm x 1.58mm. Wide temperature range from -40°C to 125°C supports industrial use. Low supply current at 7.5mA ensures energy efficiency.
No automotive standard compliance, intended for general electronic use. No additional certifications or approvals.
This transimpedance amplifier is ideal for industrial, laboratory, and electronic manufacturing applications requiring precision current-to-voltage conversion. Its design supports efficient signal conditioning in sensors, optical devices, and accelerometers. For further exploration of Semiconductor Amplifiers, explore the comprehensive catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage ranging from 3V to 5.5V.
The gain bandwidth product of the OPA380AID is 90MHz, which supports high-frequency applications.
It can provide an output current of up to 150mA, allowing for effective signal driving.
The slew rate of this model is 80V/µs, enabling fast signal response.
This unit comes in an 8-pin SOIC package measuring 4.9mm in length and 1.58mm in height.
It operates within a temperature range of -40°C to 125°C, suitable for industrial environments.
This model is designed for surface mounting.
The supply current consumption is 7.5mA, contributing to energy efficiency.
This transimpedance amplifier features a single channel configuration.
It is ideal for applications requiring current-to-voltage conversion, such as photodetector amplification and sensor interfaces.
The OPA380AID is manufactured in India.
This model does not carry automotive standard certification and is intended for general electronic use.
