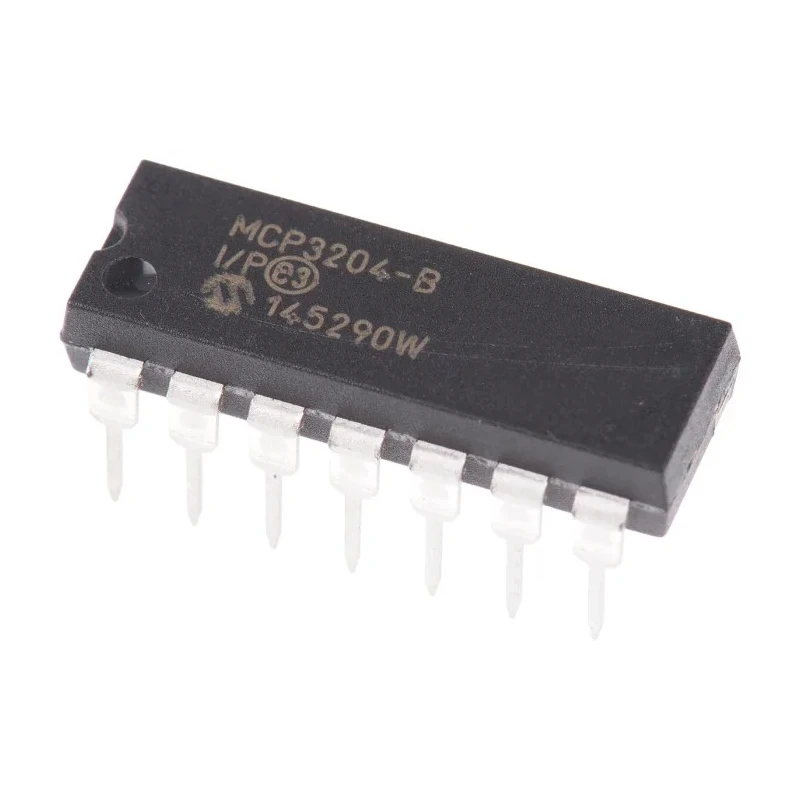

Microchip 4-Channel 12-Bit SAR ADC 100 ksps, 14-Pin PDIP MCP3204-BI/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 5.89mm |
| Length | 19.69mm |
| Model | MCP3204-BI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3204 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- Features 4 ADC channels with 12-bit resolution for accurate voltage measurement.
- Employs SAR architecture enabling reliable and precise data conversion.
- Supports SPI interface for seamless digital communication with microcontrollers.
- Operates within a temperature range of -40°C to 125°C for industrial applications.
- Supplies with through-hole mounting and PDIP 14-pin package for easy PCB integration.
- Operates with a minimum supply voltage of 5 V and maximum supply voltage of 5.5 V.
- Complies with automotive standard AEC-Q100 for robust reliability in automotive systems.
- Compact dimensions of 19.69 mm length and 5.89 mm height fit various embedded systems.
Product Description
Microchip MCP3204-BI/P is a 4-channel analogue-to-digital converter (ADC) utilizing a 12-bit successive approximation register (SAR) architecture with a sampling rate of 100 ksps. Packaged in a 14-pin PDIP through-hole format, this ADC is designed for precision voltage measurement and conversion in embedded systems and industrial electronics.
This device supports SPI interface communication enabling easy integration with microcontrollers and processors in various applications. It operates reliably over a wide temperature range from -40°C to 125°C, suitable for demanding industrial and automotive environments.
The MCP3204-BI/P supports a supply voltage between 5 V minimum and 5.5 V maximum and is compliant with the automotive AEC-Q100 standard, ensuring high reliability and performance for automotive systems.
With compact dimensions of 19.69 mm in length and 5.89 mm in height, the device facilitates easy PCB mounting and is ideal for use in laboratory measuring instruments, industrial control systems, and embedded electronics.
Key features include high resolution for fine measurement, multiple ADC channels, and adherence to industry standards to support accurate and stable data conversion in professional electronics applications.
4 ADC channels with 12-bit resolution ensure precise voltage sensing. SAR architecture provides rapid and accurate analogue-to-digital conversion. SPI interface allows straightforward digital communication. Operating temperature range is -40°C to +125°C for extended environmental tolerance.
Through-hole mounting in a 14-pin PDIP package eases hardware implementation. Supply voltage range of 5 V to 5.5 V supports stable operation. Meets AEC-Q100 automotive standard for durability in automotive sectors.
This MCP3204-BI/P ADC is widely used in industrial automation, laboratory instrumentation, automotive electronics, and general purpose embedded system design, enabling enhanced data acquisition precision and reliability.
Explore more semiconductor components and data converters at EnvMart for your electronic design needs.
Explore more products in our Analogue to Digital Converter category.
