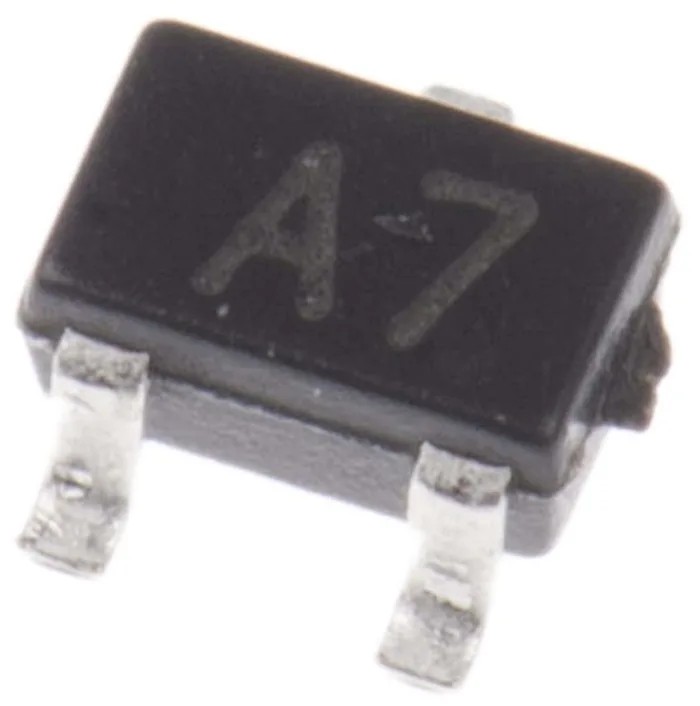

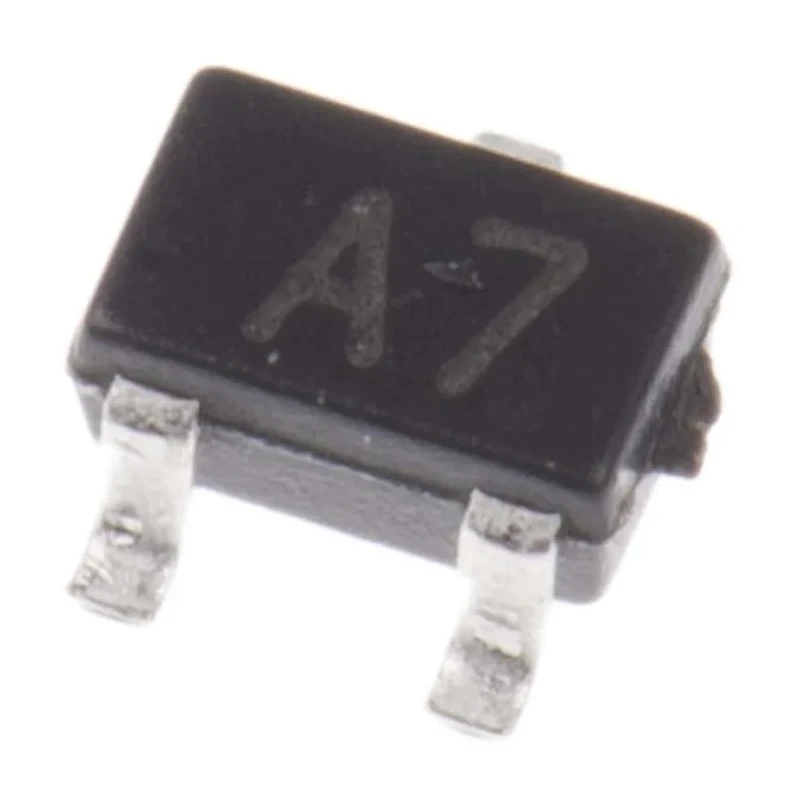

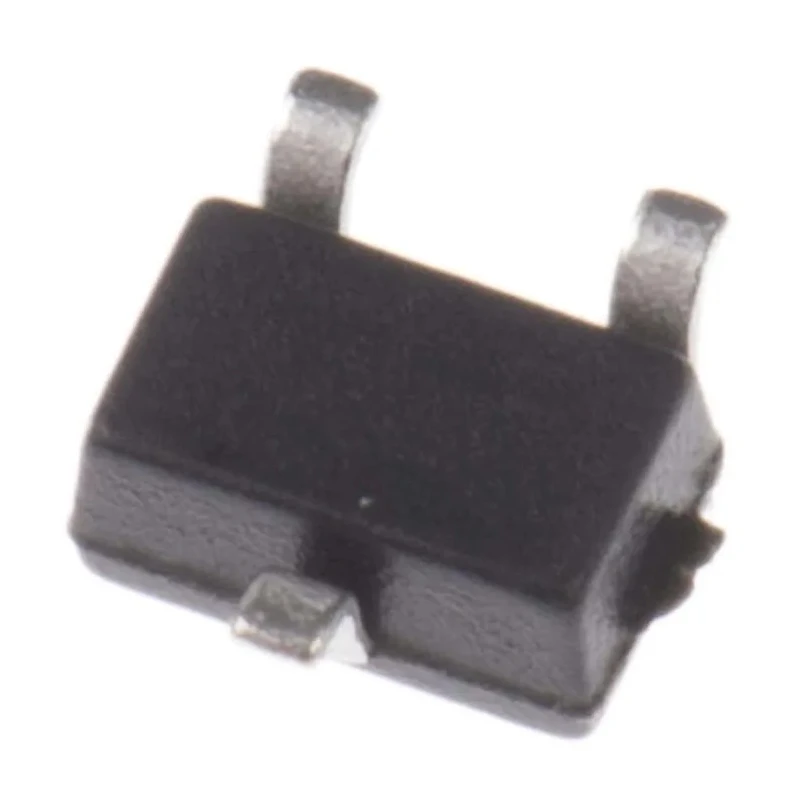

Taiwan Semiconductor Silicon Junction Switching Diode, Series, 150 mA, 3-Pin SC-70 Package BAV99W RF

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Silicon Junction Switching Diode, Series, 150 mA, 3-Pin SC-70 Package BAV99W RF

Name: Taiwan Semiconductor Silicon Junction Switching Diode, Series, 150 mA, 3-Pin SC-70 Package BAV99W RF
Brand: Taiwan Semiconductor
SKU: 372441
Price: 0.03 USD
Availability: InStock



Category Semiconductor Switching Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	Taiwan
Brand	Taiwan Semiconductor
Height	1mm
Length	2.1mm
Model	BAV99W RF
Width	1.35mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SC-70
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Power Dissipation Pd	200mW
Diode Configuration	Series
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	150mA
Maximum Peak Reverse Repetitive Voltage Vrrm	85V

Key Features

The device supports a maximum peak repetitive reverse voltage of 85 V ensuring robust operation.
Features a low maximum forward voltage drop of 1.25 V for efficient switching performance.
Exhibits a peak reverse recovery time of 4 nanoseconds suitable for high-speed switching.
Operates reliably over a temperature range from -65°C to 150°C, appropriate for industrial environments.
Compact dimensions with length 2.1 mm, width 1.35 mm, and height 1 mm enable space-saving PCB layouts.
Rated for a maximum power dissipation of 200 mW ensuring durability under specified load conditions.

Product Description

Taiwan Semiconductor BAV99W RF Silicon Junction Switching Diode is a high-performance discrete semiconductor component intended for low current switching applications. It features a series diode configuration within a compact SC-70 surface mount package, making it well suited for modern electronic designs.

With a maximum forward current rating of 150 mA, the diode supports moderate current demands. Its peak reverse recovery time of 4 ns enables rapid switching cycles, thereby minimizing switching losses in power electronics and signal processing circuits.

Designed to handle a maximum peak repetitive reverse voltage of 85 V along with a forward voltage of up to 1.25 V, it ensures efficiency and stability in small signal and switching applications. The device operates effectively in harsh temperature conditions, from -65°C up to 150°C, making it appropriate for use in automotive electronics, industrial controls, and consumer electronics.

Its compact size with dimensions of 2.1 mm length, 1.35 mm width, and 1 mm height facilitates high-density PCB assemblies without compromising performance. The diode’s maximum power dissipation of 200 mW assures it can sustain thermal stresses during continuous operation.

Maximum forward current rating of 150 mA suitable for small signal switching roles. Low forward voltage of 1.25 V reduces energy losses during conduction. Fast recovery time of 4 ns reduces switching delay and improves efficiency.

Wide operating temperature range from -65°C to 150°C supports diverse environmental conditions. Compact SC-70 surface mount package eases installation on space-constrained boards.

This Taiwan Semiconductor Switching Diode supports use cases in industrial electronics, power conversion, automotive circuits, telecommunications, instrumentation, control systems, and general-purpose semiconductor applications. Its small size and high reliability make it an essential component in modern electronics manufacturing.

Explore more semiconductor components and switching diodes at EnvMart to complement your electronic assembly requirements.
