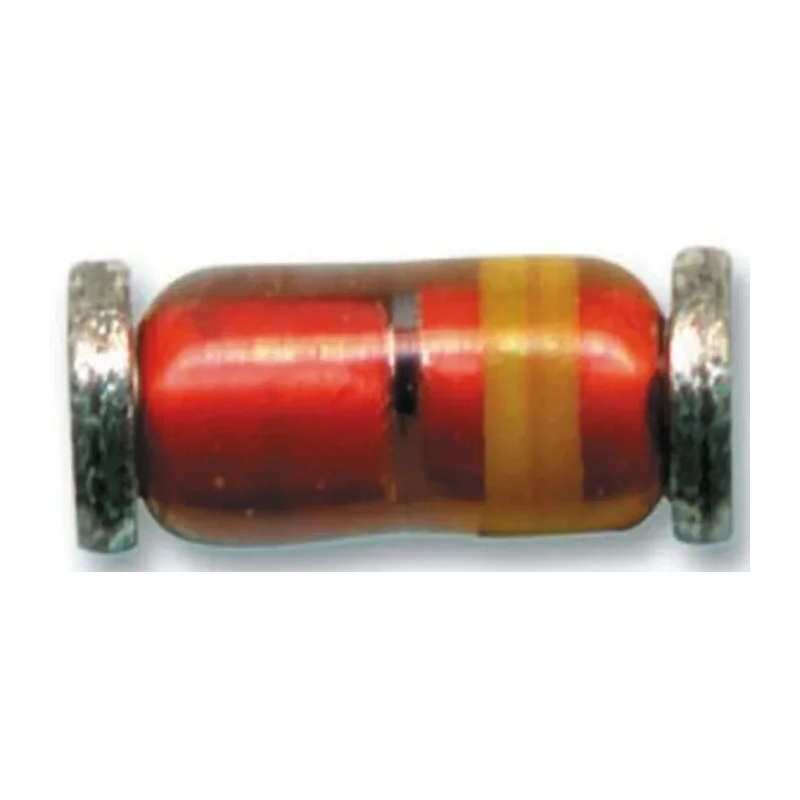

onsemi 100 V 200 mA Small Signal Switching Diode Surface Mount SOD-80 LL4148

Free Delivery in India | Lowest Global Shipping Charges

onsemi 100 V 200 mA Small Signal Switching Diode Surface Mount SOD-80 LL4148

Name: onsemi 100 V 200 mA Small Signal Switching Diode Surface Mount SOD-80 LL4148
Brand: onsemi
SKU: 390232
Price: 0.02 USD
Availability: InStock



Category Semiconductor Switching Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	3.6mm
Model	LL4148
Width	1.5mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	SOD-80
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	25nA
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	4ns
Nexperia Silicon Junction, Single, 200 mA, 2-Pin 75 V SOD-80C PMLL4148L,135Brand	Nexperia
ON Semi 100V 200mA, Silicon Junction Diode, 2-Pin SOD-80 LL4148Brand	ON Semiconductor

Key Features

Single diode configuration optimized for switching applications.
Peak reverse voltage of 100 V and continuous forward current of 200 mA.
Small outline with dimensions 3.6 mm length and 1.5 mm width and height.
Fast recovery time of 4 ns supports high speed switching.
Operates over temperature range from -65°C to 175°C.
Maximum forward voltage is rated at 1 V ensuring low power loss.
Minimal peak reverse current leakage of 25 nA enhances efficiency.
Robust peak surge current capability of 2 A for transient conditions.

Product Description

onsemi LL4148 Small Signal Switching Diode provides a highly reliable semiconductor switching solution with maximum reverse voltage of 100 V and continuous forward current of 200 mA. Packaged in a 2-pin SOD-80 surface mount format, this diode is designed for efficient and fast switching operations in modern electronic circuits.

This diode features a single diode configuration suitable for small signal switching applications and delivers a peak reverse repetitive voltage of 100 V, with a maximum forward voltage drop of 1 V to minimize energy loss. Its fast recovery time of 4 nanoseconds allows for rapid switching, making it ideal for high-frequency designs.

It operates within an extended temperature range of -65°C to 175°C, providing robustness in varying environmental conditions. The maximum non-repetitive forward surge current of 2 A equips it to handle occasional transient surges safely.

The diode's compact dimensions of 3.6 mm in length and 1.5 mm in width and height enable compact PCB layouts and ease of integration in automated assembly processes. Its extremely low peak reverse current of 25 nA contributes to efficient circuit operation and low power dissipation.

This component is well suited for use in electronic, industrial, automotive, and consumer electronic circuits requiring reliable switching diodes. Applications include signal switching, fast rectification, and protection circuits.

Single diode configuration optimized for switching applications. Peak reverse voltage of 100 V and continuous forward current of 200 mA. Small outline package dimensions simplify PCB layout. Fast recovery time supports high speed switching operations.

Wide operating temperature range from -65°C to 175°C. Low forward voltage drop ensures energy efficiency. Minimal leakage current reduces power loss. Capable of withstanding surge currents up to 2 A. Surface mount design supports modern manufacturing methods.

Explore more onsemi Semiconductor Switching Diodes and find related components in the semiconductor category at EnvMart for your electronic design needs.
