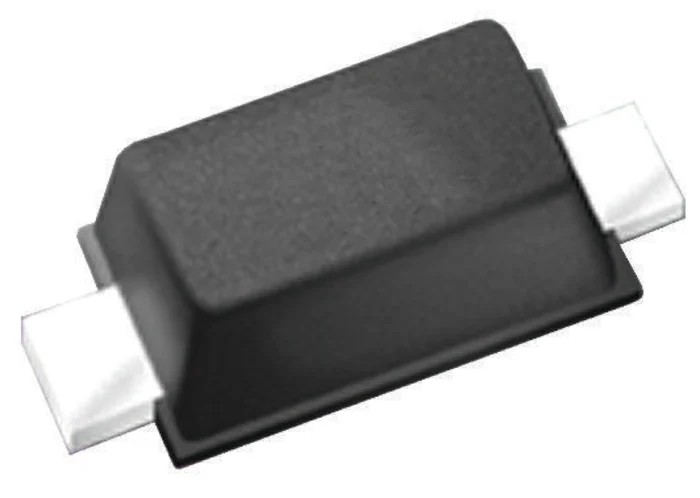

Taiwan Semiconductor Silicon Junction Switching Diode Single 0.8A 2-Pin 600V Sub SMA RS1JL R2

Taiwan Semiconductor RS1JL R2 Silicon Junction Switching Diode is a discrete semiconductor device designed for high-performance switching applications. It supports a maximum forward current of 0.8 A and can withstand peak reverse voltages up to 600 V, making it suitable for compact and efficient electronic designs.

This diode uses a silicon junction technology packaged in a Sub SMA surface mount package with 2 pins, allowing for seamless integration into modern PCB assemblies. Its small physical dimensions of 2.9 mm length, 1.9 mm width, and 1.43 mm height fit well into space-constrained electronics.

Operating temperature ranges from -55°C up to 150°C, ensuring reliability under a broad spectrum of environmental conditions encountered in industrial, laboratory, and commercial electronic systems. The device supports transient peak surge currents of 30 A, providing robustness against sudden electrical surges.

The diode’s peak reverse recovery time is 250 nanoseconds, offering fast switching capabilities necessary for power management circuits, inverter designs, and switching power supplies commonly used in HVAC, manufacturing equipment, and general industrial electronics.

This semiconductor switching diode is ideal for applications requiring reliable switching performance and high voltage endurance in surface mount formats for automated manufacturing processes.

Single silicon junction diode configuration for efficient switching performance. Surface mount package type Sub SMA with 2 pins for easy PCB assembly. Maximum forward voltage of 1.3 volts ensures low power loss. Operates reliably between -55°C and 150°C temperature range.

Peak non-repetitive forward surge current up to 30 Amperes for transient protection. Compact dimensions featuring length 2.9 mm, width 1.9 mm, and height 1.43 mm. Peak reverse recovery time of 250 nanoseconds suitable for fast switching circuits.

Automotive standard is not applicable for this component. Explore more Semiconductor Switching Diodes and electronic components on EnvMart to strengthen your industrial and commercial electronics applications.
