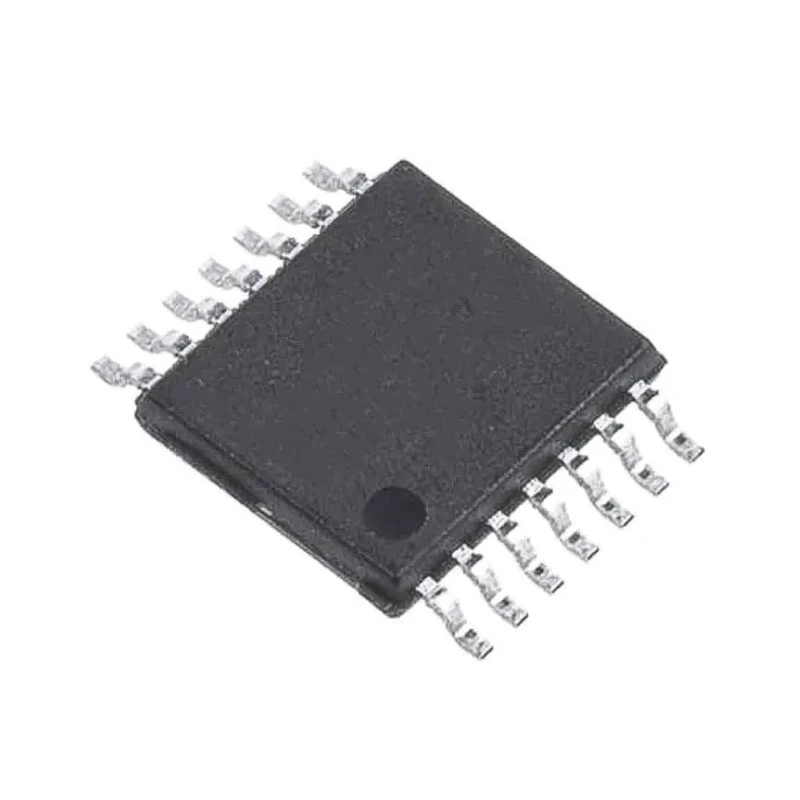

STMicroelectronics 4-Channel Micropower Comparator Push Pull Output, 2.7V to 10V Supply, 500ns Response, 14-Pin TS864IPT

STMicroelectronics TS864IPT is a high-performance 4-channel micropower comparator featuring push-pull outputs in a compact 14-pin TSSOP package. It operates over a wide supply voltage range from 2.7 V to 10 V and is designed for applications requiring low power consumption and fast response times. With a consumption of just 6 μA per comparator at the minimum supply voltage, it is ideally suited for battery-powered systems and portable devices.

This comparator family features rail-to-rail CMOS inputs that allow the device to sense the entire voltage range of the supply, improving signal accuracy and effectiveness in low voltage environments. The push-pull output structure simplifies interfacing with microcontrollers by eliminating the need for additional pull-up resistors. The device offers a typical response time of 500 ns at 2.7 V with a 100 mV overdrive, making it suitable for high-speed signal processing tasks.

Its operational temperature range from -40°C to 85°C makes the TS864IPT ideal for use in harsh industrial and automotive environments. The product also boasts robust protection features including 2 kV electrostatic discharge (ESD) protection and latch-up immunity classified as Class A, ensuring device reliability and longevity.

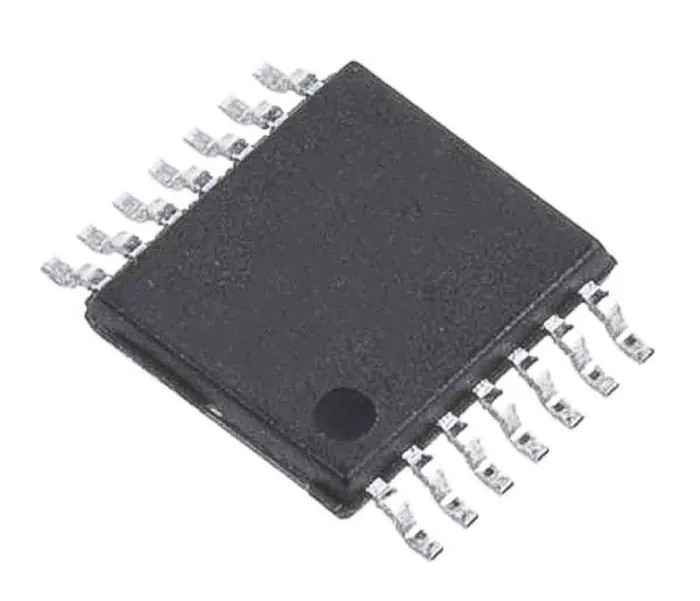

The compact TSSOP14 package measures 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, facilitating space-saving designs in printed circuit boards. This device is applicable in a wide range of electronic circuits such as signal conditioning, threshold detection, battery-operated instruments, and automotive electronics.

Micropower design with 6 μA current consumption per channel at minimal supply voltage. Rail-to-rail CMOS inputs enabling accurate sensing across the entire supply voltage range. Push-pull output for direct microcontroller compatibility without external resistors.

Wide operating voltage from 2.7 V to 10 V supports various low power applications. Fast response time of 500 ns ensures prompt switching performance. Wide temperature range suits industrial and automotive environment requirements.

Robust ESD protection and latch-up immunity for enhanced durability. Small footprint 14-pin TSSOP package suitable for compact electronic designs.

STMicroelectronics TS864IPT comparator is ideal for industrial, automotive, measurement, and embedded electronics applications where high-speed, low power, and reliable comparators are required. Browse additional semiconductor and comparator products at EnvMart for compatible components and related electronics solutions.
