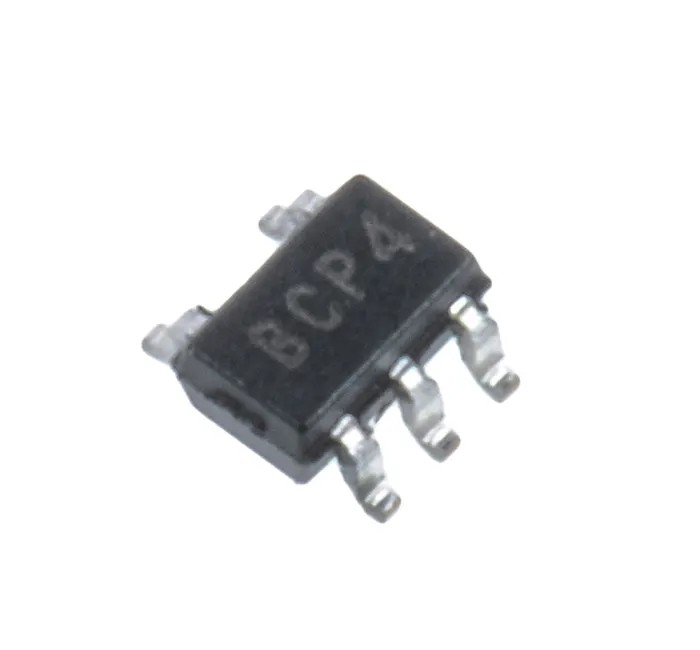

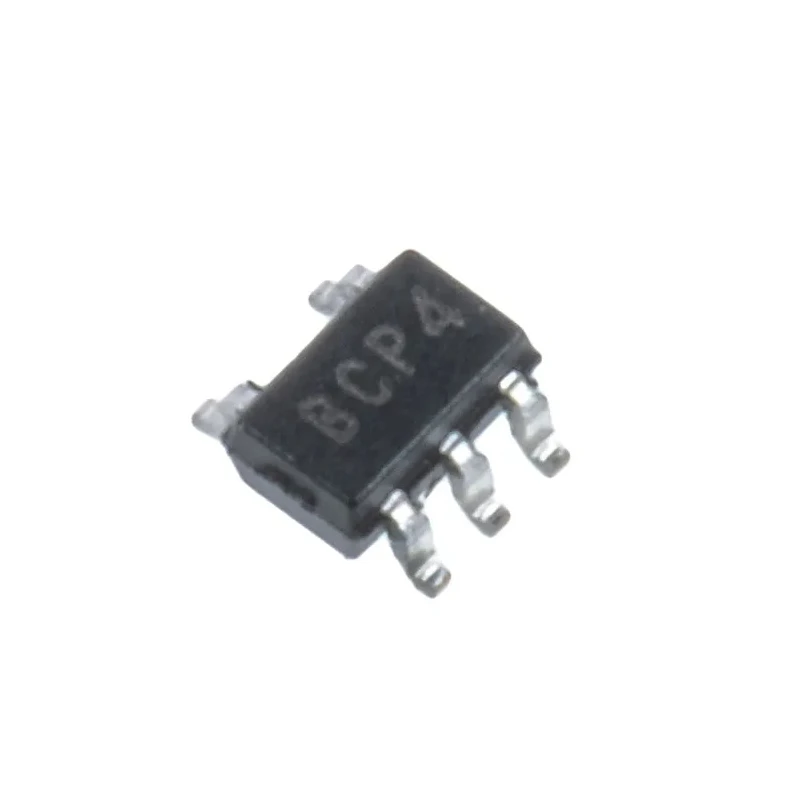

Microchip General Purpose Comparator Push Pull Output 20 ns Response Time 3 V to 5.5 V 5-Pin SC-70 MCP6561T-E/LT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 2mm |
| Model | MCP6561T-E/LT |
| Width | 1.25mm |
| Mount Type | Surface |
| Output type | Push Pull |
| Series | MCP6561 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Comparator Type | General Purpose |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 100μA |
| Typical Response Time | 20ns |
Key Features
- Designed for surface mounting on PCBs.
- Features push-pull output for efficient switching.
- Offers a typical response time of 20 nanoseconds for fast comparison.
- Operates reliably over a wide temperature range from -40°C to 125°C.
- Low supply current consumption of 100μA optimizes power usage.
- Compliant with AEC-Q100 automotive standard for reliability.
- Compact dimensions of 2mm length, 1.25mm width, and 1mm height.
- Suitable for general-purpose analog signal comparison in electronic circuits.
Product Description
Microchip MCP6561T-E/LT is a high-performance general-purpose comparator designed for efficient analog signal detection and switching applications. It features a push-pull output stage delivering fast switching with a typical response time of 20 nanoseconds. This device operates from a low voltage supply ranging between 3 V and 5.5 V and consumes a minimal supply current of 100 microamps, making it ideal for low-power applications.
The MCP6561T-E/LT comes in a small 5-pin SC-70 package, supporting surface mounting on PCBs with compact dimensions of 2mm length, 1.25mm width, and 1mm height. It is engineered to perform reliably across a wide operating temperature range from -40°C to 125°C and complies with the AEC-Q100 automotive qualification standard, ensuring robustness in automotive and industrial environments.
This comparator is typically used in electronic designs requiring precise voltage level comparisons, including signal conditioning, threshold detection, and switching power supplies. Its push-pull output improves switching efficiency and reduces output stage distortion compared to open-collector comparators.
As a versatile semiconductor component of the MCP6561 series, this comparator is suitable for industrial, automotive, consumer electronics, and communications applications demanding quick and accurate analog signal comparison.
Designed for surface mounting on PCBs. Features push-pull output for efficient switching. Offers a typical response time of 20 nanoseconds for fast comparison. Operates reliably over a wide temperature range from -40°C to 125°C.
Low supply current consumption of 100μA optimizes power usage. Compliant with AEC-Q100 automotive standard for reliability. Compact dimensions of 2mm length, 1.25mm width, and 1mm height. Suitable for general-purpose analog signal comparison in electronic circuits.
Explore more electronics and semiconductor components on EnvMart to find complementary amplifiers, comparators, and integrated circuits for your projects.
Explore more products in our Semiconductor Comparator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical response time of this model is 20 nanoseconds, allowing for fast comparison in electronic circuits.
It operates reliably with a supply voltage range of 3 V to 5.5 V.
This unit has compact dimensions of 2 mm in length, 1.25 mm in width, and 1 mm in height.
The MCP6561T-E/LT features a push-pull output, which enhances switching efficiency.
It consumes a low supply current of 100 microamps, making it suitable for low-power applications.
This comparator operates over a wide temperature range from -40°C to 125°C.
It comes in a 5-pin SC-70 package, designed for surface mounting on PCBs.
Yes, it is compliant with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This model features a single channel for general-purpose analog signal comparison.
It is suitable for applications requiring precise voltage level comparisons, such as signal conditioning and threshold detection.
The maximum operating temperature for the MCP6561T-E/LT is 125°C.
The minimum operating voltage for this model is 3 V.
