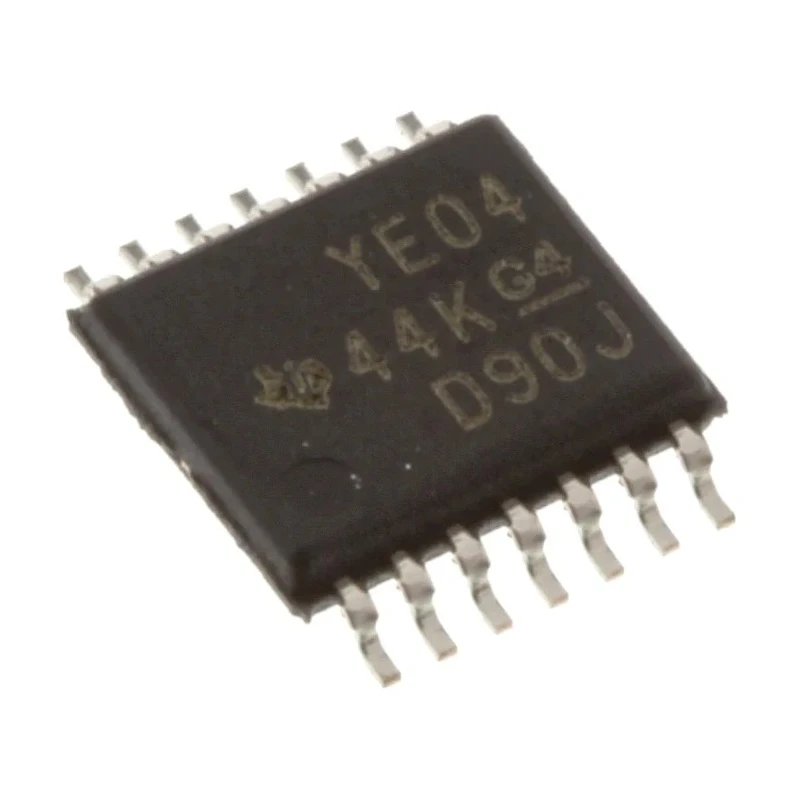

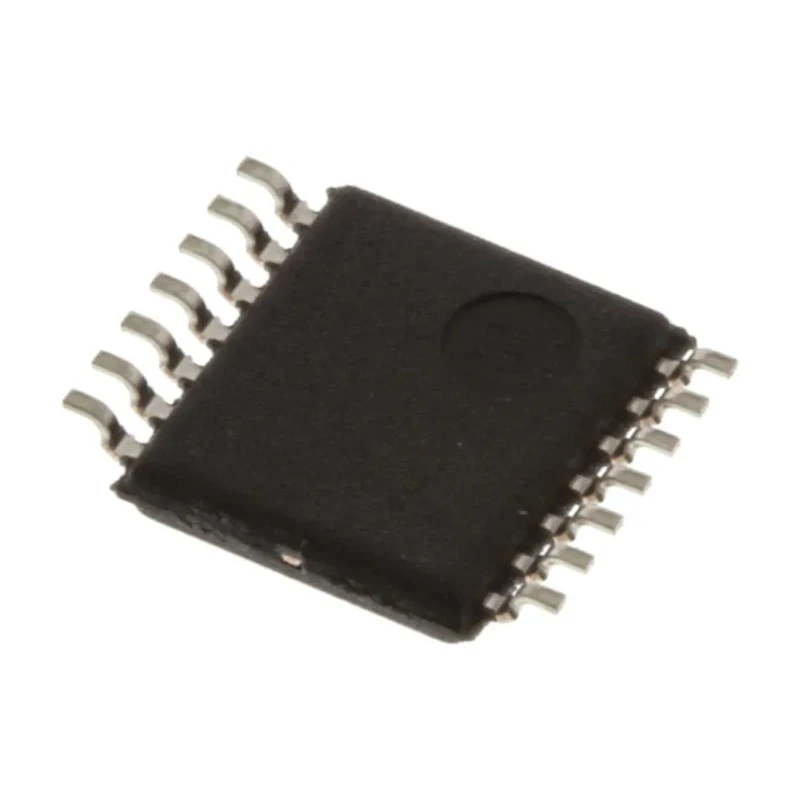

Texas Instruments Voltage Level Shifter Bi-Directional Logic Translator 14-Pin TSSOP TXB0104PWR

Texas Instruments TXB0104PWR is a high-performance voltage level shifter designed for bi-directional logic voltage translation. It supports a minimum supply voltage of 1.2V and a maximum supply voltage of 5.5V, making it suitable for interfacing circuits operating at different voltage domains in electronic, industrial, and communication equipment. Packaged in a 14-pin Thin Shrink Small Outline Package (TSSOP), this component facilitates efficient surface mount assembly and compact PCB layouts.

The device features two voltage level translator elements within a single chip, providing a 3-state output functionality useful in complex digital systems. With a typical maximum propagation delay time of 4 nanoseconds at capacitive loads, it ensures fast signal transition and reliable timing performance. The voltage level translator supports a wide operating temperature range from -40°C to 85°C, accommodating industrial environments and temperature-sensitive applications.

Its maximum low-level output current is 20 microamperes and maximum high-level output current is -0.02 milliamperes, designed for optimal low power consumption and signal integrity. The length and height dimensions of 5 mm and 1.15 mm respectively enable easy integration into compact electronic devices. Although this device does not conform to automotive standards, it is widely applicable in consumer electronics, industrial automation, and instrumentation circuitry requiring voltage-level interfacing.

This voltage level translator supports a wide supply voltage range from 1.2V to 5.5V. Designed for surface mounting with a 14-Pin TSSOP package. Bi-directional translator with 2 elements per chip and 3-state output. Maximum propagation delay time of 4ns at capacitive load.

Operating temperature range from -40°C to 85°C. Compact size of 5 mm length and 1.15 mm height. Maximum output currents: 20μA low level, -0.02mA high level. Suitable for industrial, electronic components, and power management applications.

This Texas Instruments Voltage Level Shifter is ideal for use in electronics manufacturing, circuit design, industrial automation controls, and power supply management. It enables reliable voltage domain translation for various logic systems, enhancing the versatility and interoperability of modern electronic assemblies.
