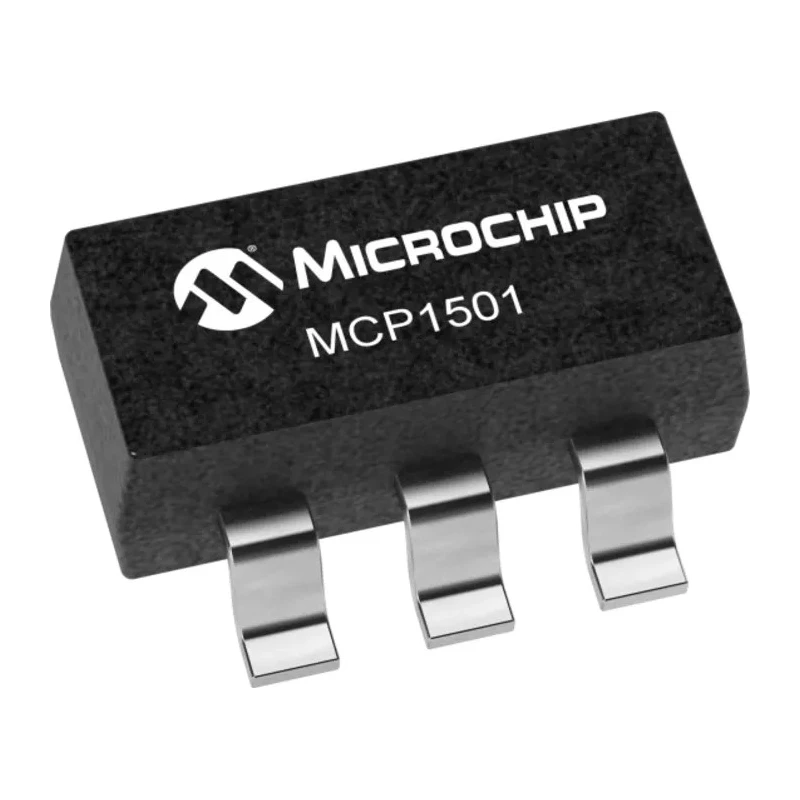

Microchip Precision Series Voltage Reference, 0.1% Accuracy, 4.096V, 30mA, 6-Pin SOIC, MCP1501T-40E/CHY
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | MCP1501T-40E/CHY |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1501T |
| Temperature Coefficient | 10 ppm/°C |
| Output Current | 30mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 70 ppm/mA (Source), 40 ppm/mA (Sink) |
| Minimum Operating Temperature | -40°C |
| Reference Type | Precision |
| Maximum Input Voltage | 5.5V |
| Minimum Input Voltage | 4.2V |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Reference Voltage | 4.1V |
| Initial Accuracy | 0.1 % |
Key Features
- Precision voltage reference IC offering 0.1% initial accuracy.
- Stable 4.096V output ideal for high-precision analog and measurement systems.
- Operates from 4.2V to 5.5V input, supporting a wide range of electronics platforms.
- 6-pin SOIC package allows quick integration into electronic assemblies.
- Supports up to 30mA output current, suitable for sourcing and sinking applications.
- Temperature range from -40°C to 125°C accommodates industrial and automotive environments.
- Low drift bandgap-based design minimizes long-term error.
- Compliant with AEC-Q100 automotive standard for reliability.
Product Description
The Microchip MCP1501T-40E/CHY is a high-precision voltage reference IC designed to deliver a stable 4.096V output with initial accuracy as tight as 0.1%. With a robust design based on bandgap technology and chopper-based amplifiers, it offers extremely low drift and excellent performance in accuracy-critical analog circuits.
Packaged in a compact 6-pin SOIC format, this voltage reference integrates easily into PCB layouts where board space is at a premium. It operates within a wide input voltage range from 4.2V to 5.5V and is capable of both sourcing and sinking up to 30mA output current, supporting a diverse array of industrial, instrumentation, and automotive use cases.
The MCP1501T-40E/CHY features a low temperature coefficient of 10 ppm/°C, enabling stable output across the full operating range of -40°C to 125°C. Its load regulation characteristics (70 ppm/mA source, 40 ppm/mA sink) help maintain consistent output even with changing system loads. This makes it well-suited for demanding measurement and data acquisition systems, power management circuits, and as a reference standard in laboratory instrumentation.
Precision 4.096V reference with 0.1% initial accuracy for accurate voltage regulation in analog and mixed-signal circuits. Wide industrial temperature range from -40°C to +125°C ensures operational stability in harsh environments.
Low supply current (typical 140 μA) supports low-power designs. Bandgap-based internal architecture with chopper amplifiers reduces drift and noise, providing better long-term reliability. 6-pin SOIC package meets automotive AEC-Q100 standards for quality and performance.
Suitable for use as a voltage reference in precision measurement equipment, data converters, medical devices, industrial controllers, and automotive systems. Fixed output simplifies design integration for power management and analog circuits.
Popular in test & measurement, process control, IoT, laboratory, and automotive electronics, the MCP1501T-40E/CHY delivers dependable, precise voltage reference performance in demanding applications.
Browse EnvMart for more Microchip Voltage References and semiconductors for your industrial and laboratory projects.
