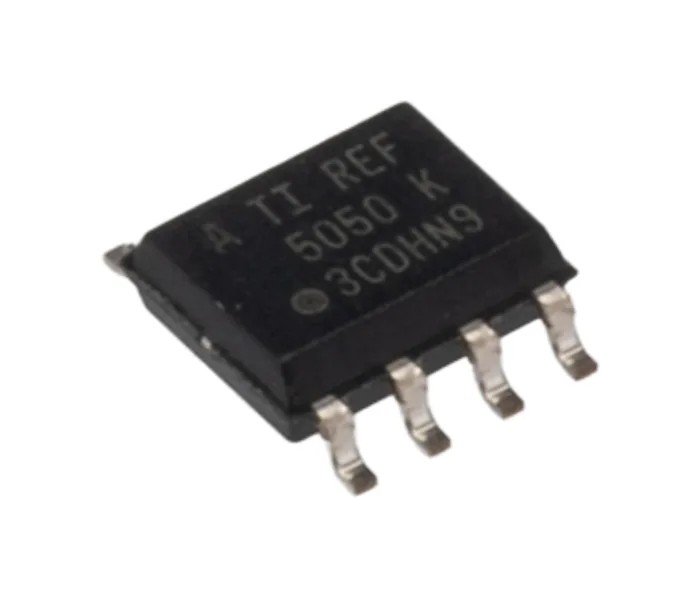

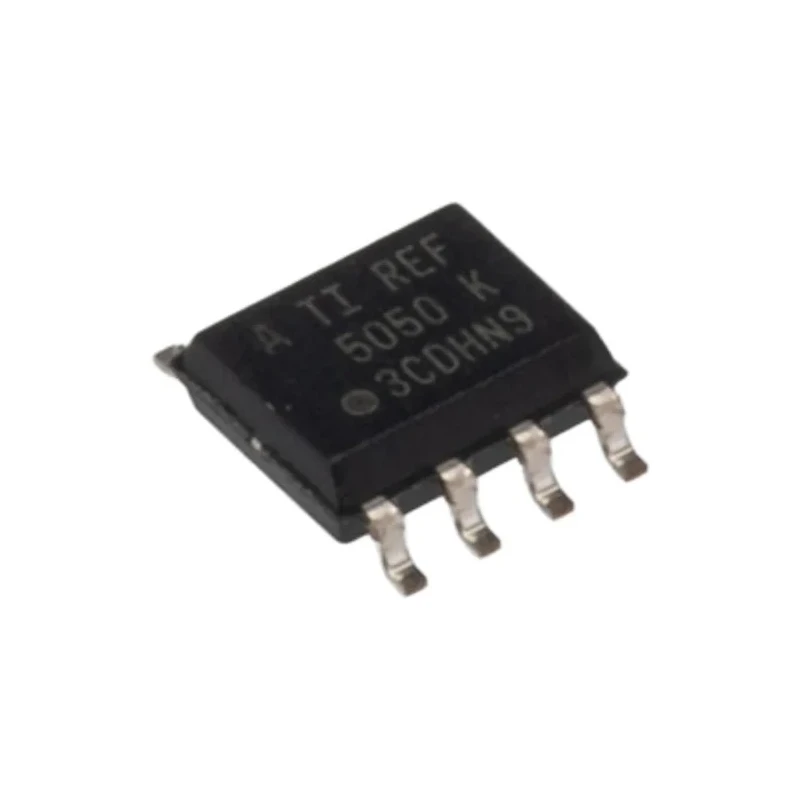

Texas Instruments Fixed Series Voltage Reference 5V ±0.05% 8-Pin SOIC REF5050AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 5mm |
| Model | REF5050AID |
| Mount Type | Surface |
| Output type | Fixed |
| Series | REF5050 |
| Temperature Coefficient | 3 ppm/°C |
| Output Current | 10mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 50 ppm/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 18V |
| Line Regulation | 1 ppm/V |
| Minimum Input Voltage | 5.2V |
| Pin Count | 8 |
| Reference Voltage | 5V |
| Initial Accuracy | ±0.05 % |
Key Features
- Fixed reference voltage of 5 volts ensures stable output.
- Initial accuracy rating of ±0.05% maintains precise voltage regulation.
- Package type is surface mount SOIC with 8 pins for compact PCB mounting.
- Operates in temperature range from -40°C to 125°C for industrial reliability.
- Maximum input voltage is 18 volts, supporting various power sources.
- Topology is series type, designed for accuracy and stability.
- Output current capacity up to 10mA for moderate load demands.
- Line regulation of 1 ppm/V and load regulation of 50 ppm/mA for stable voltage under varying conditions.
Product Description
Texas Instruments REF5050AID Fixed Series Voltage Reference is a highly accurate, stable voltage reference IC designed for precision electronic applications. Featuring a fixed 5V output voltage with an exceptional initial accuracy of ±0.05%, this 8-Pin SOIC packaged component is optimized for surface mount technology, supporting compact and reliable PCB layouts.
This IC operates efficiently over a wide temperature range of -40°C to 125°C, ensuring consistent performance in harsh industrial environments. The series topology and a maximum input voltage of 18V facilitate robust voltage regulation in power management circuits. Its line regulation of 1 ppm/V and load regulation of 50 ppm/mA contribute to minimal voltage deviations due to input or load variations.
The REF5050AID's output current capability of 10mA is adequate for various signal conditioning and sensor reference needs. With compact physical dimensions of 5 mm length and 1.5 mm height, this device suits applications demanding space conservation without compromising precision. While not certified for automotive standards, it is ideal for laboratory instruments, industrial machines, and power management modules requiring exact voltage references.
Fixed 5V voltage output for precise electronic reference. Initial accuracy of ±0.05% to ensure minimal voltage drift. Surface-mount 8-Pin SOIC package for ease of integration. Wide operating temperature range (-40°C to 125°C) for industrial use.
Line and load regulation values promote stable voltage output under varying conditions. Maximum input voltage of 18V suitable for diverse power sources. Output current up to 10mA supports various load requirements. Compact dimensions allow for efficient PCB layouts.
This voltage reference IC is essential for industrial power management circuits, laboratory measurement devices, and electronics requiring stringent voltage precision and stability. Consider browsing the Electronics & Electricals category for additional semiconductor and Voltage Reference solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The REF5050AID provides a fixed output voltage of 5 volts.
It has an initial accuracy rating of ±0.05%, ensuring precise voltage regulation.
The maximum input voltage for this model is 18 volts.
It can deliver an output current of up to 10mA, suitable for moderate load demands.
This model operates efficiently over a temperature range of -40°C to 125°C.
It is packaged in an 8-Pin SOIC format, optimized for surface mount technology.
The line regulation is 1 ppm/V and the load regulation is 50 ppm/mA, promoting stable voltage under varying conditions.
The REF5050AID has a height of 1.5 mm and a length of 5 mm, making it compact for PCB layouts.
This voltage reference utilizes a series topology, designed for accuracy and stability.
The temperature coefficient for the REF5050AID is 3 ppm/°C, indicating minimal drift with temperature changes.
It is ideal for laboratory instruments, industrial machines, and power management modules requiring precise voltage references.
The country of origin for this model is India.
