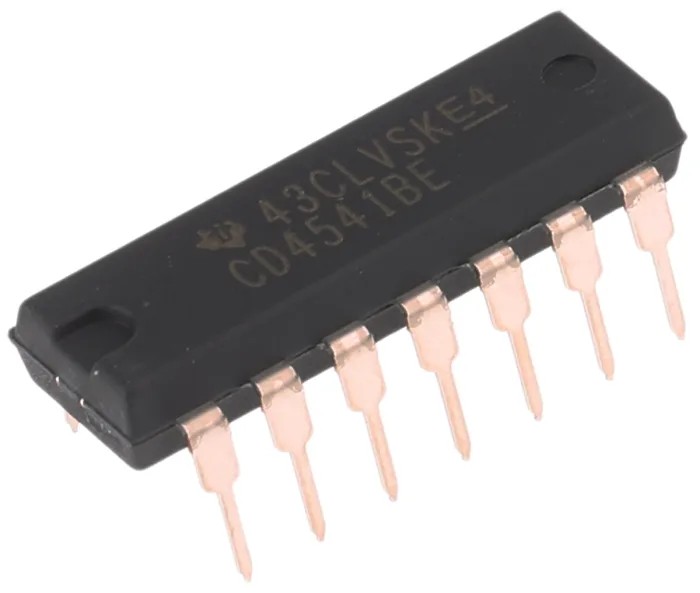

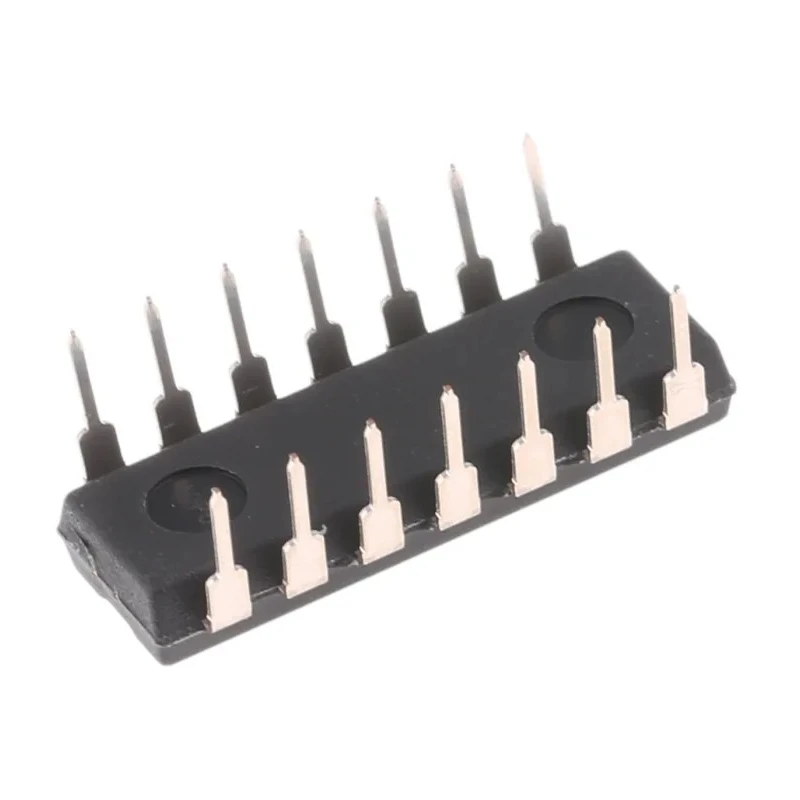

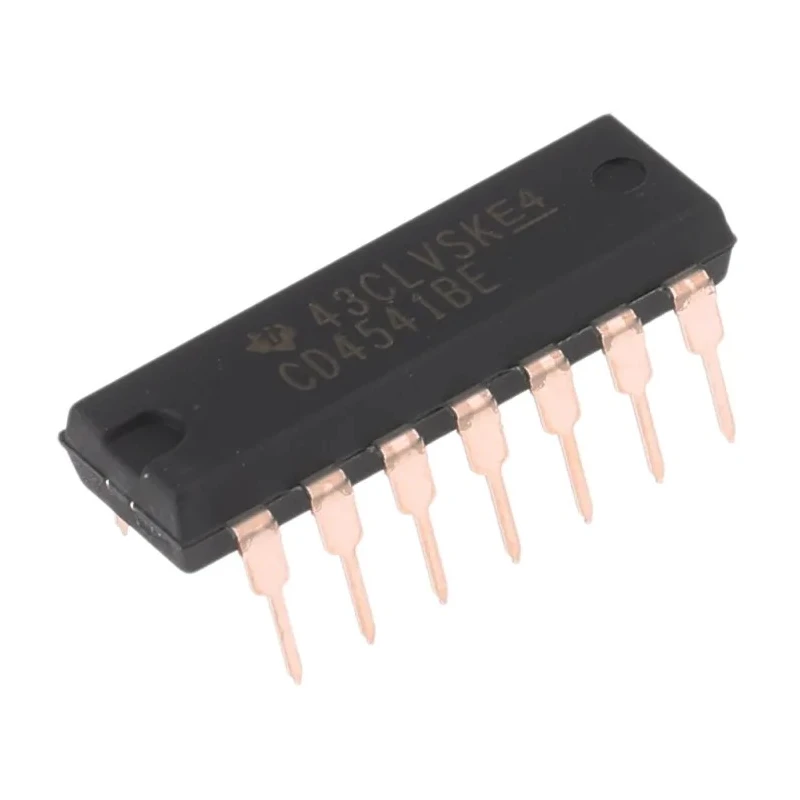

Texas Instruments Programmable Timer Circuit 3-18V, 1 Internal Timer, 14-Pin PDIP CD4541BE

Texas Instruments CD4541BE Programmable Timer Circuit is a high-performance timing IC featuring a single internal timer and a 14-pin PDIP through-hole packaging. It operates reliably with supply voltages ranging from 3 V to 18 V and is engineered to function across a wide temperature range of -55°C to 125°C, ensuring durability in demanding conditions.

This device belongs to the Texas Instruments 4000 Series CMOS Logic Family, which includes versatile multivibrators and programmable timers widely used in electronic circuit design for generating stable time delays and oscillations.

The CD4541BE is compliant with RoHS standards, aligning with environmental regulations for lead-free and hazardous substance-free components, making it suitable for modern manufacturing needs.

Its 14-pin PDIP package allows for easy mounting on printed circuit boards with standard through-hole assembly techniques. The compact size (19.3 mm length, 4.57 mm height) optimizes board space while providing reliable performance.

Operates over a broad voltage range (3 V to 18 V) ensuring flexibility in various system configurations. Wide operating temperature from -55°C to 125°C provides robust performance in industrial and automotive applications.

Part of the 4000 Series CMOS Logic devices for programmable timing applications. RoHS compliant component suitable for environmentally conscious designs. Through-hole mount for straightforward PCB integration. Single internal timer embedded in a 14-pin PDIP package.

Compact and durable design for long-term electronic circuit use. Widely applied in electronic manufacturing, instrumentation, and timing control circuits. Explore the Texas Instruments Timer Circuits range and other semiconductor components on EnvMart for your electronic design and production needs.
