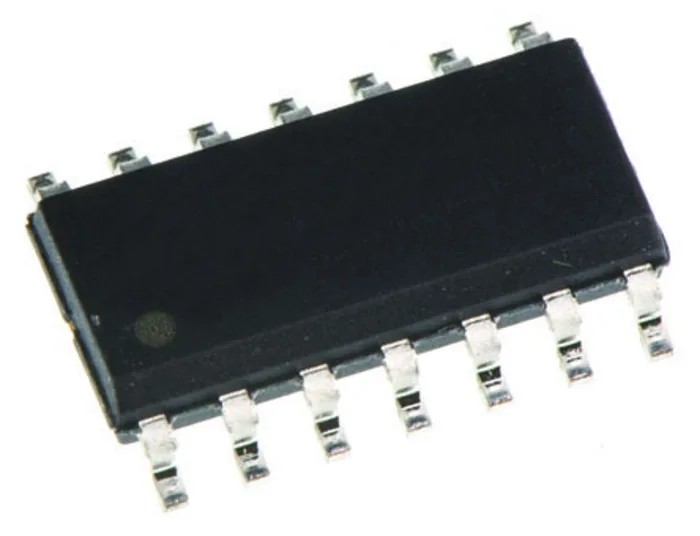

Texas Instruments TLC Timer Circuit 2 Internal Timers 14-Pin SOIC Surface Mount TLC556IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | TLC556IDR |
| Mount Type | Surface |
| Series | TLC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3V |
| Number of Internal Timers | 2 |
| Maximum Propagation Delay Time @ M | 75ns |
| Propagation Delay Test Condition | 10pF |
Key Features
- Features 2 internal timers enabling versatile timing configurations.
- Operates within a supply voltage range of 3V to 18V.
- Maximum operating temperature is rated at 85°C for reliable performance.
- Compact dimensions with length 8.65mm and height 1.58mm.
- Typical maximum propagation delay time is 75ns at 10pF load.
- Device supports monostable and astable modes for time delay and oscillator functions.
- Includes a stable precision timer suitable for timing pulses from microseconds to minutes.
- Surface mount type suitable for efficient PCB assembly and automated insertion.
Product Description
The Texas Instruments TLC556IDR is a dual internal timer circuit housed in a compact 14-Pin SOIC surface mount package. It is designed for generating accurate time delays or pulses essential for various electronic applications in industrial, laboratory, and manufacturing environments.
This timer offers a stable and highly precise timing solution operating from a supply voltage of 3V to 18V. Its maximum operating temperature is rated at 85°C, ensuring functionality even in demanding conditions. It has a maximum propagation delay of 75ns at a test condition of 10pF, which allows for responsive timing control.
The device can be configured in monostable (one-shot) or astable (oscillator) modes, with timing periods ranging from less than microseconds to several minutes. This flexibility makes it suitable for timing generators, pulse generation, and oscillator applications.
With its surface mount design and compact size of 8.65mm length by 1.58mm height, the TLC556IDR fits well in modern automated electronic assembly lines, enhancing production efficiency.
Includes 2 internal timers for flexible timing applications. Operates reliably between 3V and 18V supply voltages. Compact 14-Pin SOIC package for surface mounting. Maximum operating temperature of 85°C supports harsh environments.
Propagation delay time of 75ns ensures timing precision. Supports monostable and astable modes for versatile timing. Suitable for industrial, laboratory, and manufacturing electronic circuits. Stable and precise timing generation from microseconds to minutes.
This timer circuit is ideal for electronics designers seeking reliable, precise timing solutions in compact form factors. It is commonly used in clock generation, frequency generation, time delay circuits, and various pulse timing applications.
Explore a wide range of Timer Circuits and semiconductor components in the EnvMart catalog to support your industrial, laboratory, and electronic product design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 3V to 18V.
The TLC556IDR has a length of 8.65mm and a height of 1.58mm.
The maximum operating temperature is rated at 85°C.
This model features 2 internal timers, allowing for versatile timing configurations.
The maximum propagation delay time is 75ns at a test condition of 10pF.
It supports monostable (one-shot) and astable (oscillator) modes for various timing applications.
The minimum operating temperature is -40°C.
The TLC556IDR is housed in a 14-Pin SOIC surface mount package.
It is suitable for applications such as clock generation, frequency generation, and time delay circuits.
The TLC556IDR has a pin count of 14.
The propagation delay time of 75ns is specified at a load of 10pF, which is important for ensuring timing precision in applications.
The country of origin for this model is India.
