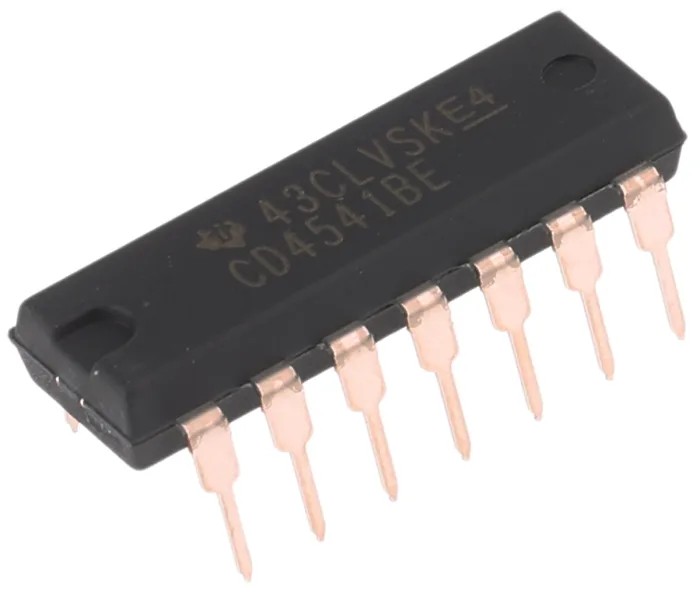

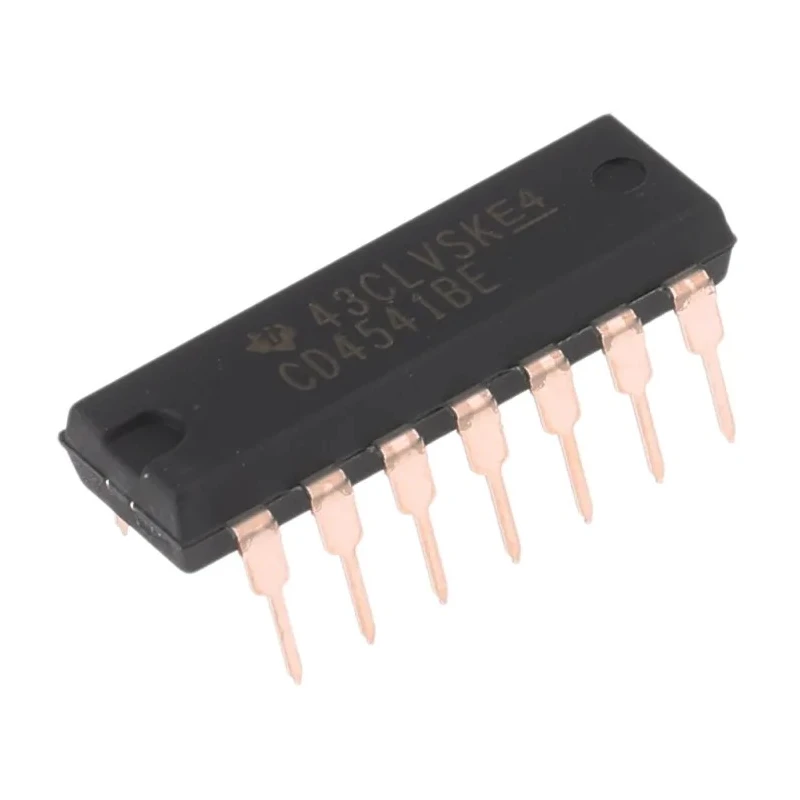

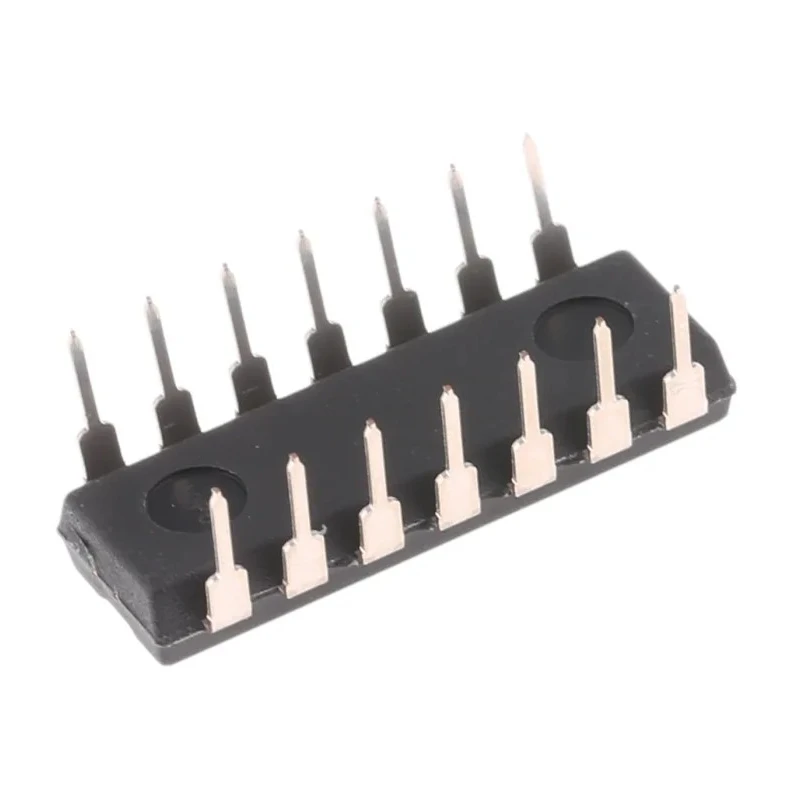

Texas Instruments Programmable Timer Circuit CD4541BE, 14-Pin PDIP, Wide 3-18V Supply Voltage CD4541BE

Texas Instruments CD4541BE Programmable Timer Circuit is a versatile electronic component designed for precision timing applications. Featuring a single internal timer within a 14-Pin PDIP package, it supports a wide operating supply voltage range from 3 V to 18 V, making it adaptable to various circuit needs.

This device employs through-hole mount technology, facilitating easy insertion and soldering on standard printed circuit boards. Its operational temperature range of -55°C to 125°C ensures dependable function even in demanding industrial and environmental conditions.

Compact with dimensions of 19.3mm length and 4.57mm height, the CD4541BE is RoHS compliant, reflecting its adherence to environmental safety directives. It is part of the 4000 series CMOS logic family known for low power consumption and robust performance.

Widely used in electronic timing, frequency control, and programmable timer circuits, this component suits applications across industrial manufacturing, laboratory instrumentation, electronic development, and HVAC control systems requiring accurate timing.

Equipped with a single internal timer for precise timing applications. Offers through-hole mount type suitable for prototyping and PCB assembly. Operates efficiently within temperature range of -55°C to 125°C. Compact dimensions with length 19.3mm and height 4.57mm.

Complies with RoHS standards ensuring environmentally safe construction. Belongs to the 4000 series CMOS logic family delivering reliable performance. Ideal for electronic timing and frequency control applications in industrial and laboratory contexts.

The product is supplied in a tube packaging format for batch assembly. This programmable timer circuit delivers consistency and accuracy essential for modern industrial and laboratory electronic designs.
