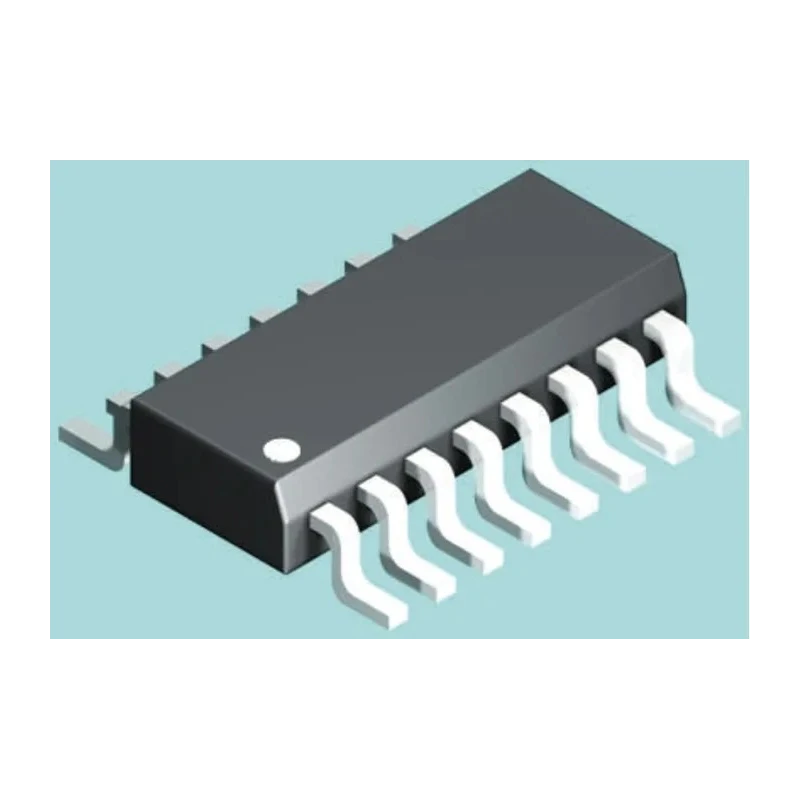

onsemi 2 Monostable Multivibrator 4000 Series Logic IC 16-Pin SOIC MC14538BDR2G

onsemi MC14538BDR2G is a high-performance monostable multivibrator IC featuring 2 monostable multivibrator elements from the 4000 CMOS logic family. It is designed with a wide operating voltage range from 3V to 18V, making it suitable for various industrial and automotive electronics applications requiring reliable pulse generation and timing.

Housed in a compact 16-pin SOIC surface mount package, this device ensures easy integration into printed circuit boards with space constraints. The minimum pulse width of 80 nanoseconds and maximum propagation delay of 600 nanoseconds support precise timing applications where speed and accuracy are critical.

The device features low quiescent current consumption of 700 microamperes, enhancing energy efficiency for battery-powered or low power designs. It is rated for operation in harsh temperature environments from -55°C to 125°C, complying with automotive-grade AEC-Q100 standards, which makes it ideal for automotive electronic control units and industrial systems requiring high reliability.

The package dimensions of 10 mm length and 1.5 mm height allow compact board designs without sacrificing performance. The robust operating voltage and temperature ranges support diverse applications including industrial automation, automotive electronics, instrumentation, and timer circuits.

Engineers can leverage the onsemi MC14538BDR2G for creating precise monostable pulse outputs in digital signal processing and timing generation systems. The 2 monostable multivibrator elements per chip enable multi-channel timing solutions within a single compact package.

The device contains 2 monostable multivibrators for pulse generation applications. Minimum pulse width capability is 80 nanoseconds, allowing for precise timing control. Maximum quiescent current is 700 microamperes, ensuring low power consumption.

Designed for surface mount applications with a SOIC 16-pin package type. Operating temperature range spans from -55°C to 125°C for robust industrial use. Maximum propagation delay time at capacitive load is 600 nanoseconds, suitable for timing-sensitive circuits.

Complies with automotive standard AEC-Q100, ensuring reliability in automotive electronics. Compact dimensions with a length of 10 mm and height of 1.5 mm facilitate PCB layout efficiency.

Discover the wide range of semiconductor components available in the Monostable Multivibrators category at EnvMart, including this onsemi MC14538BDR2G model, designed to meet rigorous industrial and automotive standards.
