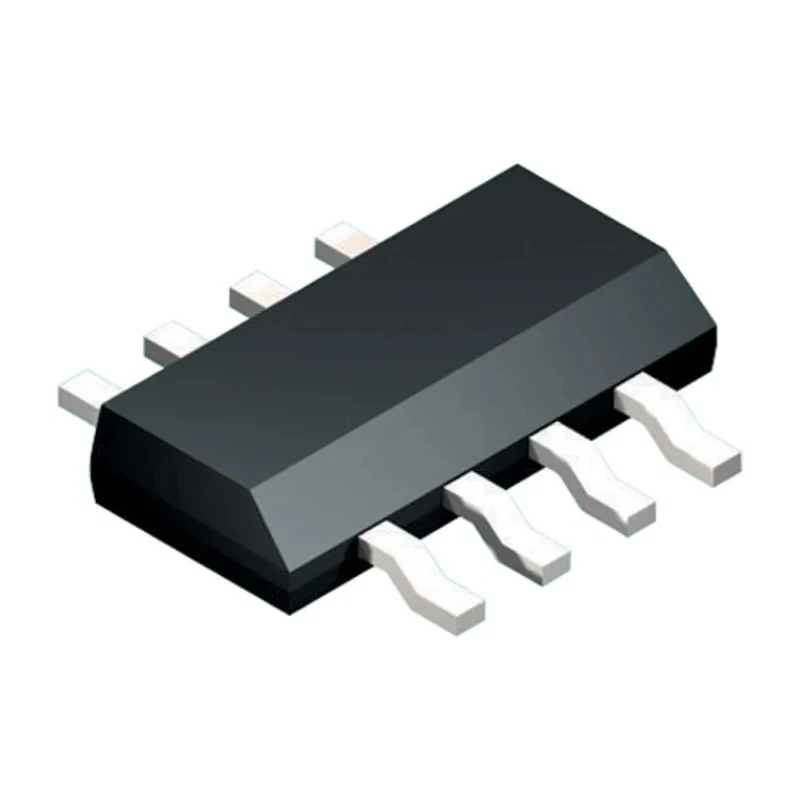

Texas Instruments Monostable Multivibrator LVC 32 mA 8-Pin SN74LVC1G123DCTR

Texas Instruments SN74LVC1G123DCTR is a single element monostable multivibrator IC optimized for low-voltage CMOS logic circuits. It operates efficiently over a supply voltage range of 1.65 V to 5.5 V, making it ideal for modern digital applications requiring precise pulse generation.

This device is housed in an 8-pin surface mount package with a compact form factor featuring dimensions of 3.15 mm length and 1.2 mm height, facilitating integration into compact circuit designs.

The IC features a minimum pulse width of 2.5 ns and a maximum propagation delay of 8 ns under typical operating conditions, enabling high-speed pulse timing applications in communications, industrial control, and embedded systems.

It provides robust output drive capability with maximum high and low level output currents of ±32 mA and maintains low quiescent current consumption of 20 μA, contributing to energy-efficient circuit designs.

Operating temperature range extends from -40°C to 125°C, allowing for reliable performance in harsh industrial and automotive environments. The component is compatible with input LVTTL/TTL logic levels and outputs LVCMOS signals, ensuring versatile interfacing with various logic systems.

This Monostable Multivibrator also features enhanced latch-up immunity exceeding 100 mA following JESD 78 Class II standards, ensuring resilience against transient electrical disturbances.

Operates over a wide voltage range of 1.65 V to 5.5 V. Surface mount 8-pin package for compact circuit assembly. Low quiescent current of 20 μA for power-efficient operation. Minimum pulse width of 2.5 ns for high-speed timing.

Wide temperature range from -40°C to 125°C. Input compatible with LVTTL/TTL; output LVCMOS logic levels. Maximum propagation delay of 8 ns at specified load capacitance. Output current capability of ±32 mA supports driving loads.

Latch-up performance exceeds 100 mA per JESD standards.

This device is suited for industrial automation, communication systems, and embedded electronic applications requiring precision timing and monostable pulse generation. Explore a broad portfolio of semiconductor and logic ICs at EnvMart for your design and manufacturing needs.
