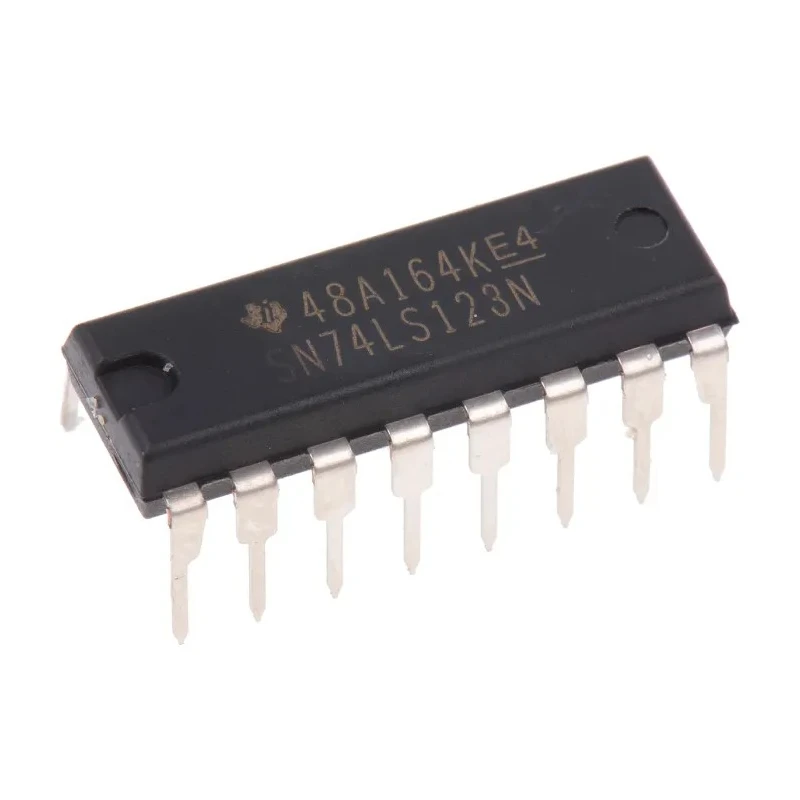

Texas Instruments 2-Element LS Logic Family Monostable Multivibrator 8mA Output 16-Pin PDIP SN74LS123N

Texas Instruments SN74LS123N is a precision dual monostable multivibrator integrated circuit from the 74LS family of low power Schottky (LS) logic devices. This 16-pin PDIP package device incorporates two identical monostable multivibrator elements, designed for applications needing precise timing and pulse generation.

Operating at a supply voltage between 4.75V and 5.25V with a quiescent current maximum of 12mA, this IC supports maximum low level output current up to 8mA and high level output current of -0.4mA. It guarantees minimum pulse widths of 40 nanoseconds and propagation delays at 56 nanoseconds under certain load conditions, making it suitable for fast digital timing applications.

The device features through-hole mount type technology, with a compact form factor of 4.57mm height and 19.3mm length, facilitating integration into various electronic circuits and assemblies. It is engineered to operate in industrial temperature ranges from 0°C to 70°C, ensuring reliable performance in diverse environments.

The SN74LS123N is widely used in industrial electronic equipment, laboratory instruments, and manufacturing process controllers where accurate and stable timed pulses are mandatory. It benefits from bipolar junction technology with Schottky diode clamping, providing faster switching speeds and lower power dissipation compared to traditional TTL devices.

This product lacks specific certifications and automotive standards but is compliant with standard industrial specifications for logic ICs. The monostable multivibrator functions are essential for timing circuits, pulse delay generation, pulse width modulation, and timing control in electronic systems.

The IC integrates two monostable multivibrator elements per chip for dual pulse generation. Low power consumption design suitable for energy-sensitive electronic applications. Robustness over standard industrial temperature ranges.

Compact packaging supports easy circuit board layout and prototyping. Compatible with a broad range of industrial and electronic measurement devices. Explore the full range of semiconductor Monostable Multivibrators in the Electronics & Electricals category at EnvMart for diverse industrial and laboratory application needs.
