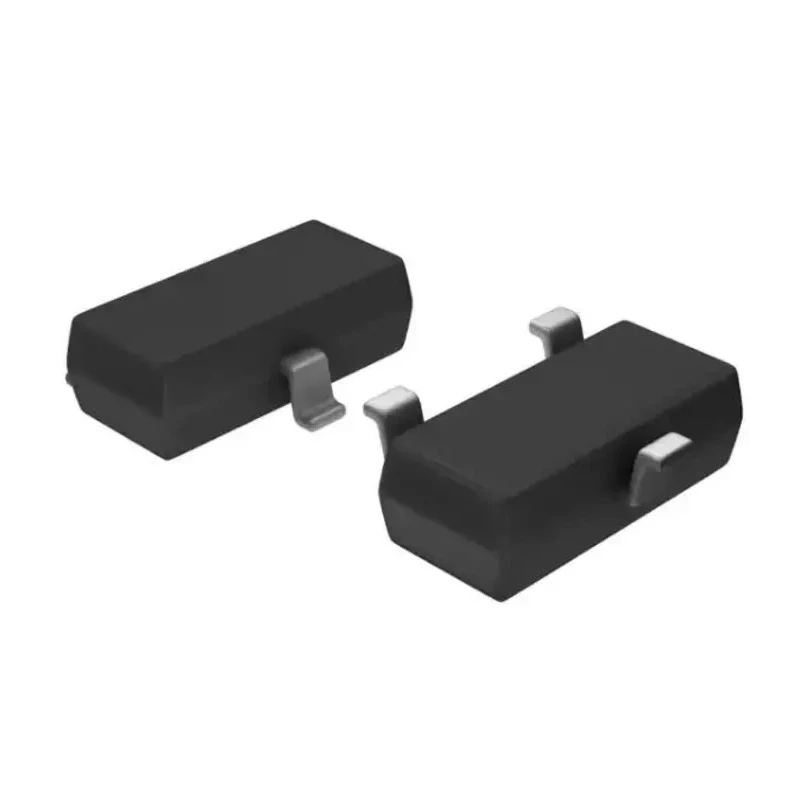

STMicroelectronics 40 V 300 mA Schottky Barrier Schottky Diode Surface Mount SOT-23 BAT54FILMY

The STMicroelectronics BAT54FILMY is a Schottky Barrier Diode packaged in SOT-23 format designed for efficient and reliable performance in discrete semiconductor applications. It supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 40 V, making it suitable for automotive and other demanding electronic uses where fast switching and low losses are critical.

This diode is AEC-Q101 qualified, demonstrating compliance with automotive industry standards for quality and durability under harsh operating conditions. Its low forward voltage drop of 900 mV allows for minimized conduction losses resulting in enhanced energy efficiency.

The device operates reliably in a wide temperature range, from -40°C up to 150°C, which supports diverse industrial, automotive, and commercial applications. It features extremely fast switching characteristics with negligible forward and reverse recovery times, ideal for high-frequency rectification.

Designed as a surface mount component with a compact SOT-23 package, the BAT54FILMY allows for space-saving assembly on printed circuit boards. Its low capacitance maintains signal integrity in high-speed electronic circuits.

The diode also complies with RoHS standards, contributing to environmentally-safe electronic product design. Applications include power management, switching power supplies, freewheeling diodes in motor control, and general-purpose switching and rectifier roles in automotive electronics and other electronic devices.

Low conduction and reverse losses for optimized energy efficiency. Automotive grade AEC-Q101 qualification for robust reliability. Extremely fast switching with negligible recovery times. Surface mount device design in compact SOT-23 packaging.

Wide operating temperature range of -40°C to 150°C for versatile use. RoHS compliant for environmental safety. Low capacitance ideal for high-speed electronic circuits. Supports automotive and commercial electronic applications.

Designed for efficient power management and switching uses.
