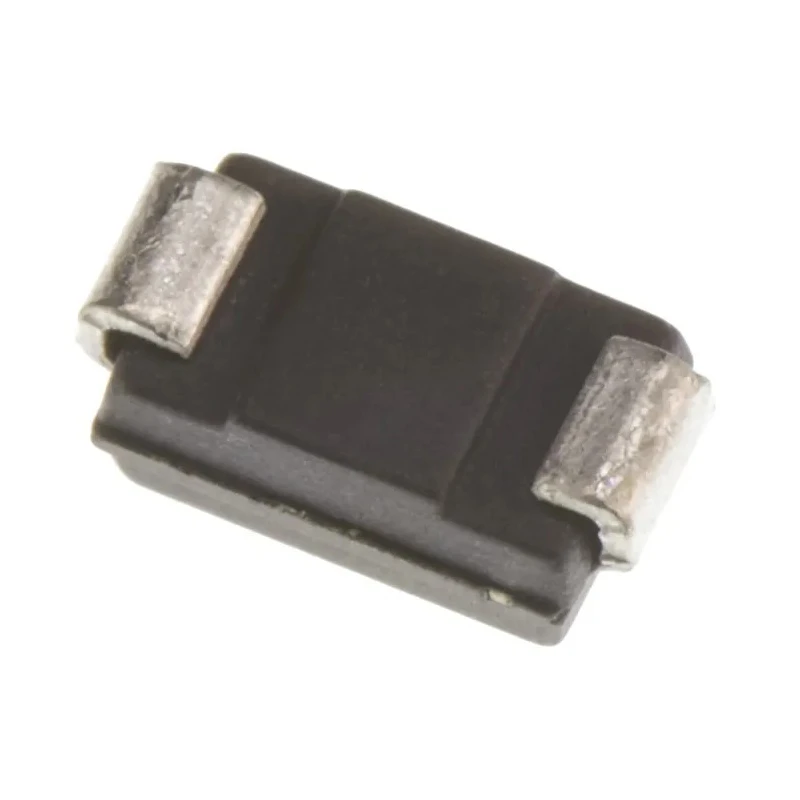

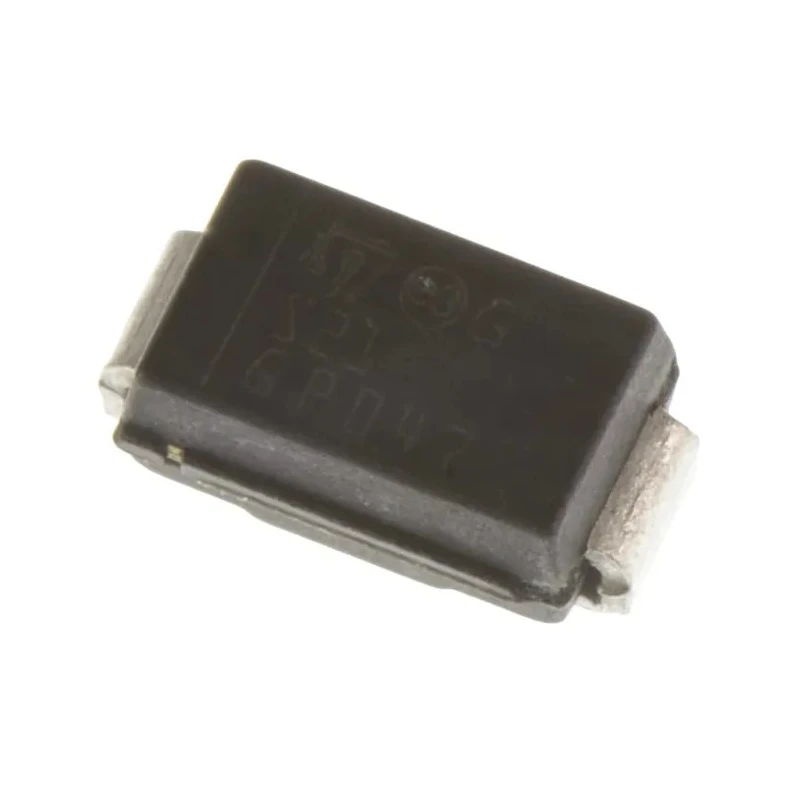

STMicroelectronics Schottky Barrier Diode 2 Pin Surface Mount DO-214AC 100 V 2 A STPS2H100A

STMicroelectronics STPS2H100A is a high-performance Schottky Barrier Diode designed to handle continuous forward currents up to 2 amperes with a peak reverse repetitive voltage of 100 volts. Packaged in a compact DO-214AC 2-pin surface mount case, it is ideal for applications requiring efficient power rectification and low forward voltage drop.

The diode exhibits a maximum forward voltage of 650 millivolts, contributing to reduced power losses and improved energy efficiency in electronic circuits. It can withstand peak non-repetitive forward surge currents of 75 amperes, providing robustness during transient overload conditions.

With an operating temperature range from -65°C up to 175°C, the STPS2H100A diode is suitable for use in industrial, consumer electronics, and power supply systems exposed to severe environmental conditions. Its compact dimensions allow it to fit into space-constrained designs, enhancing overall device integration.

This Schottky diode is surface mount type, facilitating automated PCB assembly and is formed as a single diode configuration with two pins. Although it does not hold specific automotive standards certification, it fulfills broad semiconductor diode requirements for construction, manufacturing, power electronics, and instrumentation industries.

Features a 2-pin surface mount DO-214AC package suitable for compact circuit designs. Supports maximum continuous forward current of 2 amperes for robust performance. Has a peak reverse repetitive voltage rating of 100 volts ensuring high-voltage durability.

Low maximum forward voltage drop of 650 millivolts allows energy-efficient operation. Supports a high peak non-repetitive forward surge current of up to 75 amperes. Operating temperature range from -65°C to 175°C suitable for harsh industrial environments.

Compact physical dimensions: length 4.6 mm, width 2.95 mm, height 2.03 mm optimizing board space. Suitable for industrial automation, power supply rectification, manufacturing electronics, and laboratory equipment. Explore more semiconductor components and Schottky diode options in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
