| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 1.8mm |
| Model | NSR0170HT1G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | NSR0170H |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | -25 |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100mA |
| Maximum Forward Voltage Vf | 560mV |
| Nexperia 70 V 70 mA Diode Schottky 2-Pin SOD-323 1PS76SB70,115Brand | Nexperia |

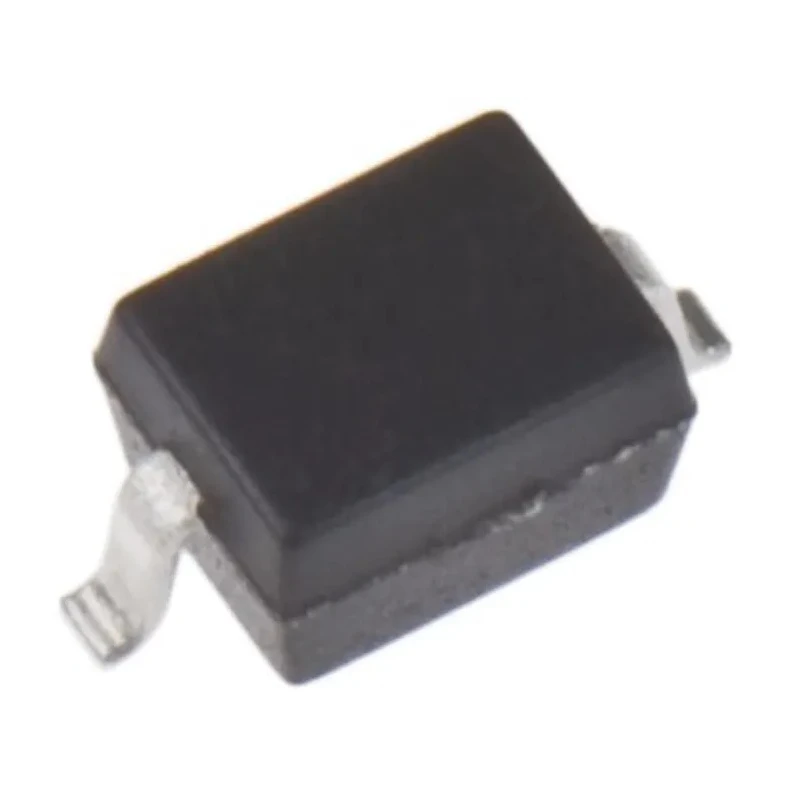

onsemi NSR0170HT1G Schottky Barrier Diode is designed for surface mount applications where space efficiency and high performance are essential. This diode features a peak reverse voltage of 70 V and can continuously conduct up to 70 A of forward current. Packaged in a compact SOD-323 footprint measuring 1.8 mm length, 1.35 mm width, and 1 mm height, it suits modern compact electronic assemblies.
The diode exhibits a very low forward voltage drop of 560 mV at 10 mA, minimizing power losses and enhancing energy efficiency. It maintains a low leakage current of 25 nA at 50 V, contributing to reduced standby power consumption in sensitive circuits.
This component is certified to meet the AEC-Q101 automotive quality standard, making it reliable for demanding automotive electronic control units (ECUs) and modules. Its operating temperature range from -55°C to 150°C makes it suitable for harsh environments and automotive-grade applications.
Its high switching speed and minimal junction capacitance of 2 pF optimize performance in switching and protection circuits, making it ideal for DC-DC converters, reverse voltage protection, and clamp circuits in portable devices such as mobile handsets and digital cameras.
Compact SOD-323 surface mount package. 70 V peak reverse voltage capability. 70 A maximum continuous forward current rating. Low forward voltage drop of 560 mV at test current. Low leakage current of 25 nA at 50 V. Wide temperature operation from -55°C to 150°C.
Compliance with RoHS and Pb-Free standards. Automotive-grade AEC-Q101 certification.
This diode is well-suited for industrial electronic designs, including automotive modules, manufacturing equipment, power supplies, and consumer electronics requiring efficient rectification and protection solutions. It is a reliable component for construction of advanced semiconductor circuits requiring durability and high performance.
Explore more Schottky Barrier Diodes and electronic semiconductors in this category for your PCB and electronic manufacturing needs on EnvMart.
