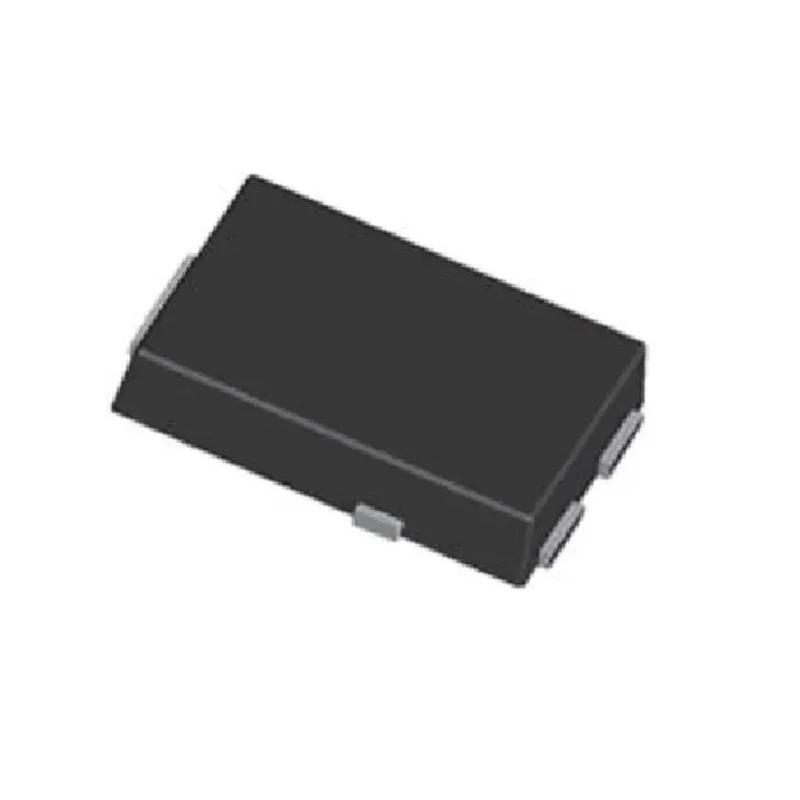

Vishay 150 V 12 A Schottky Barrier Schottky Rectifier Surface Mount TO-252 Package V12PM153HM3/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 150 V 12 A Schottky Barrier Schottky Rectifier Surface Mount TO-252 Package V12PM153HM3/H

Name: Vishay 150 V 12 A Schottky Barrier Schottky Rectifier Surface Mount TO-252 Package V12PM153HM3/H
Brand: Vishay
SKU: 406078
Price: 0.6 USD
Availability: InStock



Category Schottky Barrier Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	V12PM153HM3/H
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	12A
Peak Reverse Repetitive Voltage Vrrm	150V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	0.62V

Key Features

Surface mounting type for automated PCB placement.
TO-252 package with trench MOS barrier Schottky technology.
Low forward voltage drop of 0.62 V for efficient operation.
Operates in temperatures from -65°C to 150°C for robust performance.
Peak non-repetitive surge current rating of 200 A.
Meets RoHS compliance and automotive AEC-Q101 standards.
Designed for use in low voltage, high frequency DC/DC converters and polarity protection.
Very low profile with a height of approximately 1.3 mm.

Product Description

Vishay V12PM153HM3/H is a Schottky barrier rectifier designed for high current density surface-mount applications. It features a peak reverse voltage of 150 V and supports a maximum continuous forward current of 12 A, making it ideal for efficient power management in electronic circuits.

This rectifier is packaged in a TO-252 surface mount package that facilitates automated PCB placement and ensures low power losses due to its low forward voltage drop of 0.62 V. Operating temperature ranges from -65°C to 150°C, allowing for reliable use in harsh industrial and automotive environments.

The device supports a peak non-repetitive forward surge current of 200 A, enabling it to handle sudden high current demands safely. It complies with RoHS environmental standards and meets automotive AEC-Q101 qualification, underscoring its robustness for automotive and industrial electronics applications.

Typical applications include use as freewheeling diodes, DC/DC converter rectifiers, and polarity protection components in industrial machines, power supplies, automotive electronics, and commercial electronic equipment.

Surface mounting ensures compatibility with modern automated assembly lines. Schottky barrier design results in low forward voltage and efficient switching. Robust thermal performance supports extended durability. Complies with stringent automotive and environmental standards.

Compact TO-252 packaging aids in space-saving on PCBs. Suitable for industrial, laboratory, automotive, and commercial electronics sectors. The package contains one Vishay V12PM153HM3/H Schottky Barrier Schottky Rectifier in TO-252 format, ready for direct PCB mounting.
