| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1.02mm |
| Model | PESD18VF1BLYL |
| Width | 0.62mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 19V |
| Maximum Reverse Stand-off Voltage Vwm | 18V |
| Maximum Peak Pulse Current Ippm | 1A |
| Maximum Reverse Leakage Current | 30nA |

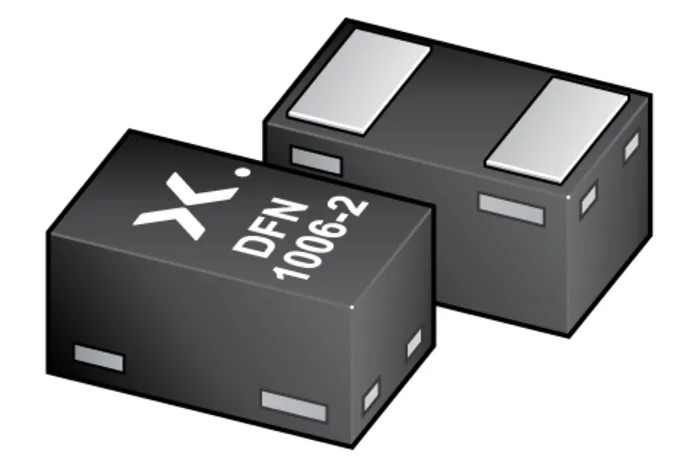

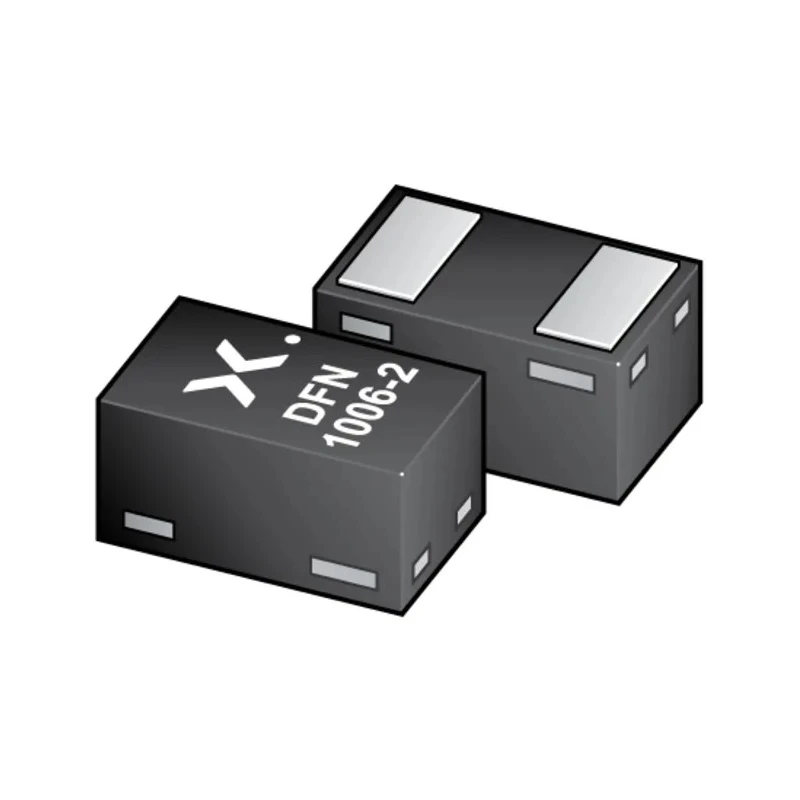

The Nexperia PESD18VF1BLYL is a 2-element bi-directional Electrostatic Discharge (ESD) protection diode housed in a compact 2-pin DFN surface mount package. It provides ultra-low capacitance of 0.35 pF, making it ideal for safeguarding high-speed data and signal lines from damage caused by ESD and transient voltage events.
Featuring a maximum reverse stand-off voltage of 18 V and a clamping voltage of 17 V, this diode effectively protects electronic circuits against voltage spikes. The peak pulse current rating of 1 ampere ensures robust transient suppression capabilities.
The small footprint package dimensions of 1.02 mm length, 0.62 mm width, and 0.47 mm height enable dense PCB layout designs in modern electronic devices. Operating temperature ranges from -55°C to 150°C guarantee reliable operation in industrial and automotive environments.
The device is fully AEC-Q101 qualified, meeting stringent automotive quality standards, and is certified for ESD protection up to ±10 kV according to IEC 61000-4-2 Level 4. This makes it suitable for automotive, telecommunications, computing, and consumer electronics applications requiring robust ESD and transient interference mitigation.
Typical use cases include protecting NFC antennas, data lines, and interfaces in industrial, automotive, and consumer electronic products. The diode's ultra-low capacitance and voltage dependency enhance signal integrity in sensitive electronic environments.
Package includes 1 Pc Nexperia PESD18VF1BLYL 2-Element Bi-Directional ESD Protection Diode, 2-Pin DFN surface mount device. Explore more semiconductor and ESD protection components at EnvMart for comprehensive solutions in electronic circuit protection.
