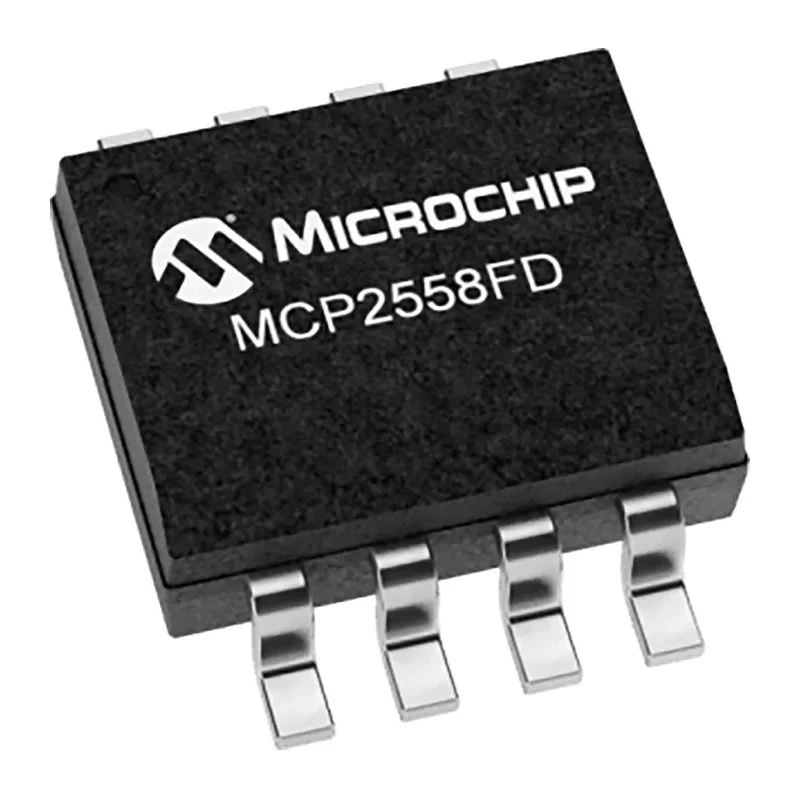

Microchip CAN Transceiver 8 Mbps, 8-Pin SOIC MCP2558FD-H/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP2558FD-H/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP2558FD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOIC |
| Sub Type | CAN Transceiver |
| Minimum Operating Temperature | -40°C |
| Interface Type | CAN |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 70mA |
| Maximum Data Rate | 8Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports both Classic CAN and CAN Flexible Data Rate applications.
- Optimized for CAN FD operation at 2, 5, and 8 Mbps speeds.
- Includes Silent Mode to prevent disruption on the CAN network due to local faults.
- Features built-in protection against short-circuit conditions and voltage brown-out.
- Operates with supply voltage from 4.5V to 5.5V with a typical supply current of 70 mA.
- Designed for automotive applications meeting AEC-Q100 standards.
- Compact 8-pin SOIC surface mount package with dimensions 4.9 mm by 3.9 mm by 1.5 mm.
- Wide operating temperature range from -40°C to 150°C for harsh environments.
Product Description
Microchip MCP2558FD-H/SN is a robust CAN transceiver designed for high-speed data communication up to 8 Mbps in automotive and industrial applications. It is supplied in a compact 8-pin SOIC surface mount package ideal for space-constrained PCB layouts.
The device supports Classic CAN and CAN Flexible Data Rate (FD) protocols, optimized for flexible data rates of 2, 5, and 8 Mbps. Its Silent Mode functionality allows the node to be connected without disturbing the network, enhancing system reliability by preventing disruption due to local faults.
Designed to operate within a supply voltage range of 4.5V to 5.5V, it maintains a supply current of approximately 70 mA. The transceiver is capable of withstanding automotive temperature extremes from -40°C to 150°C and complies with the automotive standard AEC-Q100, ensuring suitability for harsh automotive environments.
Additional protection features include power-on reset, voltage brown-out protection, and robust short-circuit protection against both positive and negative battery voltages. The CAN bus pins disconnect automatically when the device is unpowered, which prevents unnecessary bus loading during power-down or brown-out events.
Its VIO supply pin allows direct interface with CAN controllers and microcontrollers across a wide input/output voltage range from 1.7V to 5.5V, facilitating seamless integration in various system designs. Detection of ground faults through permanent dominant detection on the TXD line and CAN bus further enhances network stability.
Supports Classic CAN and CAN FD applications with flexible data rates. Silent Mode for nondisruptive network connection. Automotive grade AEC-Q100 compliant. Built-in short-circuit, brown-out, and power-on reset protections.
Wide supply voltage and temperature operating ranges. Automatic bus disconnection when unpowered. Compact 8-pin SOIC surface mount package. Ground fault detection to improve system reliability.
This CAN transceiver is widely used in automotive, industrial automation, and machine control systems requiring reliable, high-speed CAN communication. Explore the full range of Microchip CAN Interface ICs for advanced embedded networking solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 8 Mbps, optimized for both Classic CAN and CAN Flexible Data Rate applications.
It operates with a supply voltage range from 4.5V to 5.5V.
The typical supply current for this unit is approximately 70 mA.
This model comes in a compact 8-pin SOIC package with dimensions of 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
It is designed to operate within a wide temperature range of -40°C to 150°C, suitable for harsh environments.
Yes, it includes built-in protection against short-circuit conditions and voltage brown-out, as well as power-on reset functionality.
The MCP2558FD-H/SN complies with the AEC-Q100 automotive standard, ensuring its suitability for automotive applications.
Yes, it features permanent dominant detection on the TXD line and CAN bus for ground fault detection, enhancing network stability.
This unit uses surface mounting, making it ideal for space-constrained PCB layouts.
The interface type for this transceiver is CAN, allowing for reliable high-speed communication.
This model includes one transceiver per package.
It is widely used in automotive, industrial automation, and machine control systems that require reliable CAN communication.
