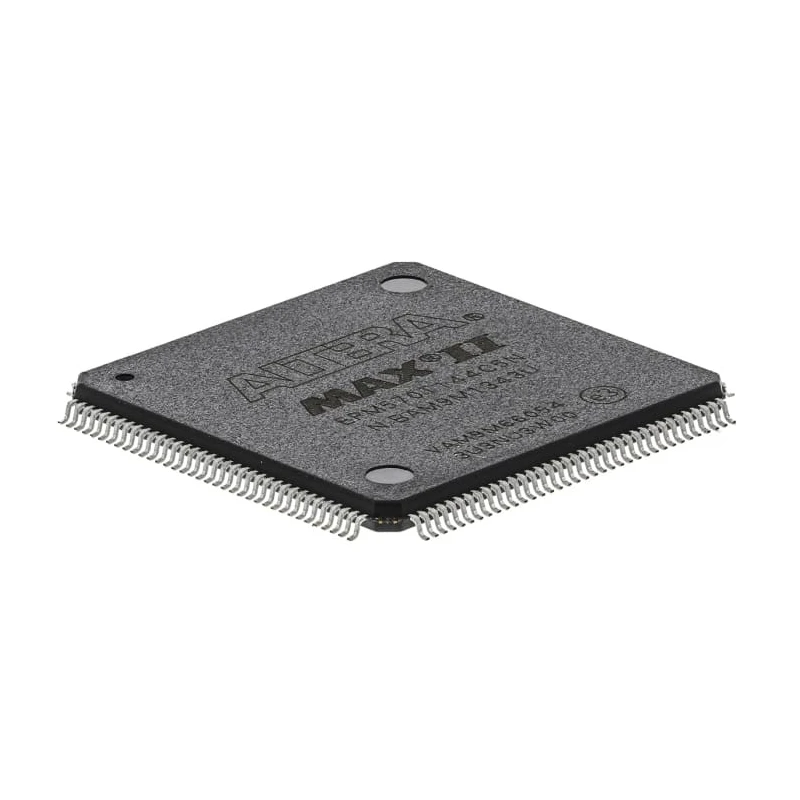

Altera Complex Programmable Logic Device MAX II 440 Cells, 116 I/O, 7.1 ns, 57 Labs, In System Programmability EPM570T144C5N

Altera EPM570T144C5N Complex Programmable Logic Device MAX II model is a high-performance device featuring 440 macro cells, 116 user I/Os, and 57 logic blocks designed to optimize complex logic operations. The device supports in system programmability, providing engineers with the ability to reprogram the device while in the application system.

Operating within supply voltages ranging from 2.38 V to 3.6 V, it maintains a maximum operating frequency of 304 MHz, facilitating rapid signal processing in a compact 144-pin TQFP surface mount package measuring 20 mm in length and 1.4 mm in height.

The device operates effectively across a temperature range of 0°C to 85°C, making it suitable for various industrial, electronic, and embedded system applications where reliability is critical. Its individual output enable control adds further flexibility for circuit design.

This CPLD complies with RoHS standards, ensuring environmentally friendly manufacturing and usage. It is ideal for use in electronic components manufacturing, digital systems, embedded devices, and various engineering projects requiring programmable logic integration.

Supports in system programmability for flexible deployment. Operates with a minimum supply voltage of 2.38 V and maximum of 3.6 V. Maximum operating frequency is 304 MHz, suitable for high-speed applications. Available in a 144-pin TQFP package with surface mount type.

Operating temperature range from 0°C to 85°C ensures reliability in various environments. Includes 57 logic blocks/elements enabling complex logic implementations. Individual output enable control enhances signal management.

Compliant with RoHS standards for environmental safety.

This programmable logic device is commonly used in industrial automation, electronic circuit design, embedded systems development, and research laboratories requiring reliable and configurable logic devices. Explore more advanced semiconductor products and Programmable Logic ICs in the EnvMart catalog to meet diverse engineering needs.
