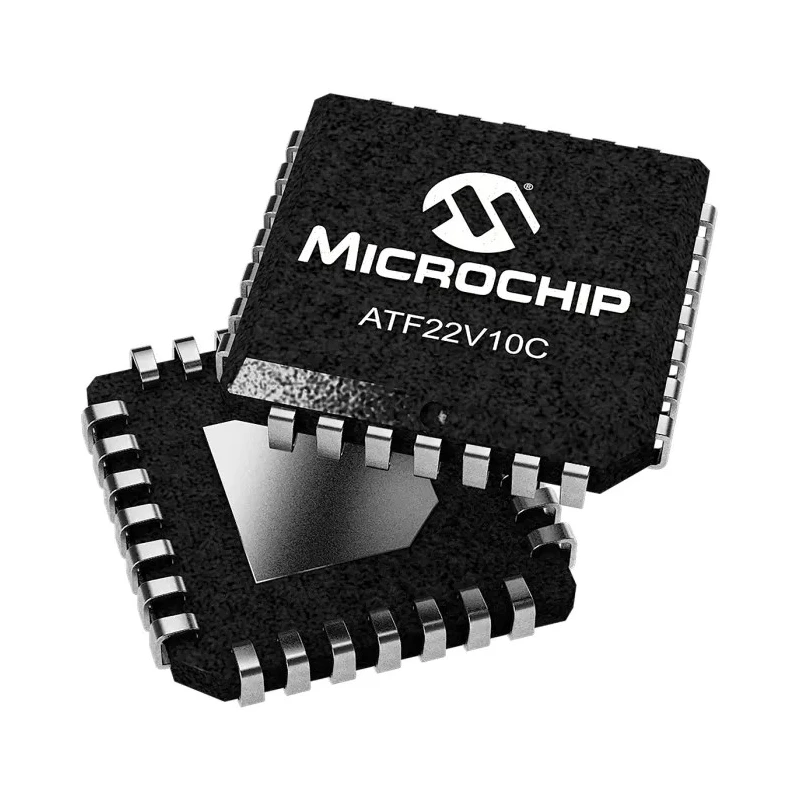

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz Surface Mount PLCC Package ATF22V10C

Free Delivery in India | Lowest Global Shipping Charges

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz Surface Mount PLCC Package ATF22V10C

Name: Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz Surface Mount PLCC Package ATF22V10C
Brand: Microchip
SKU: 390315
Price: 3.33 USD
Availability: InStock



Category Programmable Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.06mm
Length	11.58mm
Model	ATF22V10C
Mount Type	Surface
Series	ATF22V10C
Maximum Operating Temperature	85°C
Package Type	PLCC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	28
Maximum Supply Voltage	5V
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time	15ns
Number of Gates	350
Number of Macro Cells	10
Number of User I/Os	10
Maximum Internal Frequency	83.3MHz

Key Features

High-performance programmable logic device with in-system programmability.
Supports re-programmability for flexible design adjustments.
Surface mount PLCC package with 28 pins for compact integration.
Operates with supply voltage from 4.5V to 5V for stable operation.
Wide operating temperature range from -40°C to 85°C for reliability.
Low propagation delay time of 15ns enables fast signal processing.
RoHS compliant ensuring environmentally friendly manufacturing standards.
Compact size with 11.58mm length and 4.06mm height suitable for dense circuit boards.

Product Description

Microchip ATF22V10C is a Simple Programmable Logic Device tailored for high-reliability, low-power applications in electronic automation and control systems. Featuring 350 gates, 10 macro cells, and 10 user input/output pins, it operates at a maximum internal frequency of 83.3 MHz with in-system programmability and re-programmability capabilities supporting rapid development cycles.

This device comes in a 28-pin PLCC surface-mount package, facilitating space-saving designs in embedded electronics. It requires a supply voltage ranging from 4.5 to 5 volts and maintains robust performance across a temperature range of -40°C to 85°C, making it suitable for industrial, automotive (non-automotive certified), and laboratory electronic environments where precision and durability are critical.

The ATF22V10C’s 15 ns maximum propagation delay ensures timely logic operations, enhancing system responsiveness in applications such as programmable controllers, digital communication circuits, and embedded logic modules.

This unit adheres to RoHS standards, reflecting commitment to environmentally responsible manufacturing. Its compact dimensions of 11.58mm length and 4.06mm height support integration into complex printed circuit boards while minimizing footprint.

In-system programmable and reprogrammable to accommodate design evolution. Surface mount PLCC package for efficient board layout. Wide voltage and temperature operating ranges for diverse conditions. Low propagation delay supports high-speed logic operations.

RoHS compliant ensuring low environmental impact. Compact form factor fits dense electronic assemblies. Ideal for industrial automation, electronics manufacturing, telecommunications, and embedded system applications requiring reliable programmable logic control.
