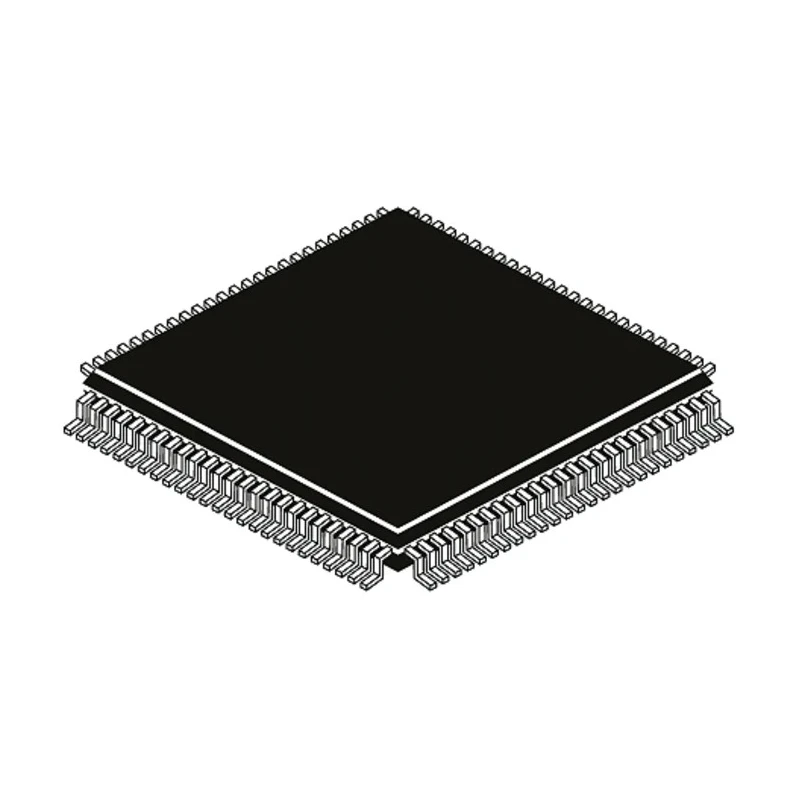

Altera Complex Programmable Logic Device MAX V Series 128 Macro Cells, 79 I/O, 7.9 ns Propagation Delay, 160 5M160ZT100C4N

Altera 5M160ZT100C4N is a Complex Programmable Logic Device (CPLD) from the MAX V series, designed for high efficiency and flexibility in electronic systems. This device integrates 128 macro cells and 160 logic blocks, offering extensive logic implementation capabilities, complemented by 79 user input/output pins. It is suited for a variety of industrial, commercial, and communications applications requiring programmable logic solutions.

This CPLD features in system programmability which allows designers to update the device logic without removing it from the system, enhancing development efficiency and flexibility in production environments.

With a compact 100-pin Thin Quad Flat Package (TQFP) and surface mount mounting type, it facilitates easy PCB assembly while minimizing board space usage. The device operates reliably over a broad operating temperature range of 0°C to 85°C, making it suitable for diverse climate conditions encountered in industrial and commercial settings.

The device boasts a maximum propagation delay of 7.9 nanoseconds, enabling fast switching times critical for timing-sensitive applications. Operating voltage is tightly regulated between the minimum 1.71 V and maximum 1.89 V supply, contributing to low power consumption and device longevity. It also includes features such as individual output enable control and internal oscillator for enhanced performance management.

Altera's MAX V CPLD architecture provides an instant-on configuration time of 0.5 milliseconds or less, along with standby currents as low as 25 microamps, resulting in energy-efficient operation. The device complies with RoHS standards, assuring environmental safety and regulatory compliance.

Supports in system programmability for hardware flexibility. Maximum propagation delay time of 7.9 ns ensures rapid response. Compact 100-pin TQFP package suitable for high-density board layouts. Low supply voltage range from 1.71 V to 1.89 V with low power consumption.

Wide operating temperature range (0°C to 85°C) for diverse environments. 160 logic blocks and 128 macro cells for complex logic functions. Individual output enable control enhances signal management. Max operating frequency up to 152 MHz for robust performance.

Environmental compliance with RoHS certification.

This programmable logic device is ideal for use in industrial controls, telecommunications, instrumentation, manufacturing automation, and similar electronic design applications. Its versatility and efficient performance characteristics make it a strong candidate for integration in complex embedded systems requiring dependable programmable logic resources.
