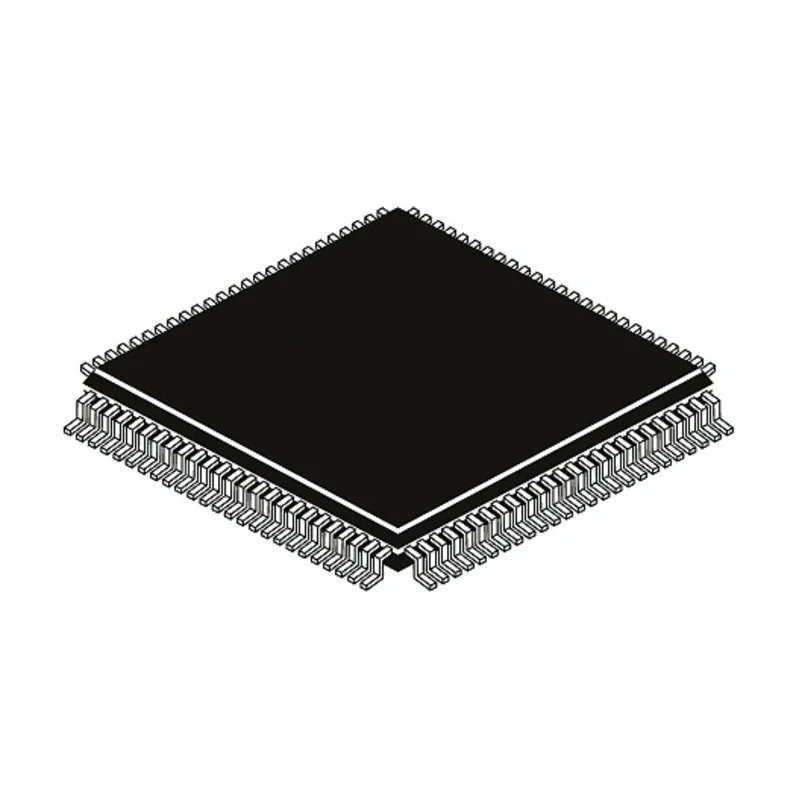

Altera Complex Programmable Logic Device MAX V 192 Macro Cells, 79 I/O, 7.9 ns Propagation Delay, 240 Logic 5M240ZT100C4N

Altera 5M240ZT100C4N is a Complex Programmable Logic Device (CPLD) of the MAX V series designed for robust and efficient digital logic implementation in industrial, electronic component, and semiconductor applications. Featuring 192 macro cells and 240 logic elements, it provides a balance of high complexity and compact size in a TQFP 100-pin package.

This CPLD supports in-system programmability allowing designers to update logic configurations without removal from the circuit board, enhancing flexibility in design evolution.

With a maximum propagation delay time of 7.9 nanoseconds and operating frequency up to 152 MHz, the device achieves high-speed performance crucial for timing-sensitive applications. The device operates across a supply voltage from 1.71V to 1.89V and functions reliably within a temperature range of 0°C to 85°C, making it suitable for demanding industrial environments.

Additional features include an internal oscillator for timing control, individual output enable control for precise logic gating, and low-power standby modes with power-down and reset capabilities for energy efficiency.

The device meets RoHS directives ensuring environmentally safe manufacture and disposal. Its compact physical dimensions (16 mm length, 1 mm height) allow space-efficient PCB layouts in electronic assemblies.

High integration with 192 macro cells and 240 logic elements. In-system programmable and re-programmable architecture for flexible use. Low standby current and fast power cycling enhance energy efficiency. Wide operating temperature and low voltage operation ensure reliable functionality.

Compliant with RoHS for environmental standards.

This CPLD is ideal for applications in electronics manufacturing, industrial automation systems, semiconductor devices, and embedded systems requiring configurable logic solutions.
