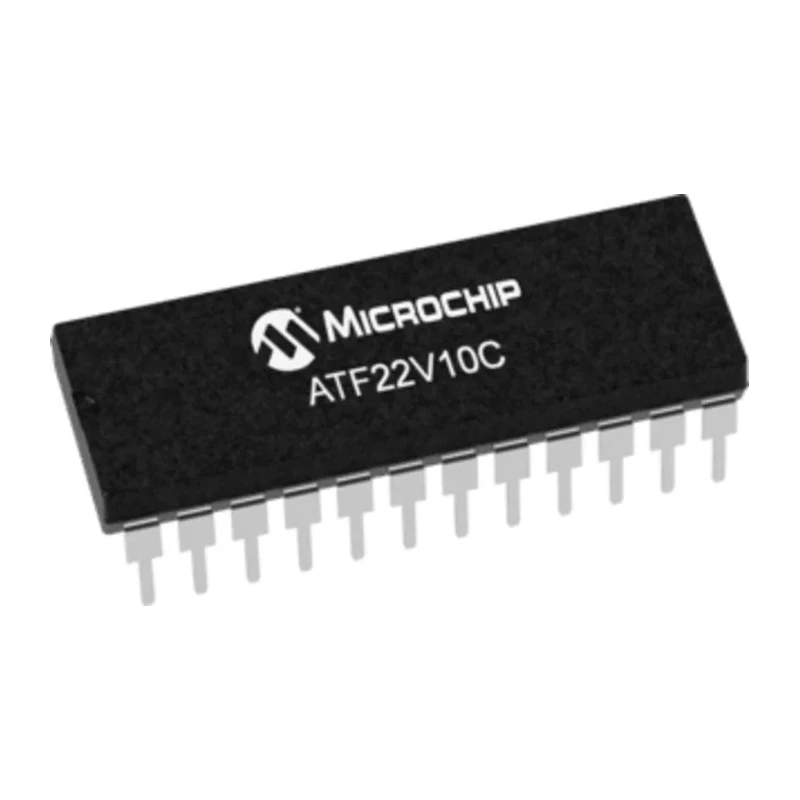

Microchip Simple Programmable Logic Device ATF22V10C-10PU 500 Gates, 10 Macro Cells, 22 I/O, 125 MHz, PDIP Package
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 32.13mm |
| Model | ATF22V10C-10PU |
| Mount Type | Surface |
| Series | ATF22V10C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 5ns |
| Number of Gates | 500 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 22 |
| Maximum Internal Frequency | 125MHz |
Key Features
- Operates within a voltage range of 4.5V to 5.5V for flexibility.
- Features a PDIP package with 24 pins for easy mounting.
- Provides a maximum propagation delay time of 5 nanoseconds for high-speed operation.
- Supports in-system reprogrammability for versatile application updates.
- Operates reliably over a temperature range of -40°C to 85°C for industrial use.
- Built with CMOS technology featuring low power consumption and high reliability.
- Includes advanced electrically erasable programmable logic with 20-year data retention.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Microchip ATF22V10C-10PU simple programmable logic device features a high-performance CMOS architecture with electrically erasable flash memory. It supports speeds down to 25ns and operates over a broad voltage range (3.0V to 5.5V), suitable for industrial and commercial temperature environments.
This device is designed for low power consumption with typical standby power of 5µA, making it well-suited for battery-powered systems. The 10 macro cells and 22 user I/O pins enable complex programmable logic functions, while the PDIP 24-pin package allows easy surface mounting.
Applications include industrial automation, electronic circuit design, and embedded systems requiring reliable programmable logic with in-system reprogramming capabilities. The device is CMOS and TTL compatible, supporting a maximum internal frequency of 125 MHz and a maximum propagation delay of 5ns, ensuring fast logic processing.
The product complies with RoHS directives and is built to maintain 100% tested high-reliability CMOS process standards, including 20-year data retention and 2,000V ESD protection for enhanced durability in demanding environments.
Operating voltage range from 4.5V to 5.5V enabling low-voltage operation. In-system programmability and re-programmability features allowing updates without device removal. Industrial operating temperature range from -40°C to 85°C.
Advanced latch feature holds inputs to previous logic states for signal integrity. High-level electrostatic discharge (2000V) and latchup immunity protection. Low standby current of approximately 5µA supports energy-efficient designs.
RoHS compliant ensuring safe use in environmentally regulated applications. Surface mount PDIP package type with 24 pins for quick integration.
Microchip products are widely trusted for their reliability and are suitable for diverse industrial, laboratory, and commercial embedded systems requiring programmable logic devices. Explore our selection to find compatible components for your next project.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum internal frequency of 125 MHz, allowing for fast logic processing in various applications.
It operates within a voltage range of 4.5V to 5.5V, providing flexibility for different applications.
The ATF22V10C-10PU features 22 user I/O pins, enabling complex programmable logic functions.
It has a maximum propagation delay time of 5 nanoseconds, ensuring high-speed operation.
The dimensions of this unit are 32.13 mm in length and 4.95 mm in height.
This device operates reliably over a temperature range of -40°C to 85°C, suitable for industrial applications.
It comes in a PDIP package type with 24 pins, facilitating easy surface mounting.
Yes, it supports in-system programmability and re-programmability, allowing updates without removing the device.
The typical standby current is approximately 5µA, which supports energy-efficient designs.
Yes, it complies with RoHS standards, ensuring safe use in environmentally regulated applications.
The ATF22V10C-10PU features 10 macro cells, allowing for complex programmable logic functions.
This model is built with CMOS technology, which features low power consumption and high reliability.
