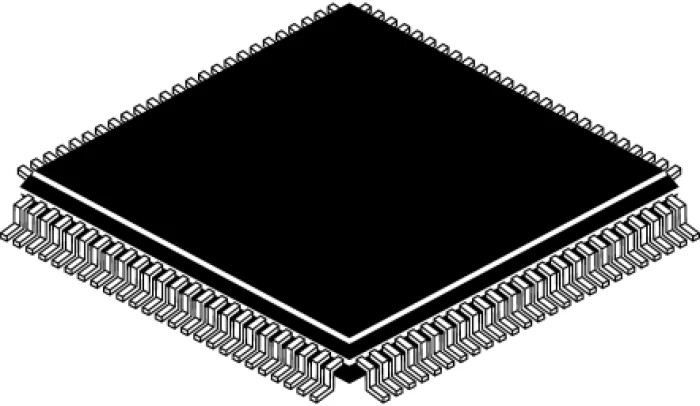

Altera Complex Programmable Logic Device MAX V Series 440 Macro Cells 570 Logic Elements 74 I/O 9 ns 5M570ZT100C5N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Altera |
| Height | 1.05mm |
| Length | 14mm |
| Model | 5M570ZT100C5N |
| Mount Type | Surface |
| Series | MAX V |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 100 |
| Maximum Supply Voltage | 1.89V |
| Minimum Supply Voltage | 1.71V |
| Maximum Propagation Delay Time | 9ns |
| Maximum Operating Frequency | 152MHz |
| Number of Macro Cells | 440 |
| Number of User I/Os | 74 |
| Number of Logic Blocks/Elements | 570 |
Key Features
- This device supports in-system programmability for flexible reconfiguration.
- It features a surface mount type with a TQFP package and 100 pins.
- Operates within a supply voltage range of 1.71V to 1.89V ensuring low power consumption.
- Designed with individual output enable control to optimize signal flow.
- Suitable for industrial temperature ranges from 0°C to 85°C.
- Complies with RoHS standards for environmental safety.
- Provides high-speed operation with a maximum frequency of 152 MHz.
Product Description
Altera 5M570ZT100C5N is a Complex Programmable Logic Device (CPLD) from the MAX V series, designed to deliver high performance with 440 macro cells and 570 logic elements. Featuring 74 user inputs/outputs, this device offers a maximum propagation delay of 9 nanoseconds and operates at frequencies up to 152 MHz. Its surface mount TQFP package provides 100 pins in a compact 1.05mm height and 14mm length form factor.
This CPLD supports in-system programmability and re-programmability, allowing for flexible and efficient design iterations and updates. Its individual output enable control enhances signal management for complex logic operations. Operating voltage ranges between 1.71V and 1.89V ensure optimal power usage, making it suitable for a variety of industrial and electronic applications.
The device is RoHS compliant, reflecting adherence to important environmental standards. It is engineered to operate across a temperature range of 0°C to 85°C, making it reliable for use in commercial and industrial environments. The Altera 5M570ZT100C5N is well suited for integration into systems requiring sophisticated logic control, including computing, telecommunications, and embedded system designs.
This device supports in-system programmability for flexible reconfiguration. It features a surface mount type with a TQFP package and 100 pins. Operates within a supply voltage range of 1.71V to 1.89V ensuring low power consumption.
Designed with individual output enable control to optimize signal flow. Suitable for industrial temperature ranges from 0°C to 85°C. Complies with RoHS standards for environmental safety. Provides high-speed operation with a maximum frequency of 152 MHz.
This CPLD is ideal for sophisticated programmable logic applications in industrial, telecommunications, and computing sectors, offering reliable performance and programming flexibility. Choose the Altera 5M570ZT100C5N MAX V series device for your high-frequency logic design projects at EnvMart.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 152 MHz.
It operates within a supply voltage range of 1.71V to 1.89V.
This device features 570 logic elements.
The maximum propagation delay time is 9 nanoseconds.
It has 74 user inputs/outputs.
The TQFP package has a height of 1.05 mm and a length of 14 mm.
This model is suitable for operating temperatures ranging from 0°C to 85°C.
Yes, it complies with RoHS standards for environmental safety.
It features a surface mount type.
This device contains 440 macro cells.
The country of origin for this model is India.
Individual output enable control optimizes signal flow for complex logic operations.
