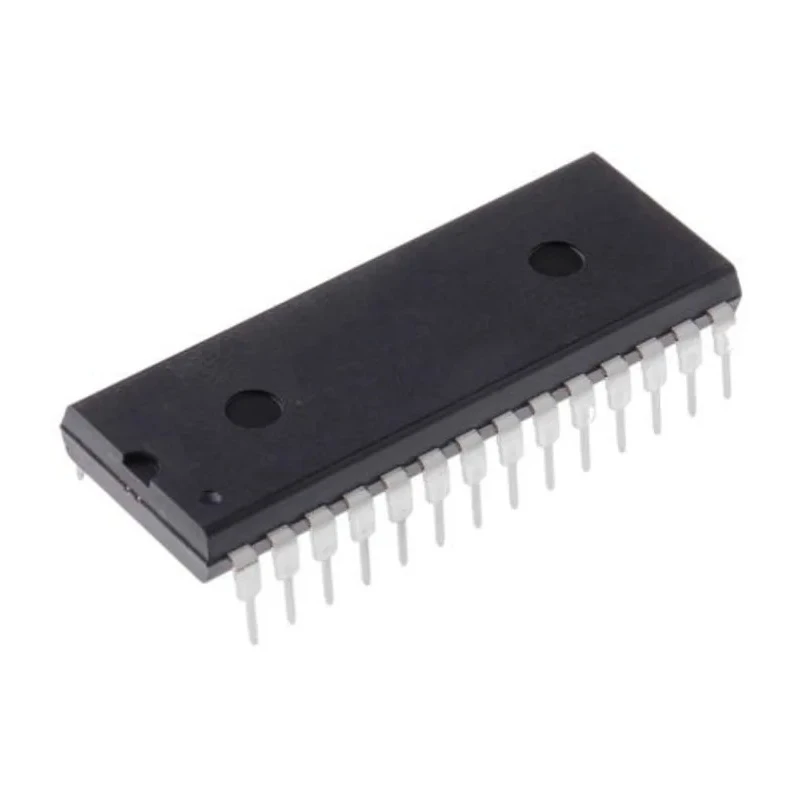

Maxim Integrated 15-bit Multi-Slope Integration ADC, 1.6 SPS, 28-Pin DIP MAX135CPI+

Maxim Integrated MAX135CPI+ is a high-precision 15-bit analogue to digital converter (ADC) employing a multi-slope integration method that achieves high resolution and accuracy at a sampling rate of 1.6 samples per second. Designed in a compact 28-pin dual in-line package (DIP), it supports through-hole mounting making it ideal for diverse PCB assembly requirements.

This ADC offers exceptional 15µV resolution at 16 conversions per second and delivers ultra-low noise performance even when operating at supply voltages as low as 300 millivolts and up to 5 volts. Its power-efficient design features a maximum supply current of 125 microamps during normal use and 10 microamps in sleep mode, making it suitable for battery-operated instruments.

With an 8-bit parallel data interface, the MAX135CPI+ facilitates seamless integration with microcontrollers and digital systems. It exhibits excellent accuracy of ±0.005% at the nominal sampling rate and possesses an extremely low input leakage current of ±10 picoamps, enhancing measurement fidelity for sensitive analog signals.

The device is engineered for industrial and laboratory applications requiring accurate analog signal measurements such as pressure, flow, temperature, voltage, current, resistance, and weight sensing. Built to operate reliably from 0 to 70 degrees Celsius, it supports robust operation in various environmental conditions.

Multi-slope integration ADC with 15-bit resolution. 16 conversions per second sampling rate for steady measurement. Low supply current extends battery life in portable equipment. 8-bit parallel interface ensures straightforward control and data acquisition.

Wide operating voltage from 0.3 to 5 volts enables flexible power configurations. Extremely low input leakage current for precise analog measurements. Compact 28-pin DIP package for easy PCB assembly. Designed for diverse applications including industrial, laboratory, and control systems.

Operating temperature from 0 to 70°C for reliable performance.

This Maxim Integrated ADC model MAX135CPI+ combines precision, efficiency, and convenience, making it an excellent choice for semiconductor data conversion needs. Explore more products in the Analogue to Digital Converter category on EnvMart for a broader selection of semiconductor components and solutions.
