Microchip CAN Transceiver 1 Mbps 8-Pin SOIC MCP2561-E/SN

Free Delivery in India | Lowest Global Shipping Charges

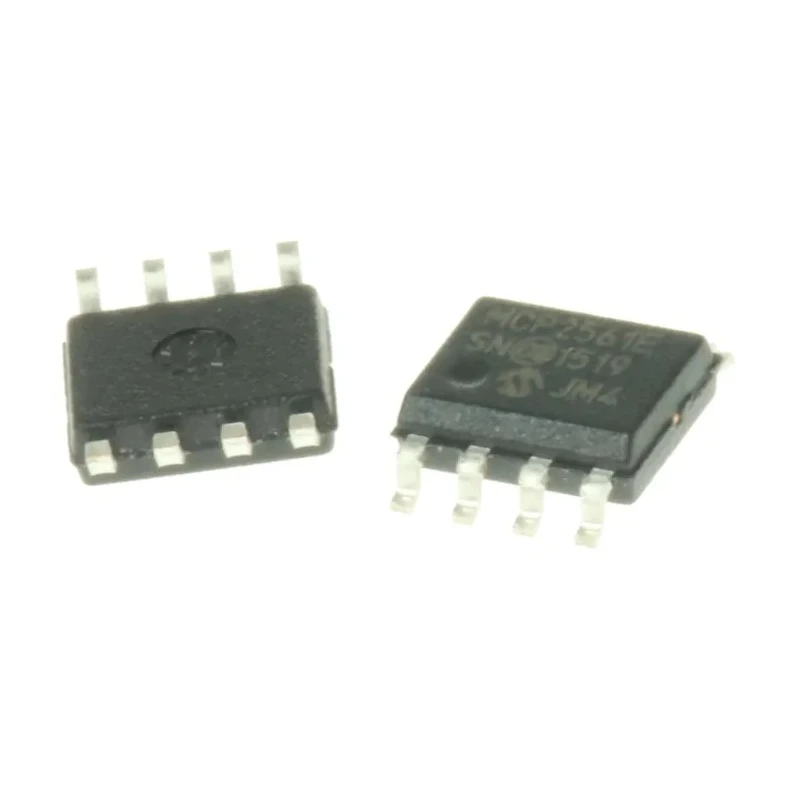

Microchip CAN Transceiver 1 Mbps 8-Pin SOIC MCP2561-E/SN

Name: Microchip CAN Transceiver 1 Mbps 8-Pin SOIC MCP2561-E/SN
Brand: Microchip
SKU: 385361
Price: 1.42 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.5mm
Length	4.9mm
Model	MCP2561-E/SN
Width	3.9mm
Mount Type	Surface
Series	MCP2561
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	CAN Transceiver
Minimum Operating Temperature	-40°C
Interface Type	IEC 61000-4-2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	70mA
Maximum Data Rate	1Mbps
Number of Transceivers	1
Microchip MCP2561FD-E/SN, CAN Transceiver 8 Mbps, 8-Pin SOICBrand	Microchip

Key Features

Supports maximum data rate of 1 Mbps for efficient data transmission.
Single transceiver enables reliable CAN network interfacing.
Operates with supply voltage range of 4.5 V to 5.5 V.
Standby power down mode minimizes current consumption to 70 mA.
Compact 8-pin SOIC surface mount package with dimensions 4.9mm x 3.9mm x 1.5mm.
Wide operating temperature range from -40°C to 150°C for harsh environments.
Incorporates ESD protection compliant with IEC 61000-4-2 standards.
RoHS compliant semiconductor meeting environmental and safety standards.

Product Description

Microchip MCP2561-E/SN is a 1 Mbps CAN transceiver designed in an 8-pin SOIC surface mount package. It supports Controller Area Network bus communication with a single transceiver interface. The device operates from a supply voltage between 4.5 V and 5.5 V and features a low power standby mode consuming 70 mA supply current. Its ESD protection meets IEC 61000-4-2 standards, ensuring device reliability against electrostatic discharge.

This transceiver is engineered for use in industrial and automotive environments due to its extended operating temperature range from -40°C to 150°C. The compact size (4.9 mm length, 3.9 mm width, and 1.5 mm height) enables space-efficient PCB designs while maintaining optimal performance.

Microchip MCP2561 series is RoHS compliant, facilitating environmentally conscious manufacturing. This device is well-suited for applications requiring a robust interface to CAN bus networks, including automotive systems, industrial automation, and embedded communication.

Supports a maximum data rate of 1 Mbps. Single CAN transceiver in 8-pin SOIC package. Supply voltage range from 4.5 V to 5.5 V. Low current standby mode at 70 mA supply current. Wide temperature range (-40°C to 150°C) for harsh environments.

ESD protection compliant with IEC 61000-4-2. Compact dimensions of 4.9 mm length, 3.9 mm width, 1.5 mm height. RoHS compliant semiconductors.

This transceiver is ideal for industrial, automotive, and embedded CAN network applications requiring reliable high-speed data communication. Explore EnvMart's range of semiconductor interface ICs for optimized design solutions.
