Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 24 V, 1.9 A, PESD2CANFD24U-QCZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 24 V, 1.9 A, PESD2CANFD24U-QCZ

Name: Nexperia Bi-Directional ESD Protection Diode 3-Pin DFN1412D-3, 24 V, 1.9 A, PESD2CANFD24U-QCZ
Brand: Nexperia
SKU: 405486
Price: 0.14 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.2mm
Length	1.4mm
Model	PESD2CANFD24U-QCZ
Width	0.48mm
Mount Type	Surface
Series	PESD2CANFD24U-QB
Maximum Operating Temperature	150°C
Package Type	DFN1412D-3
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, IEC 61000-4-2
Pin Count	3
Clamping Voltage VC	43V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	25.5V
Maximum Reverse Stand-off Voltage Vwm	24V
Maximum Peak Pulse Current Ippm	1.9A
Maximum Reverse Leakage Current	50nA

Key Features

The device operates with a maximum reverse stand-off voltage of 24 volts.
It provides ESD protection up to 15 kV according to IEC 61000-4-2 standard.
Low clamping voltage of 43 volts at peak pulse current ensures effective protection.
Capacitance is minimized to 3.5 pF, suitable for high-speed data lines.
Automotive grade AEC-Q101 qualification guarantees reliability under harsh conditions.
Operating temperature range spans from -65°C to 150°C for robust performance.
Its surface mount DFN1412D-3 package features side wettable flanks for enhanced solderability.

Product Description

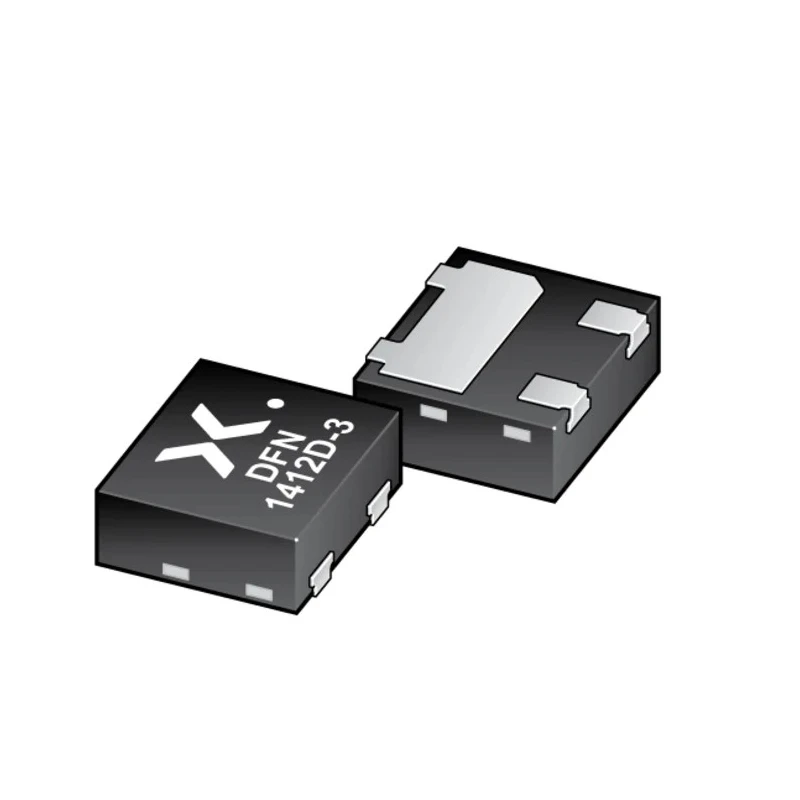

Nexperia PESD2CANFD24U-QCZ Bi-Directional ESD Protection Diode, model PESD2CANFD24U-QCZ, is a high-performance device designed for safeguarding two automotive network bus lines against electrostatic discharge. Packaged in an ultra-small 3-pin DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD), it offers compact integration suitable for modern automotive electronics.

This ESD Protection Diode ensures a maximum reverse stand-off voltage of 24 V, while efficiently clamping voltage spikes at 43 V at the peak pulse current of 1.9 A. It provides ESD protection up to 15 kV complying with IEC 61000-4-2 and ISO 10605 standards. The device features an exceptionally low capacitance of 3.5 pF, making it ideal for high-speed data communication lines without signal degradation.

Built to withstand a wide operating temperature range from -65°C up to 150°C, this diode is qualified according to the stringent automotive standard AEC-Q101, assuring high reliability and durability in harsh vehicle environments. Its small footprint dimensions (1.4 mm length, 0.48 mm width, and 1.2 mm height) with side wettable flanks facilitate effective mounting and inspection in automated assembly processes.

The diode supports automotive applications demanding robust electrostatic discharge defenses for sensitive electronic systems. Typical uses include protecting in-vehicle network interfaces, control units, and communication buses found in modern automotive electronics, and other industrial environments where transient voltage suppression is critical.

The diode is RoHS compliant and meets IEC 61000-4-2 ESD protection standards. Low leakage current of 50 nA enhances energy efficiency during idle phases. Series PESD2CANFD24U-QB offers consistent performance within automotive electronic designs.

The device's compact form factor saves board space without compromising protection. Highly suitable for industrial, automotive, and communication system protection applications. Explore a broad range of semiconductors and discrete components in the Electronics & Electricals category for your industrial and manufacturing needs at EnvMart.
