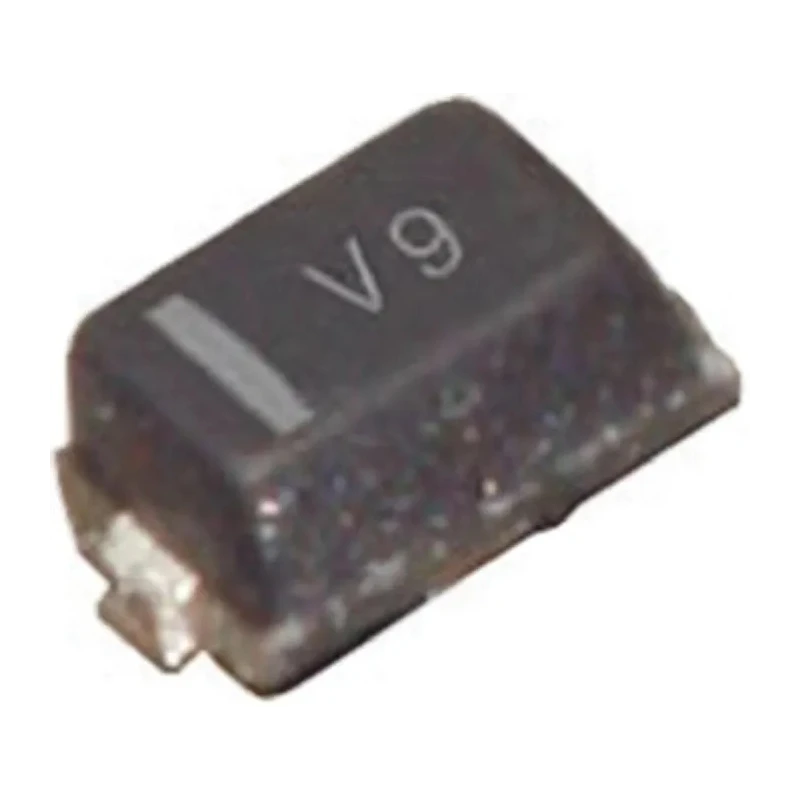

onsemi 70 V 70 mA Surface Mount Schottky Barrier Diode SOD-923 NSR0170P2T5G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 70 V 70 mA Surface Mount Schottky Barrier Diode SOD-923 NSR0170P2T5G

Name: onsemi 70 V 70 mA Surface Mount Schottky Barrier Diode SOD-923 NSR0170P2T5G
Brand: onsemi
SKU: 373529
Price: 0.07 USD
Availability: InStock



Category Schottky Barrier Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.41mm
Length	0.85mm
Model	NSR0170P2T5G
Width	0.65mm
Mount Type	Surface
Series	NSR0170P2
Maximum Operating Temperature	150°C
Package Type	SOD-923
Minimum Operating Temperature	-55°C
Standards/Approvals	Pb-Free
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	70mA
Peak Reverse Repetitive Voltage Vrrm	70V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	3μA
Maximum Forward Voltage Vf	730mV
Nexperia 70 V 70 mA Diode Schottky 2-Pin SOD-882Brand	Nexperia

Key Features

Maximum continuous forward current is 70 mA.
Peak reverse repetitive voltage rating is 70 V.
Maximum forward voltage drop of 730 mV improves efficiency.
Compact SOD-923 package with dimensions 0.85 mm length, 0.65 mm width, and 0.41 mm height.
Operating temperature range from -55°C to 150°C ensures reliable performance.
Automotive grade AEC-Q101 qualified for demanding applications.
Lead-free and RoHS compliant epoxy molded case.
Low leakage current with peak reverse current of 3 µA.

Product Description

onsemi NSR0170P2T5G is a high-performance Schottky Barrier Diode designed for surface mount applications, featuring a low forward voltage and low reverse leakage current suitable for efficient power rectification.

This diode supports a maximum continuous forward current of 70 mA and can withstand peak reverse repetitive voltages up to 70 V, making it ideal for low-voltage, high-frequency switching power supplies, polarity protection, and freewheeling circuits.

Constructed in a compact SOD-923 surface mount package with dimensions of 0.85 mm length, 0.65 mm width, and 0.41 mm height, it facilitates miniaturized circuit designs while maintaining thermal stability across a wide operating temperature range from -55°C to 150°C.

The device is encapsulated in a lead-free, epoxy molded case, promoting environmental compliance with RoHS standards. The low forward voltage drop of 730 mV reduces power loss and improves efficiency in battery-powered and other sensitive applications.

Certified to the automotive AEC-Q101 standard, this diode guarantees performance and reliability in automotive electronic systems. Its low peak reverse current of 3 µA further ensures minimal leakage, enhancing overall circuit protection and longevity.

Maximum continuous forward current of 70 mA provides robust conduction. Peak reverse repetitive voltage rating of 70 V supports significant voltage tolerance. Compact SOD-923 surface mount package for space-saving PCB layouts.

Wide operating temperature range from -55°C to 150°C for harsh environments. Lead-free, Pb-free compliant epoxy molded case meets environmental standards. Automotive AEC-Q101 qualification assures suitability for automotive applications.

Low forward voltage drop of 730 mV optimizes power conversion efficiency. Low reverse leakage current with peak 3 µA improves circuit reliability.

This Schottky diode is widely used in industrial, automotive, and consumer electronics for power switching and protection functions. Its small size and low-loss characteristics make it especially suitable for mobile, telecommunications, and computing hardware requiring efficient rectifiers and polarity protection devices.
